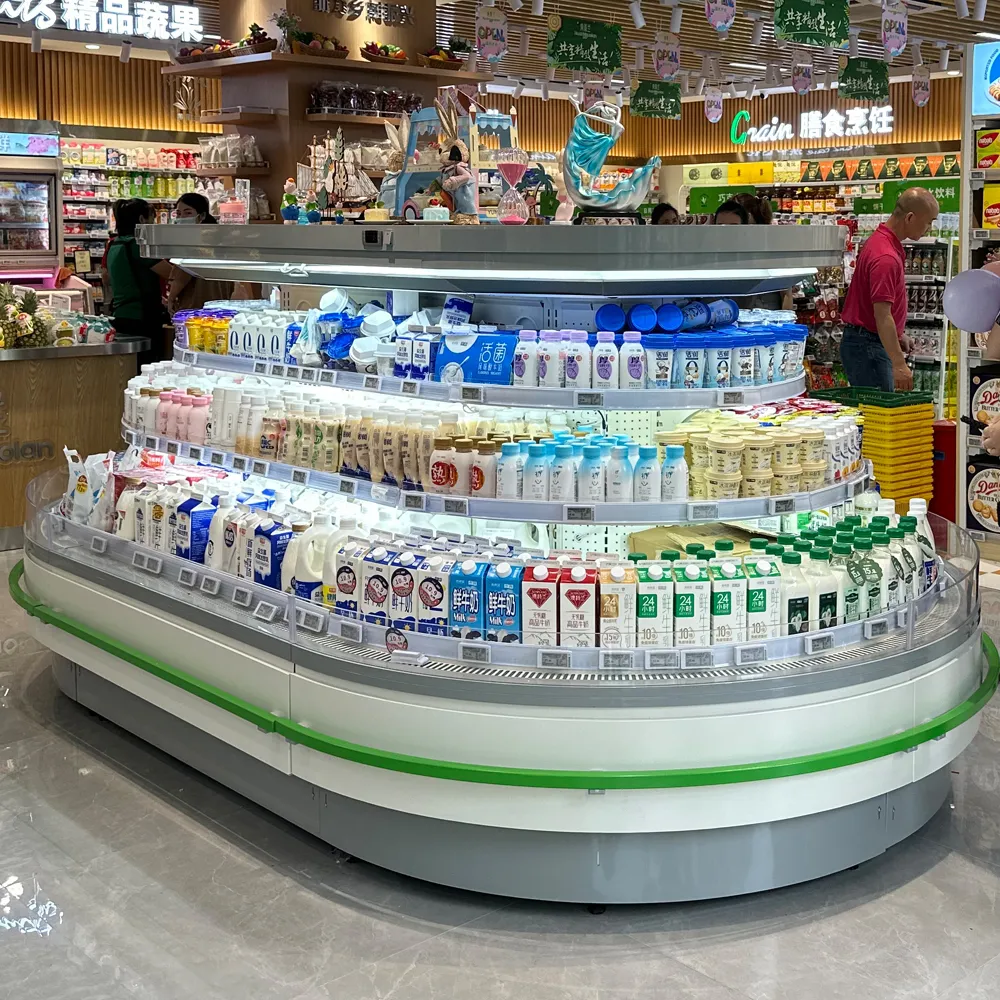

Remote Round Luxury Island Semi-high Multideck Open Chiller
Versatile Solutions for Various Fresh Food Categories
This chiller is suitable for display goods like: Beverages drinks, Sandwich food, Fruit, Ham sausage, Cheese, Milk, Vegetables and so on.
Multi Deck Display Chiller Brief Introduction
- Temperature Range 2~8 ℃
- Lower Base
- EBM Brand Fans
- Dixell Controller
- Bright LED Lighting
- Endless Spliced of Length
- Shelves Can be Adjusted
- Adjustable Leveling Legs
- Max Product Visibility
- Customizable Color Options
Products Details

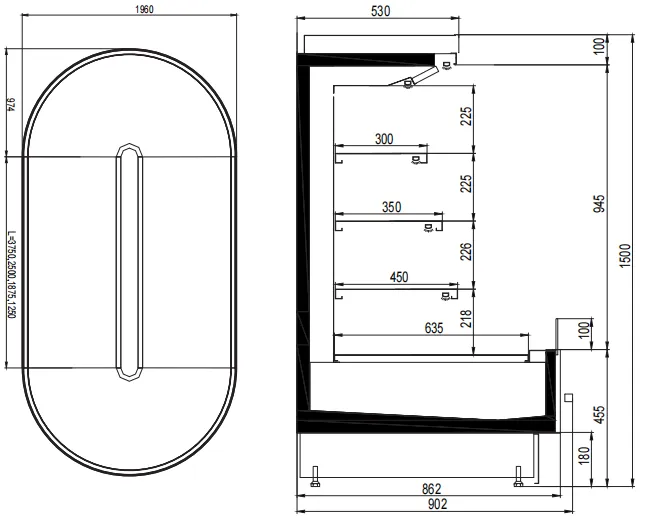

Parameter of Remote Round Luxury Island Semi-high Multideck Open Chiller
| Model | External Dimensions (mm) | Temperature Range(°C) | Effective Volume(L) | Display Area(M2) | Input power(W) | Refrigerant | |||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Height Armrest | ||||||
| XLC-R1309H | 1250 | 905 | 1500 | 455 | 2~8 | 450 | 1.83 | 160 | 1400 |
| XLC-R1909H | 1875 | 905 | 1500 | 455 | 2~8 | 670 | 2.35 | 230 | 2100 |
| XLC-R2509H | 2500 | 905 | 1500 | 455 | 2~8 | 900 | 2.86 | 340 | 2800 |
| XLC-R3809H | 3750 | 905 | 1500 | 455 | 2~8 | 1350 | 3.89 | 500 | 4200 |
| XLC-R180HMT 180° | 1960 | 975 | 1500 | 455 | 4~10 | 480 | 1.47 | 230 | 1800 |
| XLC-R90HMT 90° | 975 | 975 | 1500 | 455 | 4~10 | 240 | 1.04 | 120 | 1200 |
| XLC-R1309HE | 1250 | 905 | 1350 | 455 | 2~8 | 350 | 1.50 | 140 | 1200 |
| XLC-R1909HE | 1875 | 905 | 1350 | 455 | 2~8 | 520 | 1.92 | 210 | 1900 |
| XLC-R2509HE | 2500 | 905 | 1350 | 455 | 2~8 | 700 | 2.35 | 310 | 2500 |
| XLC-R3809HE | 3750 | 905 | 1350 | 455 | 2~8 | 1040 | 3.19 | 450 | 3800 |
| XLC-R180HEMT 180° | 1960 | 975 | 1350 | 455 | 4~10 | 440 | 1.20 | 210 | 1700 |
| XLC-R90HEMT 90° | 975 | 975 | 1350 | 455 | 4~10 | 220 | 0.85 | 110 | 1100 |
| End panel (side) | Thickness:40mm/side | ||||||||
Key Features of Remote Round Luxury Island Semi-high Multideck Open Chiller
Benefits
1.Operating environment class:25℃/60%R.H.
2.Working temperature from 2~8℃.
3.Increased product visibility with lower front.
4.Adopt high efficiency evaporation fan reduce energy.
5.Natural defrosting reduces energy consumption
Standard Features
1.Black&White exterior and interior color.
2.Shelves:300/350/450mm in depth.
3.Canopy and shelf LED lighting.
4.Transparent Air curtain.
5.CFC-free insulation.
6.SS304 square tube bumber.
Optional Features
1.Addtional shelving.
2.Stainless steel exterior&interior or choice of exterior&interior colors.
3.Optional solid end walls with inside mirror.
4.Optional heater for evaporator coil for high humidity environment.
5.Bottom atmosphere lamp.
Color Can Be Customized
Customizable exterior and interior colors available to perfectly match your brand’s aesthetic
Accessories
Squeeze Air Curtain
Effectively block the hot air outside
EBM Fan
Famous brand in the world, great quality
Dixell Temperature Controller
Automatic temperature adjustment
More Layers Shelves
Can display more products
Night Curtain
Keep the cooling and save energy
LED Lights
Save Energy
Danfoss Solenoid Valve
Control and regulation of fluids and gases
Danfoss Expansion Valve
Control the flow of refrigerant
Thickened Copper Tube
Conveying cooling to Chiller
Mirror Side Panel
Looks longer
Glass Side Panel
Transparent, looks brighter
Shelves Can be Adjusted
Suitable for all your needs

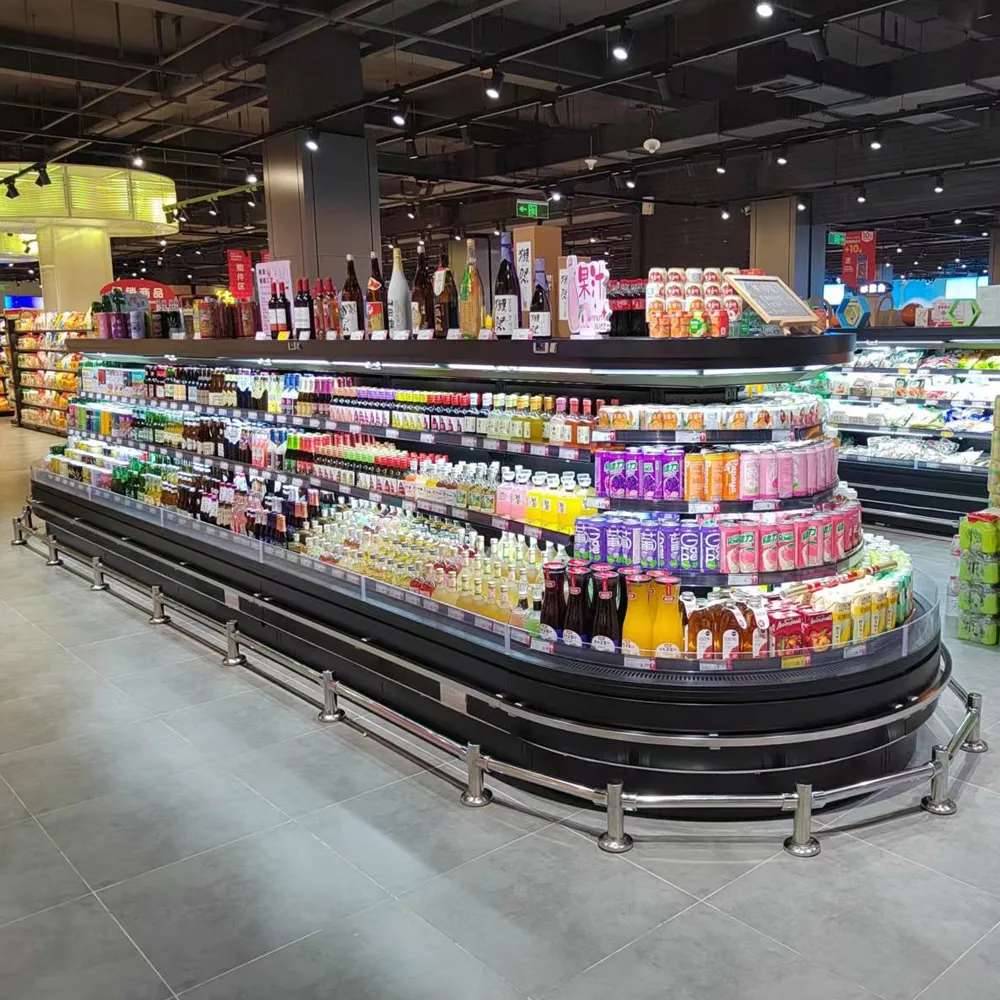

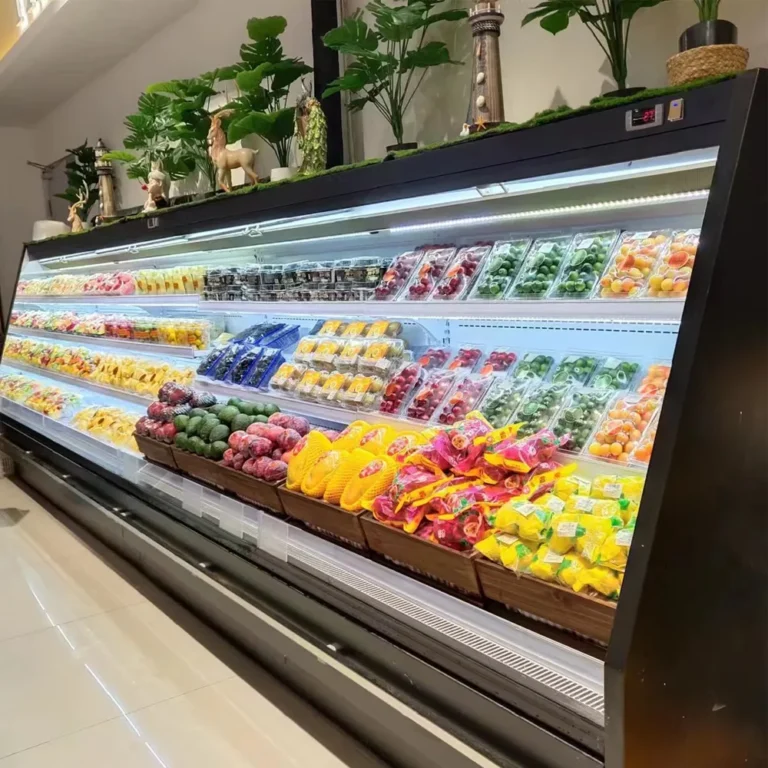

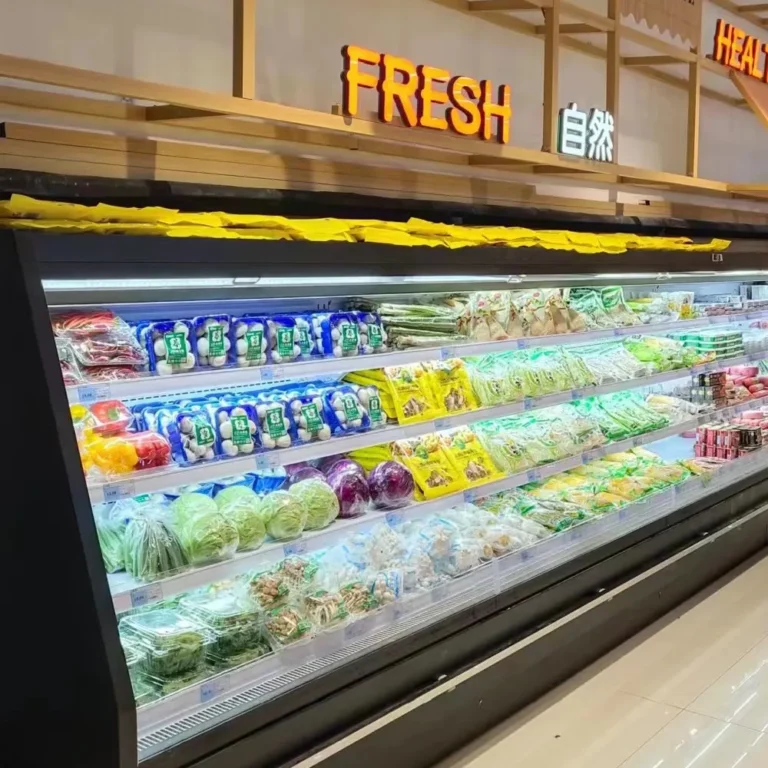

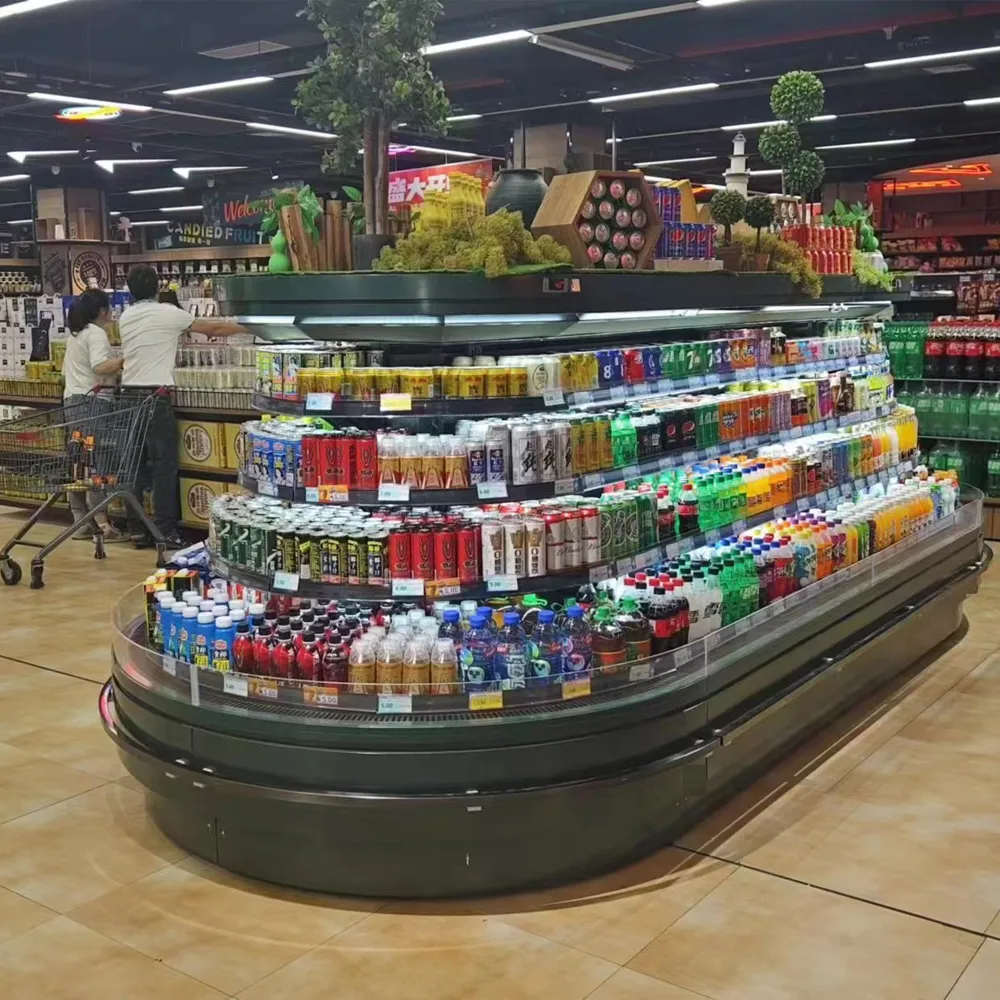

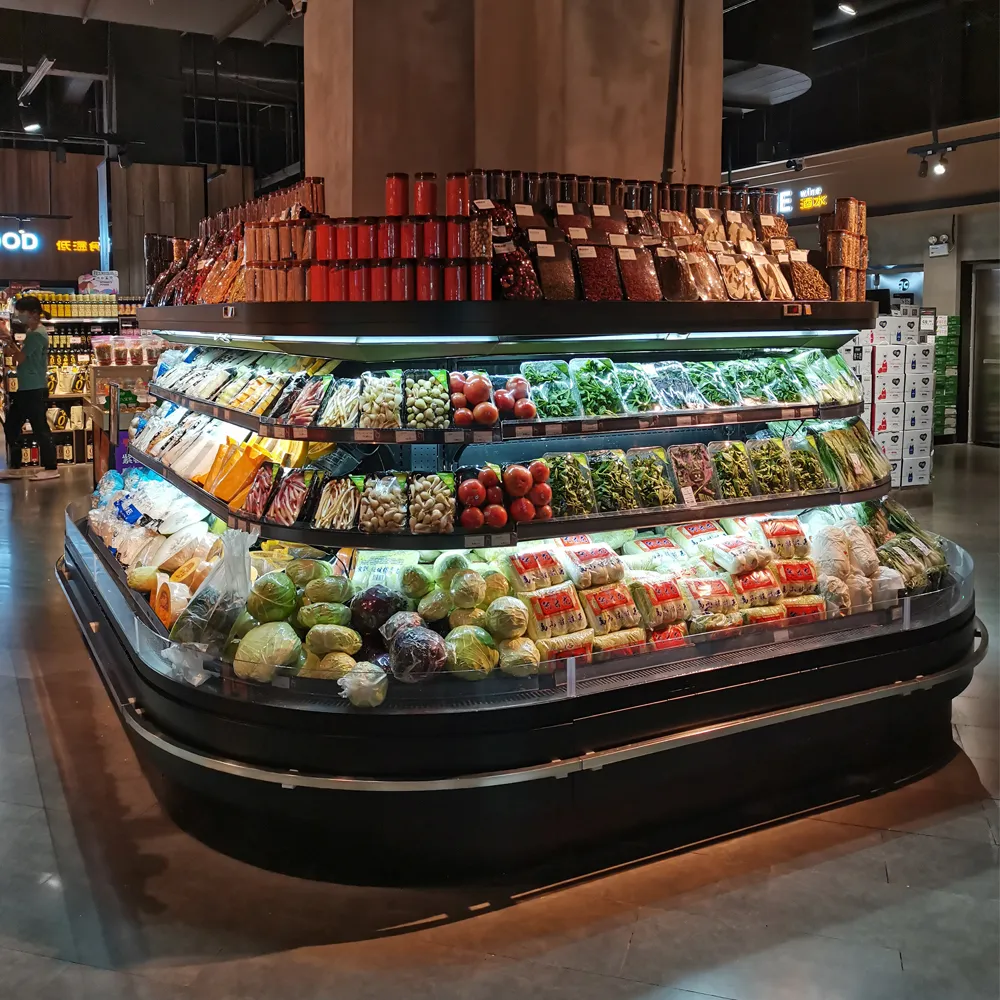

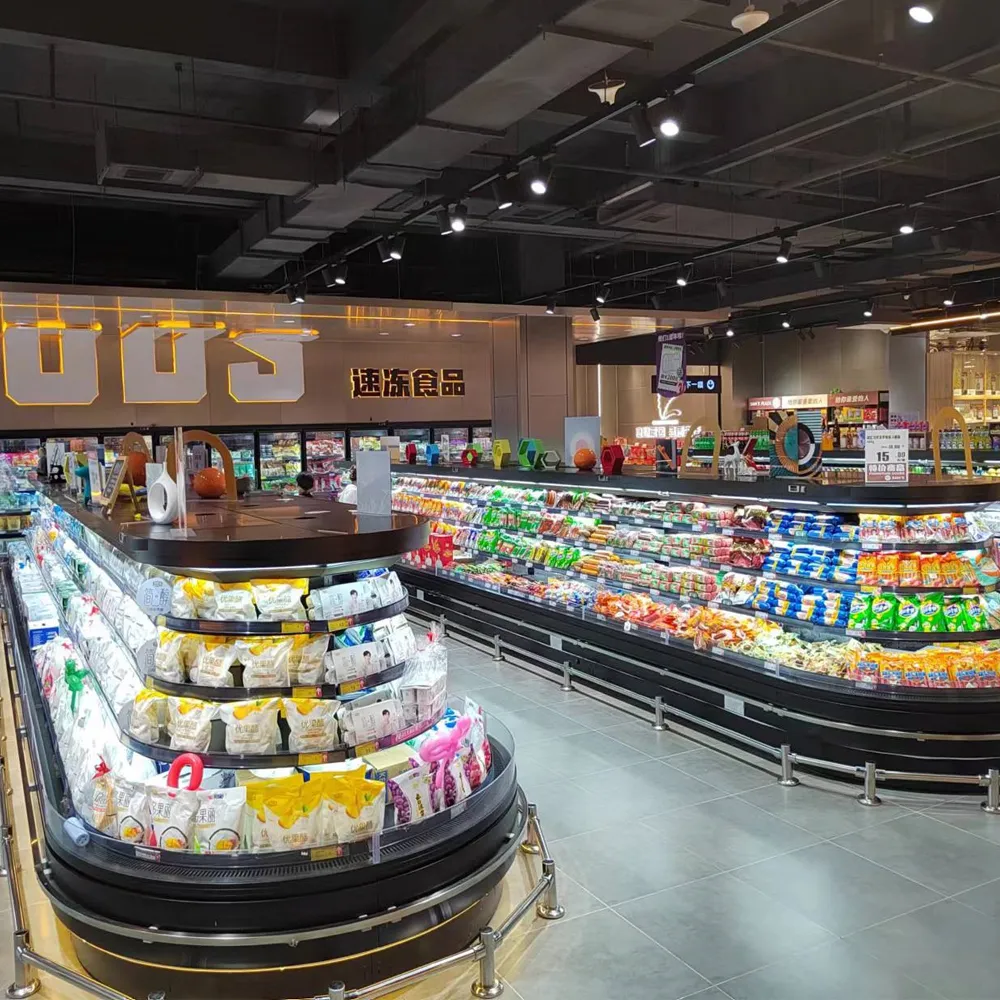

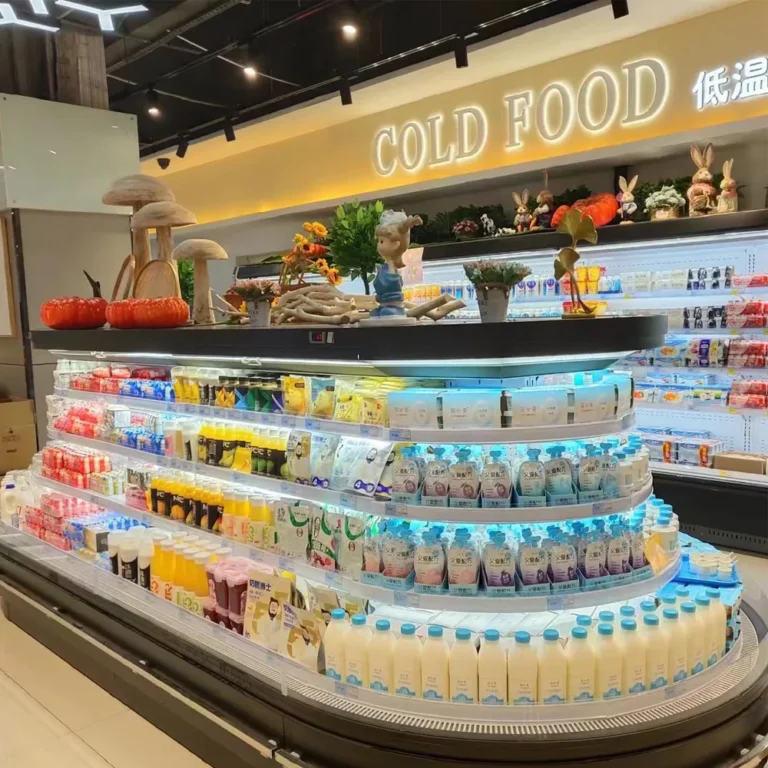

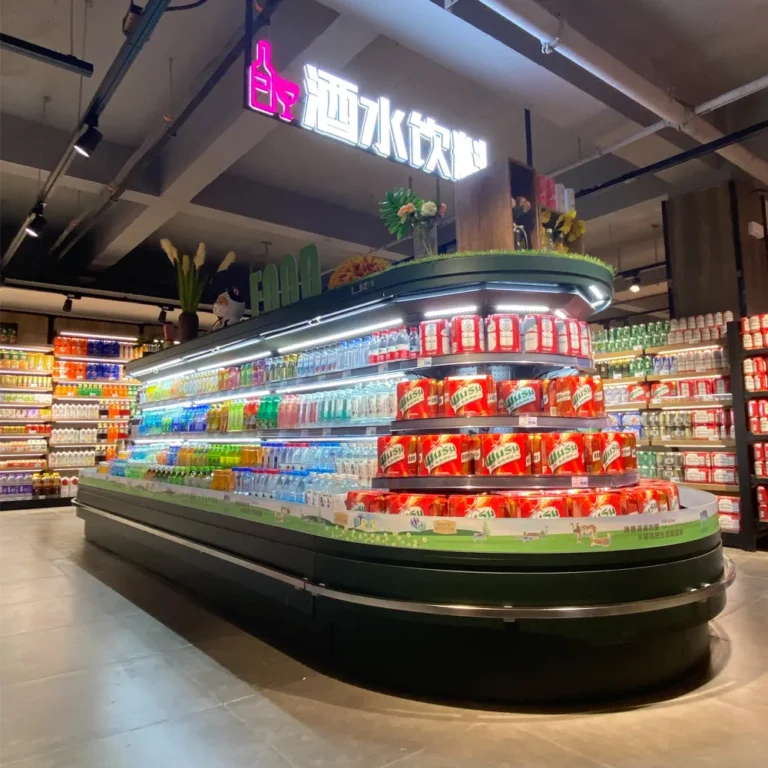

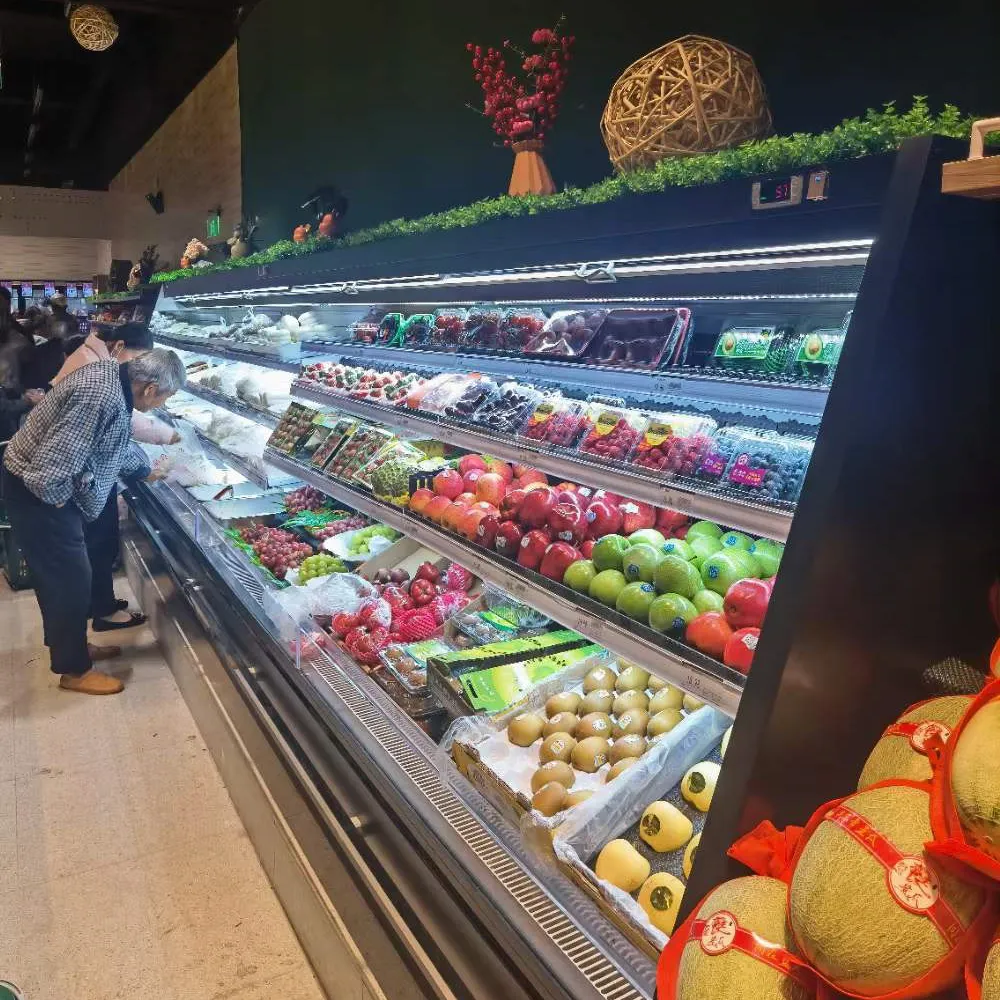

More Pictures Of Display Open Chiller
Packaging&Shipping
FAQ
1. What are the primary advantages of a Remote System over a Plug-in unit?
Zero Noise & Heat Exhaust: By placing the compressor unit outdoors, the remote system eliminates mechanical noise and heat discharge from the retail floor, creating a premium shopping environment.
Superior Energy Efficiency: For large-scale supermarket layouts, a centralized remote cooling system offers better energy-to-cooling ratios compared to multiple self-contained units.
Reduced HVAC Load: Since the cabinet does not release heat into the store, your building’s air conditioning system operates more efficiently, lowering overall utility costs.
2. What is the standard operating environment for these refrigerated display cabinets?
Climate Class: Our multi-decks are engineered for a standard operating environment of 25 ℃ / 60% R.H. (Relative Humidity).
Temperature Range: The units maintain a consistent working temperature of 2-8℃ ideal for dairy, beverages, produce, and pre-packaged meats.
Corner Units: Specialized 90° corner models (e.g., XLC-R1111AWJ) are designed for a 4-10℃ range to accommodate diverse floor plans.
3. How does the industrial design ensure long-term durability in high-traffic retail?
SS304 Protection: Every unit comes standard with a SS304 square tube bumper to protect the chassis from heavy shopping cart impacts.
CFC-Free Insulation: High-density, CFC-free polyurethane insulation ensures maximum thermal retention and structural integrity.
Heavy-duty Shelving: Standard shelves are available in depths of 400mmor 500mm with optional additional shelving for increased display capacity.
4. What customization options are available for branding and aesthetics?
Bespoke RAL Colors: We offer a full spectrum of customizable exterior and interior colors to match your brand’s specific aesthetic.
Premium Lighting: Standard configurations include high-output LED lighting for both the canopy and individual shelves.
Atmosphere Enhancement: Optional bottom atmosphere lamps can be integrated to elevate the visual appeal of your luxury food zones.
5. What are the key maintenance features of the XCCOLD Multi-deck series?
Natural Defrosting: The system utilizes natural defrosting cycles to significantly reduce energy consumption while maintaining optimal humidity for fresh products.
High-Efficiency Components: We adopt high-efficiency evaporation fans to ensure stable airflow through the transparent air curtain.
Installation Planning: When designing your layout, note that each end panel (side) has a thickness of 40 mm, which should be factored into your total linear run.
