Remote Luxury Multideck Open Chiller
Versatile Solutions for Various Fresh Food Categories
This chiller is suitable for display goods like: Beverages drinks, Sandwich food, Fruit, Ham sausage, Cheese, Milk, Vegetables and so on.
Multi Deck Display Chiller Brief Introduction
- Temperature Range 2~8 ℃
- Lower Base
- EBM Brand Fans
- Dixell Controller
- Bright LED Lighting
- Endless Spliced of Length
- Shelves Can be Adjusted
- Adjustable Leveling Legs
- Max Product Visibility
- Customizable Color Options
Products Details

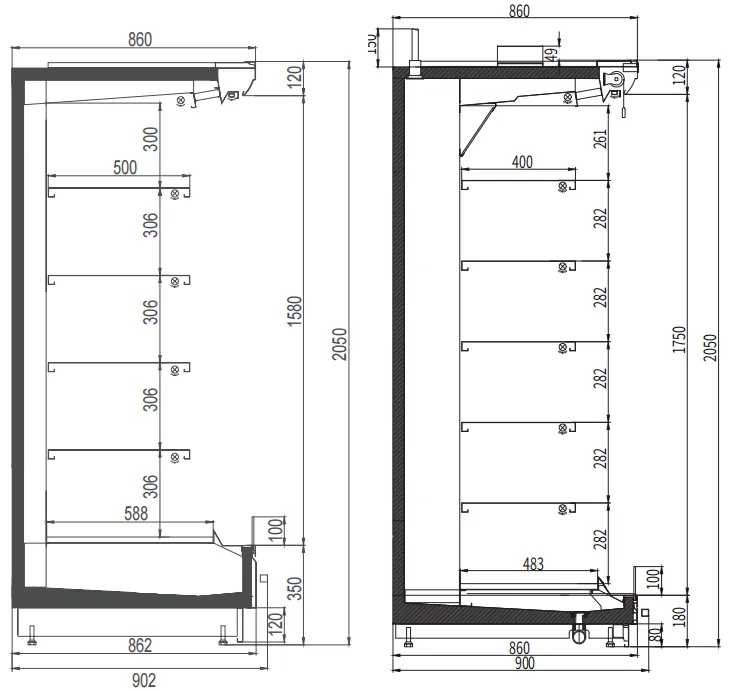

Parameter of Remote Luxury Multideck Open Chiller
| Model | External Dimensions (mm) | Temperature Range(°C) | Effective Volume(L) | Display Area(M2) | Input Power(W) | Cooling Capacity/Refrigerant | |||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Height Armrest | ||||||
| XLC-R1309A | 1250 | 905 | 2050 | 180 | 2~8 | 830 | 3.81 | 190 | 1700 |
| XLC-R1909A | 1875 | 905 | 2050 | 180 | 2~8 | 1240 | 4.84 | 280 | 2600 |
| XLC-R2509A | 2500 | 905 | 2050 | 180 | 2~8 | 1660 | 5.88 | 410 | 3500 |
| XLC-R3809A | 3750 | 905 | 2050 | 180 | 2~8 | 2490 | 7.95 | 610 | 5200 |
| XLC-R1111AWJ 90° | 1142 | 1142 | 2050 | 180 | 4~10 | 790 | 2.52 | 220 | 1700 |
| XLC-R1313ANJ 90° | 1380 | 1380 | 2050 | 180 | 4~10 | 1080 | 1.24 | 210 | 2300 |
| XLC-R1309 | 1250 | 905 | 2050 | 350 | 2~8 | 940 | 3.95 | 180 | 2000 |
| XLC-R1909 | 1875 | 905 | 2050 | 350 | 2~8 | 1410 | 4.88 | 260 | 3000 |
| XLC-R2509 | 2500 | 905 | 2050 | 350 | 2~8 | 1880 | 5.8 | 380 | 3900 |
| XLC-R3809 | 3750 | 905 | 2050 | 350 | 2~8 | 2810 | 7.64 | 550 | 5900 |
| XLC-R1111WJ 90° | 1142 | 1142 | 2050 | 350 | 4~10 | 840 | 2.54 | 180 | 1800 |
| XLC-R1313NJ 90° | 1380 | 1380 | 2050 | 350 | 4~10 | 1460 | 1.26 | 210 | 3100 |
| End panel (side) | Thickness: 40mm/side | ||||||||
Before specifying the remote system, request separate confirmation of cabinet electrical input, cooling duty with its unit and conditions, refrigerant, and the condensing-unit and installation scope. Confirm the selected model and configuration in the quotation; do not treat a cabinet input-power figure as the electrical requirement for a complete remote installation.
Plan a project quote for the XLC-R2509A remote multideck
The catalogue lists this cabinet at 2,500 × 905 × 2,050 mm (L × W × H) with a 180 mm front and a listed range of 2–8 °C. Confirm the final run length and required operating conditions for the goods you will display.
- Display cabinet
- Specify the number of cabinets, end panels, shelf arrangement and finished run length. The quote should identify the cabinet and accessories included.
- External refrigeration
- Tell us whether the site already has a compatible refrigeration system or needs a matched condensing unit quoted. Confirm refrigerant, operating conditions and connection requirements for the project.
- Site work and handover
- Agree who provides the refrigerant lines, drain, electrical connection and commissioning. Share the store plan and the intended location of the external equipment so these responsibilities can be listed in the quote.
To start, send the cabinet length, type of goods, destination and whether an external system is already in place.
Request an XLC-R2509A project quote
Remote Multideck Cabinet Features and System Requirements
Efficiency
Natural Defrosting
Environment
Class 3 (25°C/60%RH)
Temperature
Precise 2~8°C
Display
Low Front Visibility
Standard Features ● Standard
Optional Upgrades ○ Optional
Color Can Be Customized
Customizable exterior and interior colors available to perfectly match your brand’s aesthetic
Accessories

Squeeze Air Curtain
Effectively block the hot air outside

EBM Fan
Famous brand in the world, great quality

Dixell Temperature Controller
Automatic temperature adjustment

More Layers Shelves
Can display more products

Night Curtain
Keep the cooling and save energy

LED Lights
Save Energy

Danfoss Solenoid Valve
Control and regulation of fluids and gases

Danfoss Expansion Valve
Control the flow of refrigerant

Thickened Copper Tube
Conveying cooling to Chiller

Mirror Side Panel
Looks longer

Glass Side Panel
Transparent, looks brighter

Shelves Can be Adjusted
Suitable for all your needs

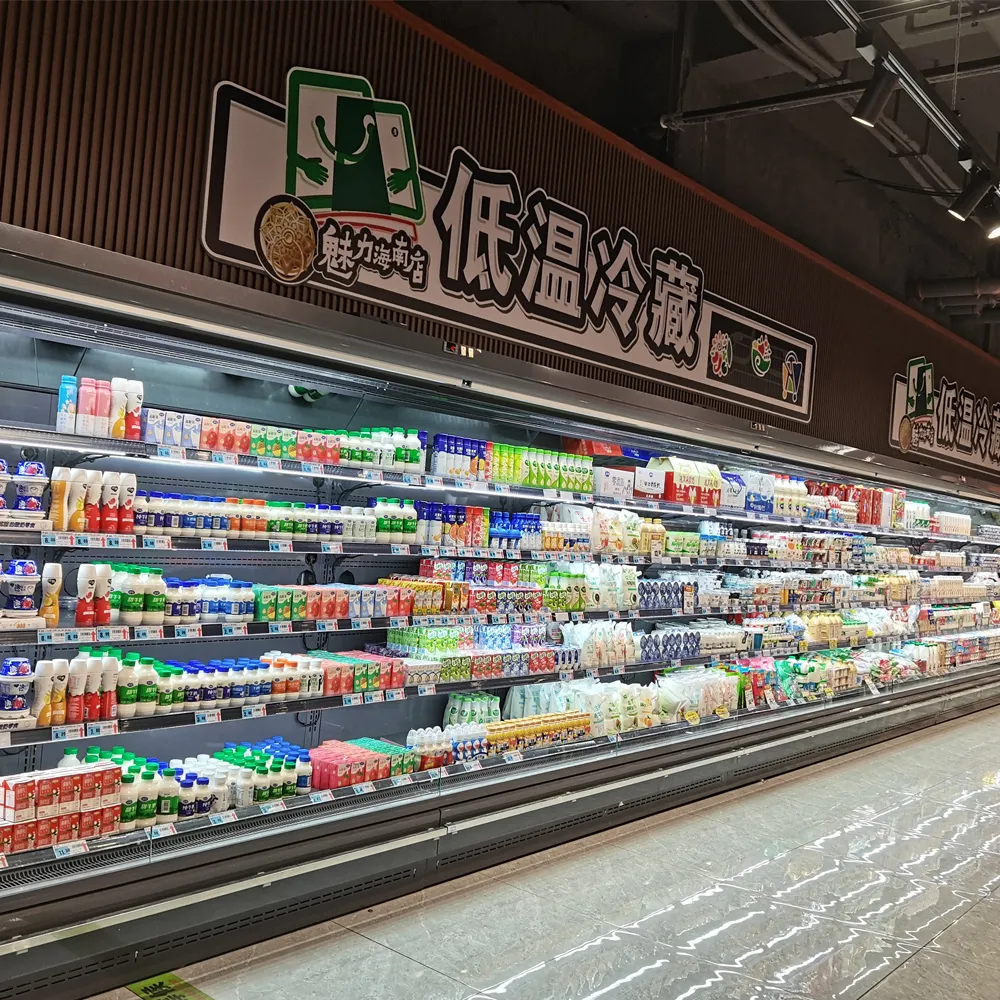

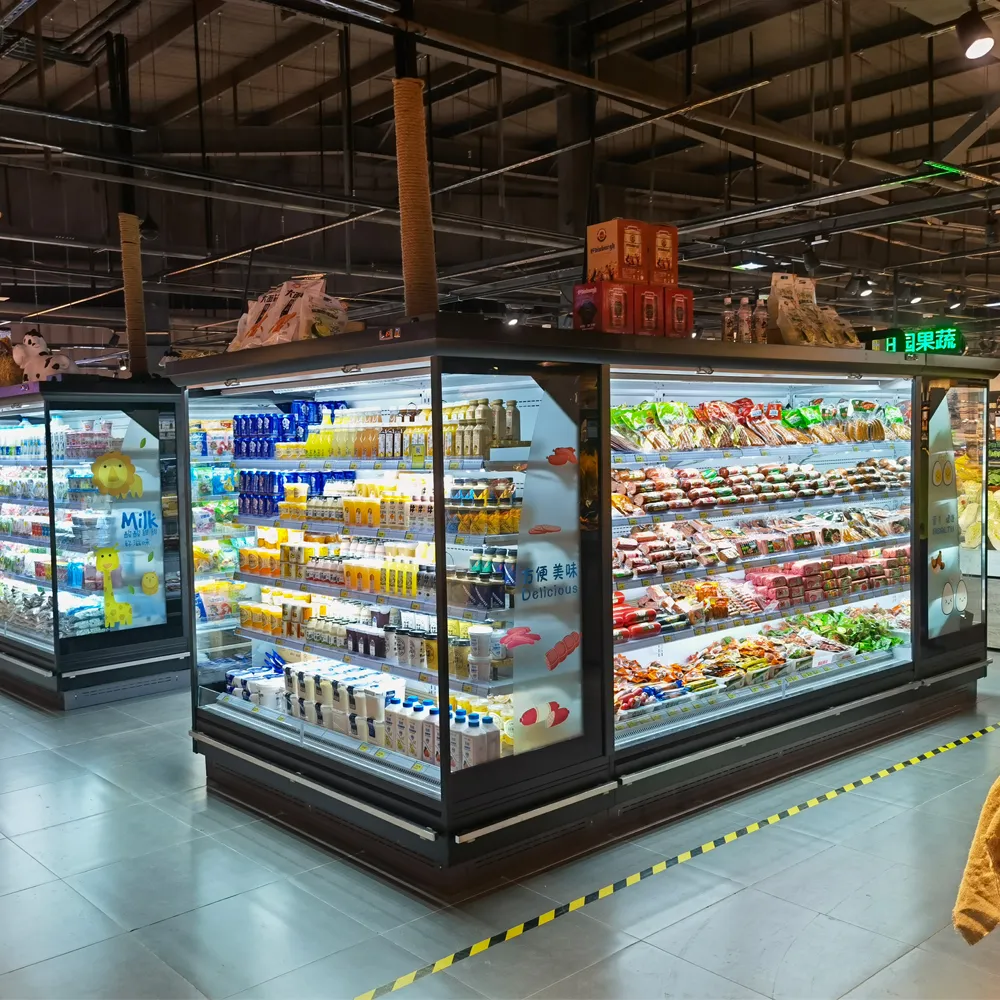

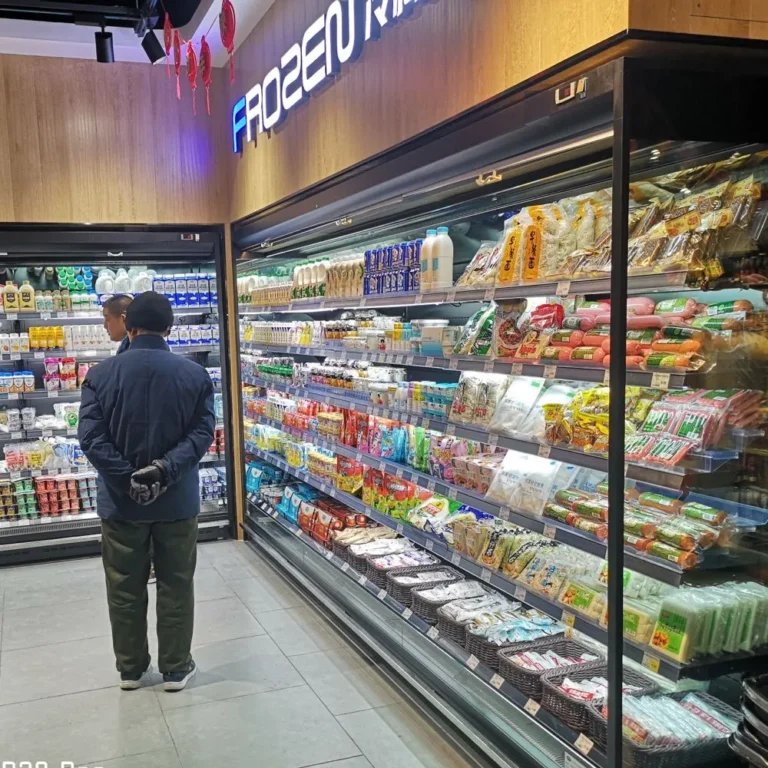

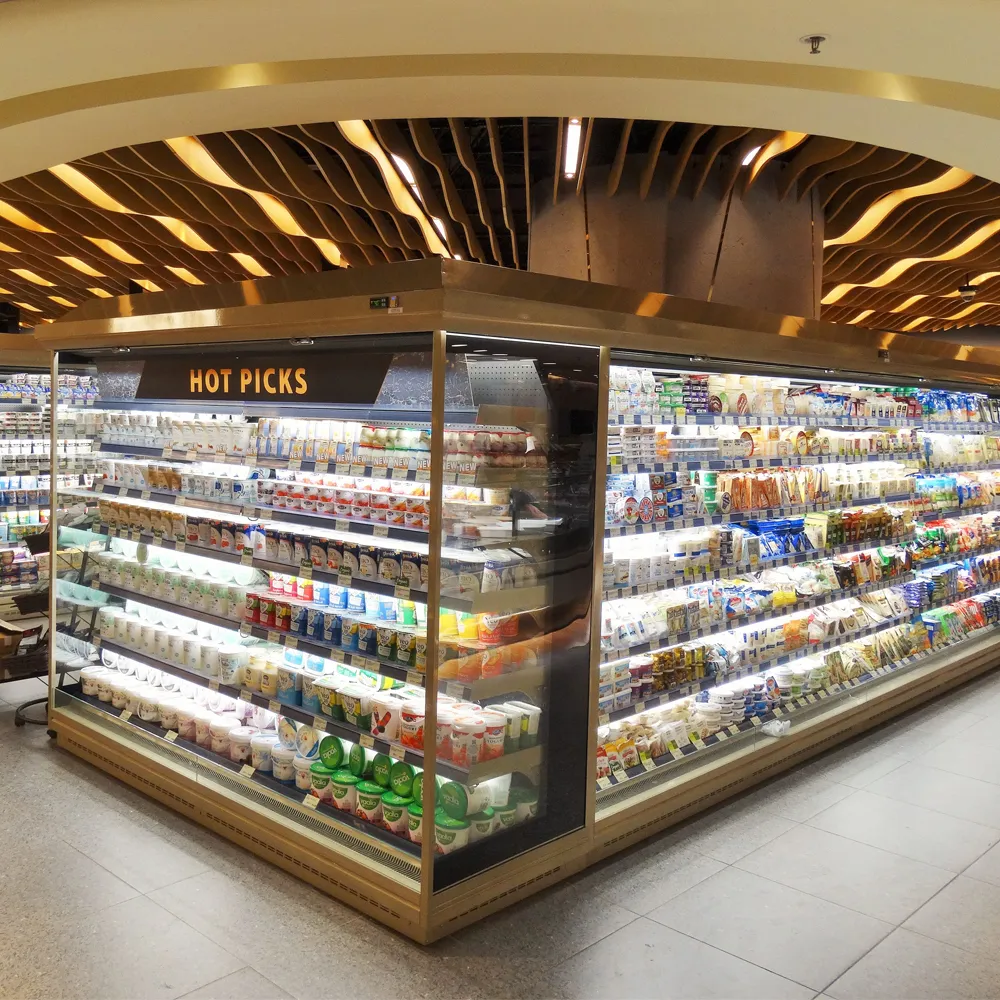

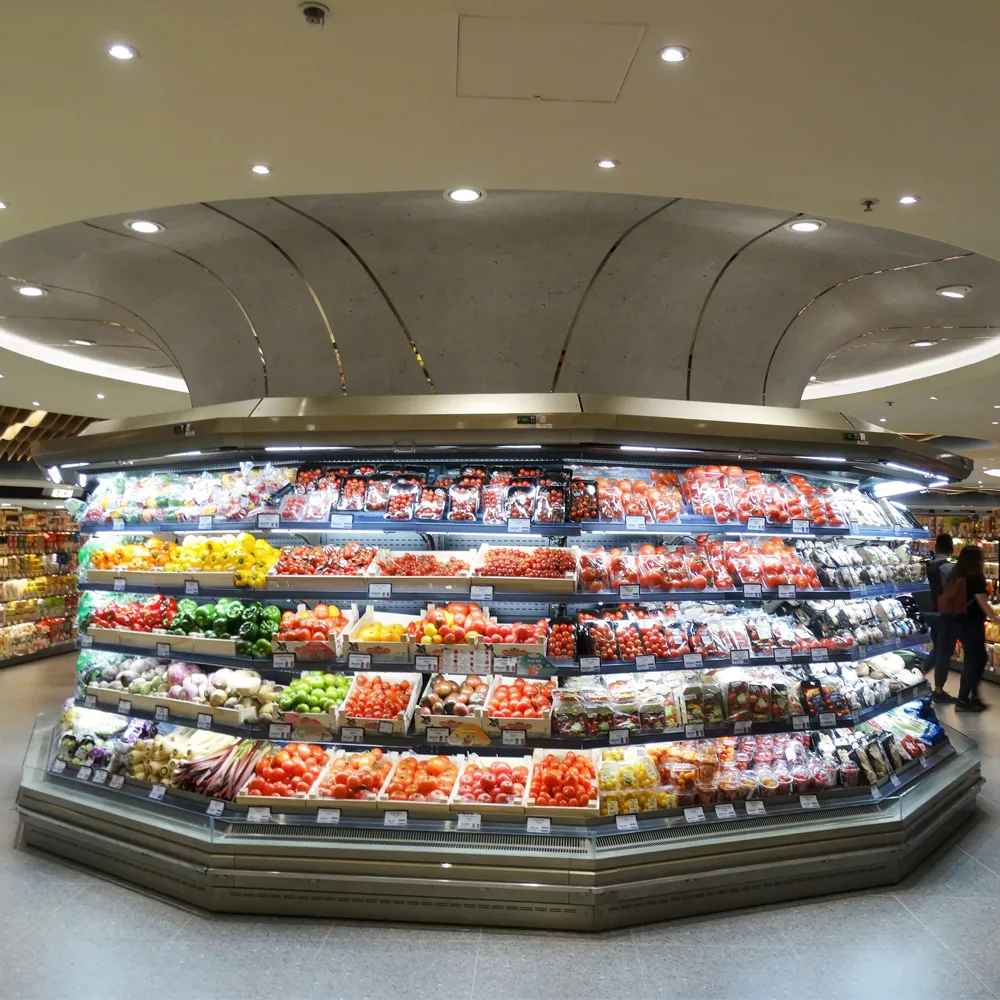

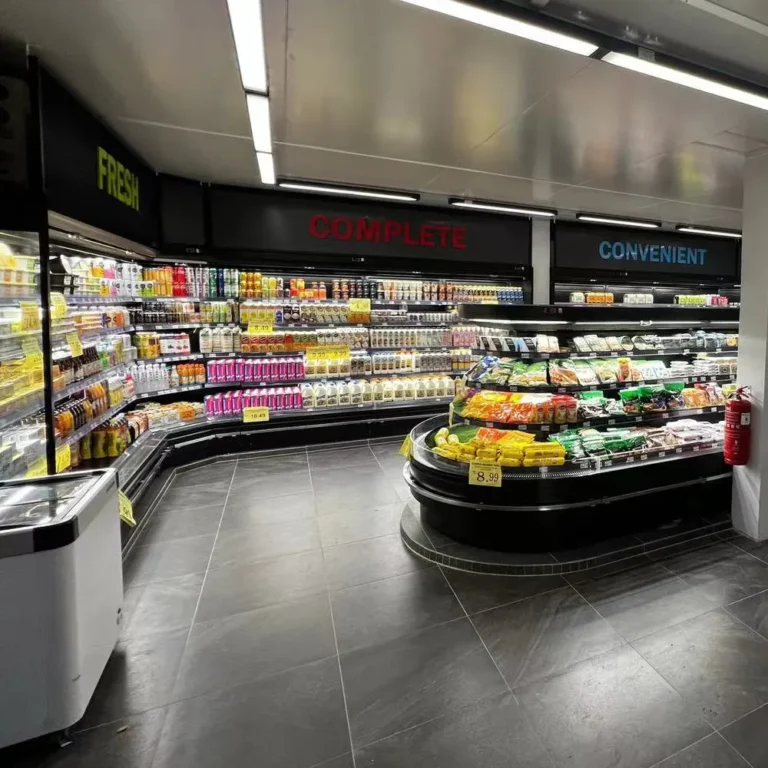

More Pictures Of Display Open Chiller
Packaging&Shipping
FAQ
1. What are the primary advantages of a Remote System over a Plug-in unit?
Zero Noise & Heat Exhaust: By placing the compressor unit outdoors, the remote system eliminates mechanical noise and heat discharge from the retail floor, creating a premium shopping environment.
Superior Energy Efficiency: For large-scale supermarket layouts, a centralized remote cooling system offers better energy-to-cooling ratios compared to multiple self-contained units.
Reduced HVAC Load: Since the cabinet does not release heat into the store, your building’s air conditioning system operates more efficiently, lowering overall utility costs.
2. What is the standard operating environment for these refrigerated display cabinets?
Climate Class: Our multi-decks are engineered for a standard operating environment of 25 ℃ / 60% R.H. (Relative Humidity).
Temperature Range: The units maintain a consistent working temperature of 2-8℃ ideal for dairy, beverages, produce, and pre-packaged meats.
Corner Units: Specialized 90° corner models (e.g., XLC-R1111AWJ) are designed for a 4-10℃ range to accommodate diverse floor plans.
3. How does the industrial design ensure long-term durability in high-traffic retail?
SS304 Protection: Every unit comes standard with a SS304 square tube bumper to protect the chassis from heavy shopping cart impacts.
CFC-Free Insulation: High-density, CFC-free polyurethane insulation ensures maximum thermal retention and structural integrity.
Heavy-duty Shelving: Standard shelves are available in depths of 400mmor 500mm with optional additional shelving for increased display capacity.
4. What customization options are available for branding and aesthetics?
Bespoke RAL Colors: We offer a full spectrum of customizable exterior and interior colors to match your brand’s specific aesthetic.
Premium Lighting: Standard configurations include high-output LED lighting for both the canopy and individual shelves.
Atmosphere Enhancement: Optional bottom atmosphere lamps can be integrated to elevate the visual appeal of your luxury food zones.
5. What are the key maintenance features of the XCCOLD Multi-deck series?
Natural Defrosting: The system utilizes natural defrosting cycles to significantly reduce energy consumption while maintaining optimal humidity for fresh products.
High-Efficiency Components: We adopt high-efficiency evaporation fans to ensure stable airflow through the transparent air curtain.
Installation Planning: When designing your layout, note that each end panel (side) has a thickness of 40 mm, which should be factored into your total linear run.
