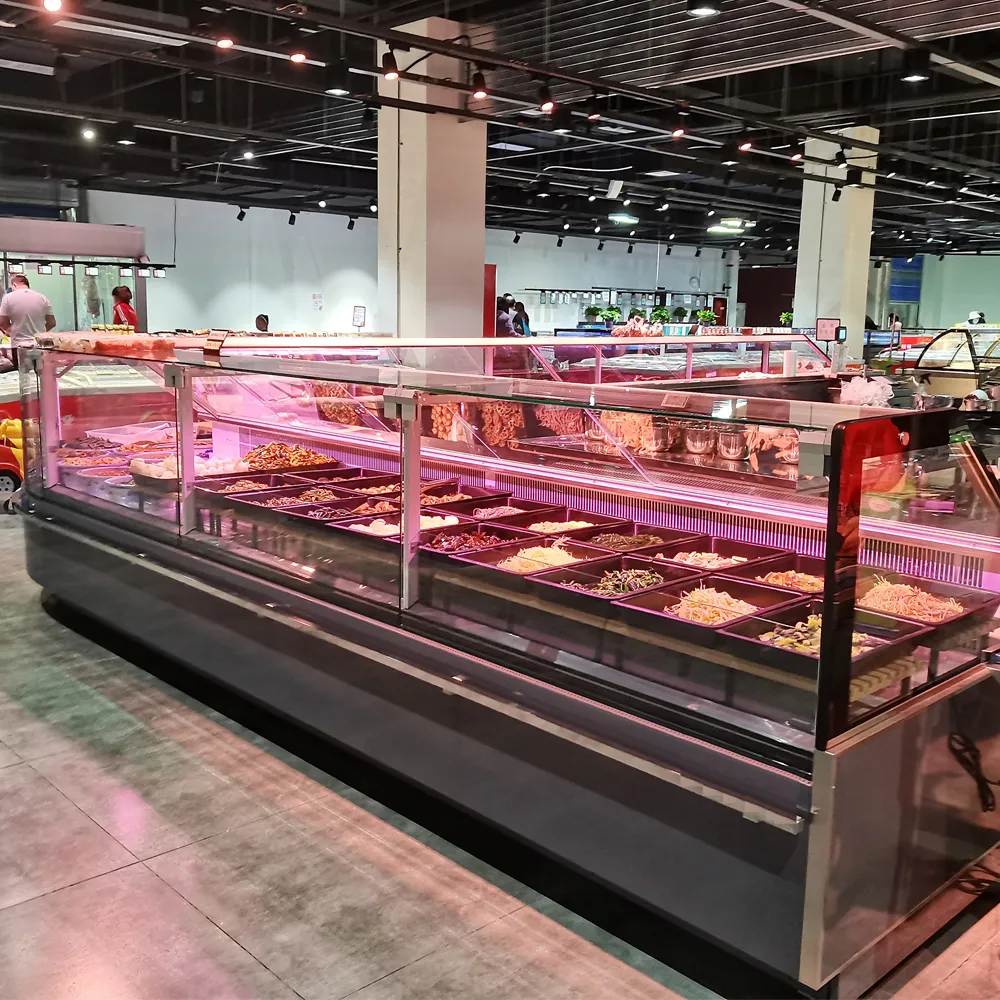

Remote Luxury Flat Glass Deli Showcase Counter
Versatile Solutions for Various Fresh Food Categories
This chiller is suitable for display goods like: bento, chicken, steak, sandwich, sushi, delicatessen, fruits, vegetables and so on.
Deli Showcase Counter Brief Introduction
- Temperature Range：-1~5℃
- Compressor Outside of Counter
- Digital Temperature Controller
- Dixell Controller
- Bright LED Lighting
- Endless Spliced of Length
- Brand Condensing Units
- Adjustable Leveling Legs
- Max Product Visibility
- Customizable Color Options
Products Details

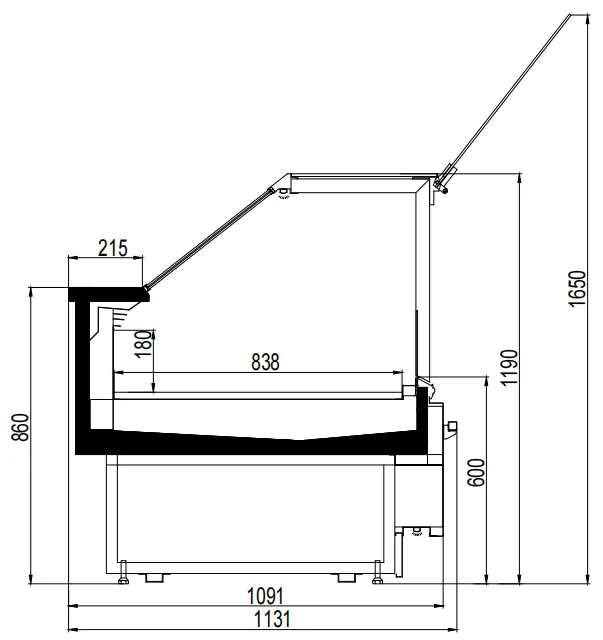

Parameter of Remote Luxury Flat Glass Deli Showcase Counter
| Model | External Dimensions (mm) | Temperature Range(°C) | Effective Volume(L) | Display Area(M2) | Input power(W) | |||
|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Height Armrest | |||||
| XSC-R1311BN | 1250 | 1135 | 1190 | 600 | -1 ~ 5 | 173 | 0.88 | 80 |
| XSC-R1911BN | 1875 | 1135 | 1190 | 600 | -1 ~ 5 | 259 | 1.3 | 120 |
| XSC-R2511BN | 2500 | 1135 | 1190 | 600 | -1 ~ 5 | 346 | 1.73 | 130 |
| XSC-R3811BN | 3750 | 1135 | 1190 | 600 | -1 ~ 5 | 519 | 2.64 | 190 |
| XSC-R1616BNNJ 90° | 1620 | 1620 | 1190 | 600 | 4~10 | 180 | 0.75 | 75 |
| XSC-R1313BNWJ 90° | 1350 | 1350 | 1190 | 600 | 4~10 | 160 | 1.1 | 75 |
| XSC-R1310BN | 1250 | 960 | 1190 | 600 | -1 ~ 5 | 146 | 0.85 | 80 |
| XSC-R1910BN | 1875 | 960 | 1190 | 600 | -1 ~ 5 | 220 | 1.21 | 120 |
| XSC-R2510BN | 2500 | 960 | 1190 | 600 | -1 ~ 5 | 295 | 2.59 | 130 |
| XSC-R3810BN | 3750 | 960 | 1190 | 600 | -1 ~ 5 | 439 | 2.35 | 190 |
| End panel (side) | Thickness:40mm/side | |||||||
Key Features of Remote Luxury Flat Glass Deli Showcase Counter
Benefits
1.Working temperature from -1℃~5℃ .
2.Operating environment class:25℃/60%R.H.
3.Flate glass design.
4.Electronic temperature controller.
5.LED light mounted on top.
Standard Features
1.Worktop in stainless steel.
2.Exterior and interior steel sheet preparinted.
3.Exposure and protection evaporator in expoxy sinish plate.
4.CFC-free insulation.
5.Leg levelers.
Optional Features
1.Stainless steel exterior&interior or choice of exterior&interior colors.
2.High duty wheels with brake.
3.Joinable to make a line or different angle.
4.Bottom atmosphere lamp.
Color Can Be Customized
Customizable exterior and interior colors available to perfectly match your brand’s aesthetic
Accessories
LED Lights
Make food more attractive
Dixell Temperature Controller
Automatic temperature adjustment
Tray optional
Tray for holding different foods
Thickened Copper Tube
Conveying cooling to Chiller
Danfoss Solenoid Valve
Control and regulation of fluids and gases
Danfoss Expansion Valve
Control the flow of refrigerant

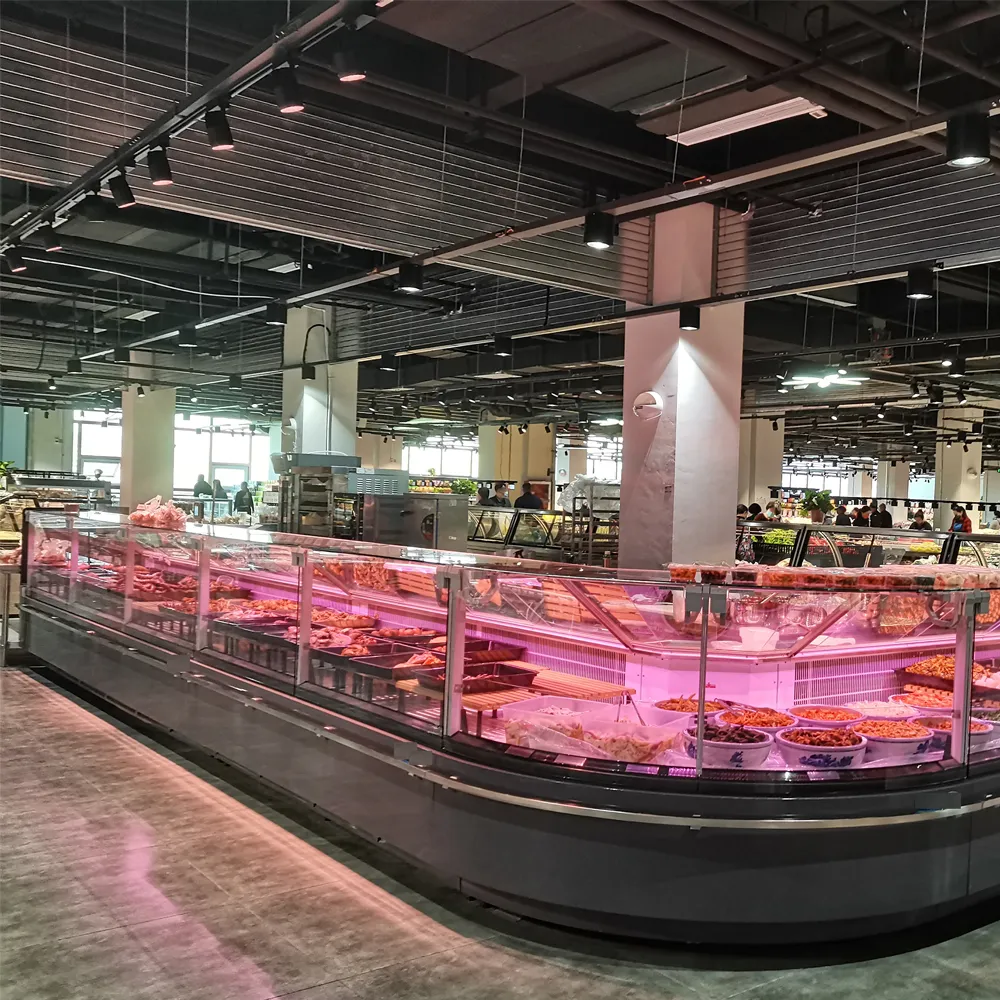

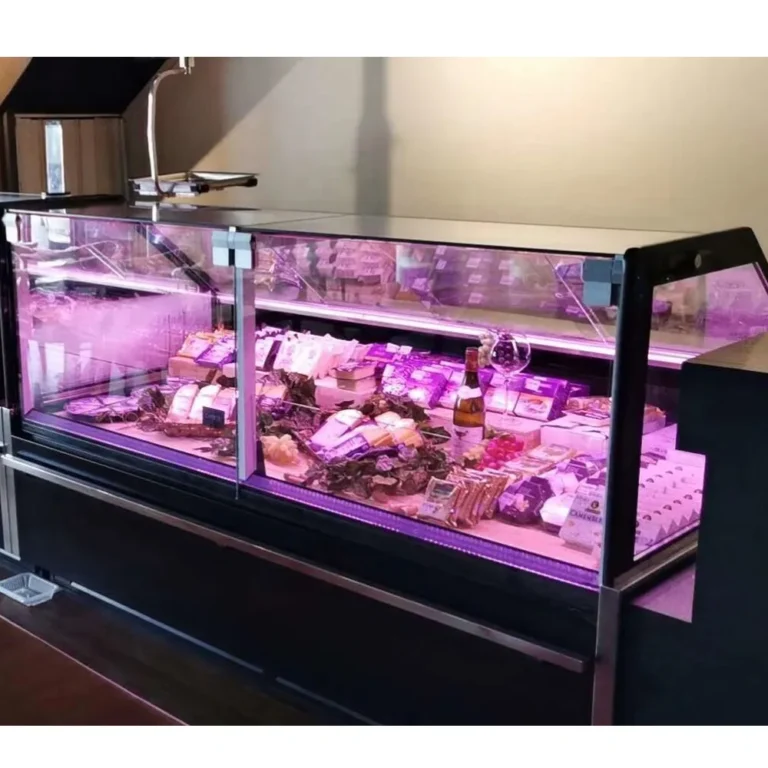

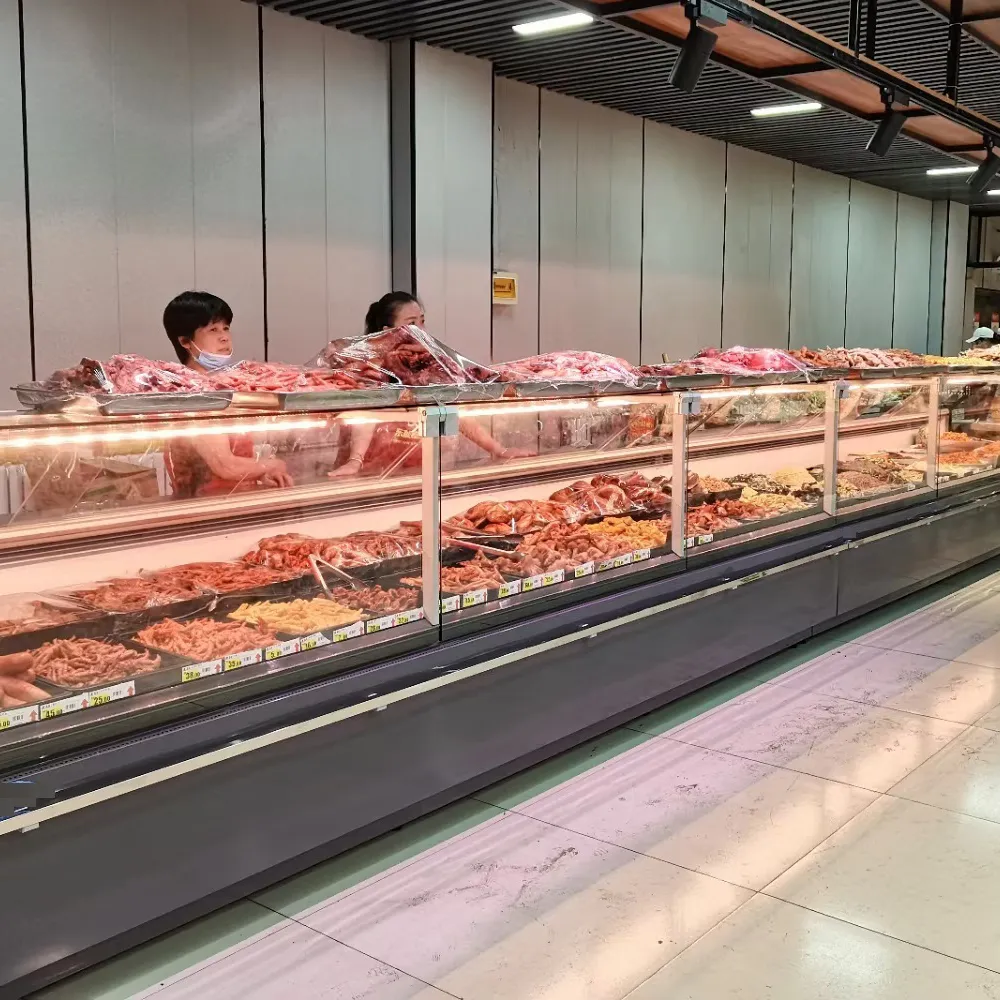

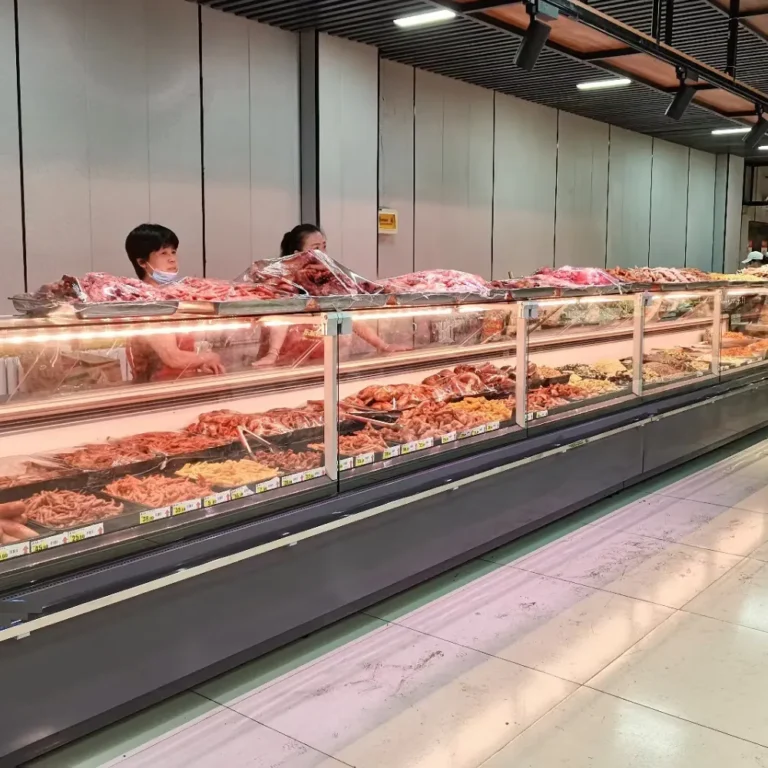

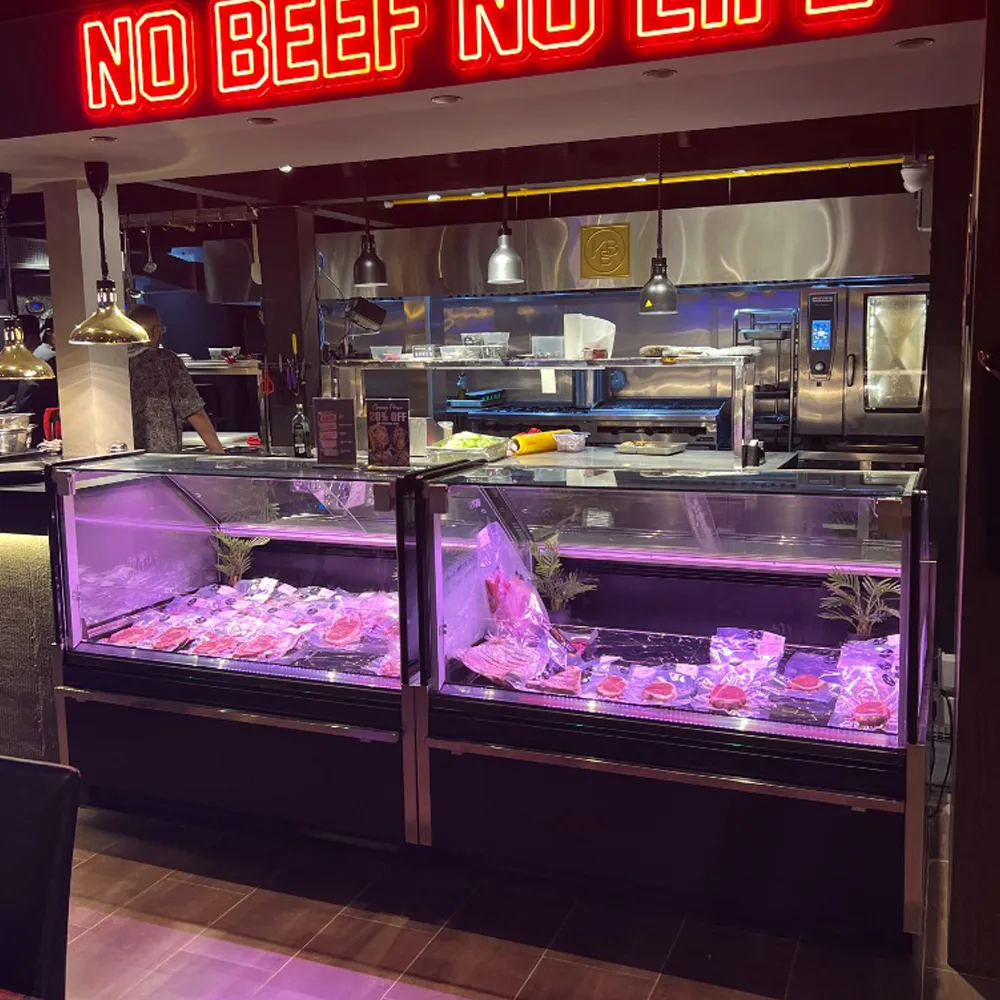

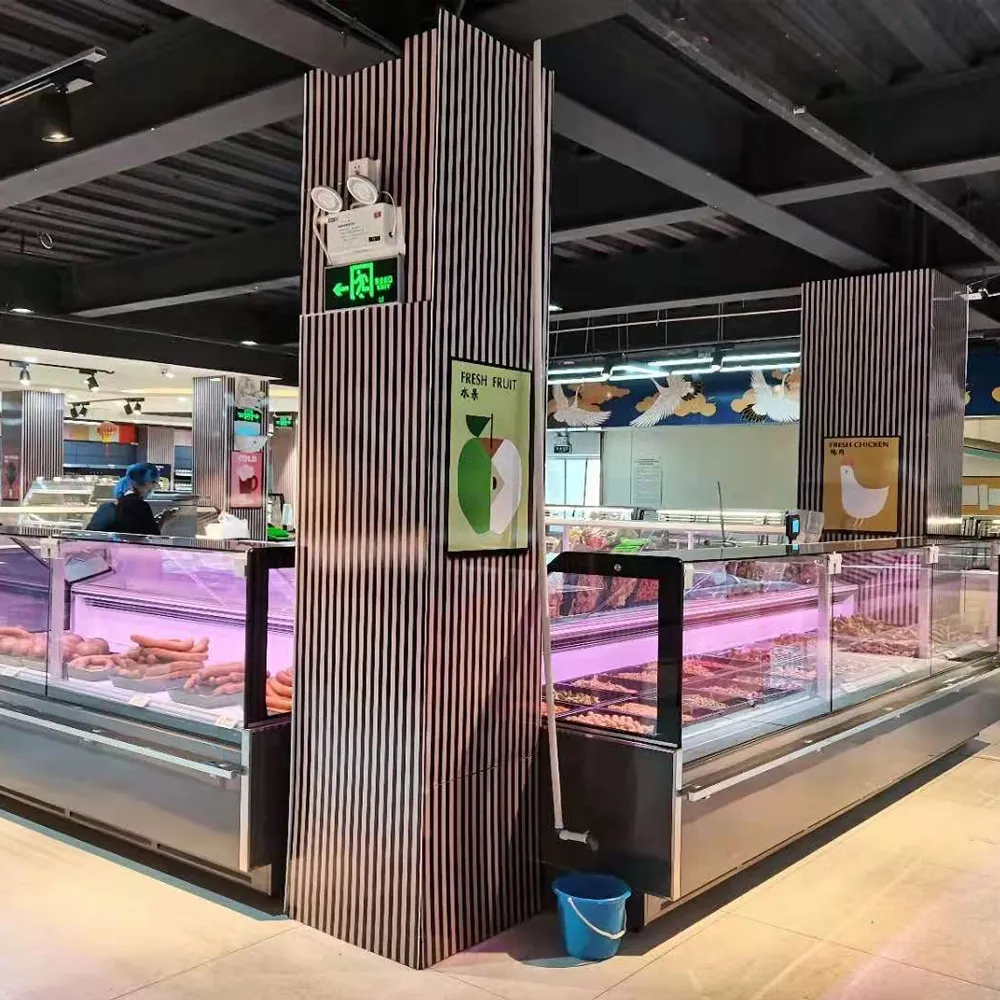

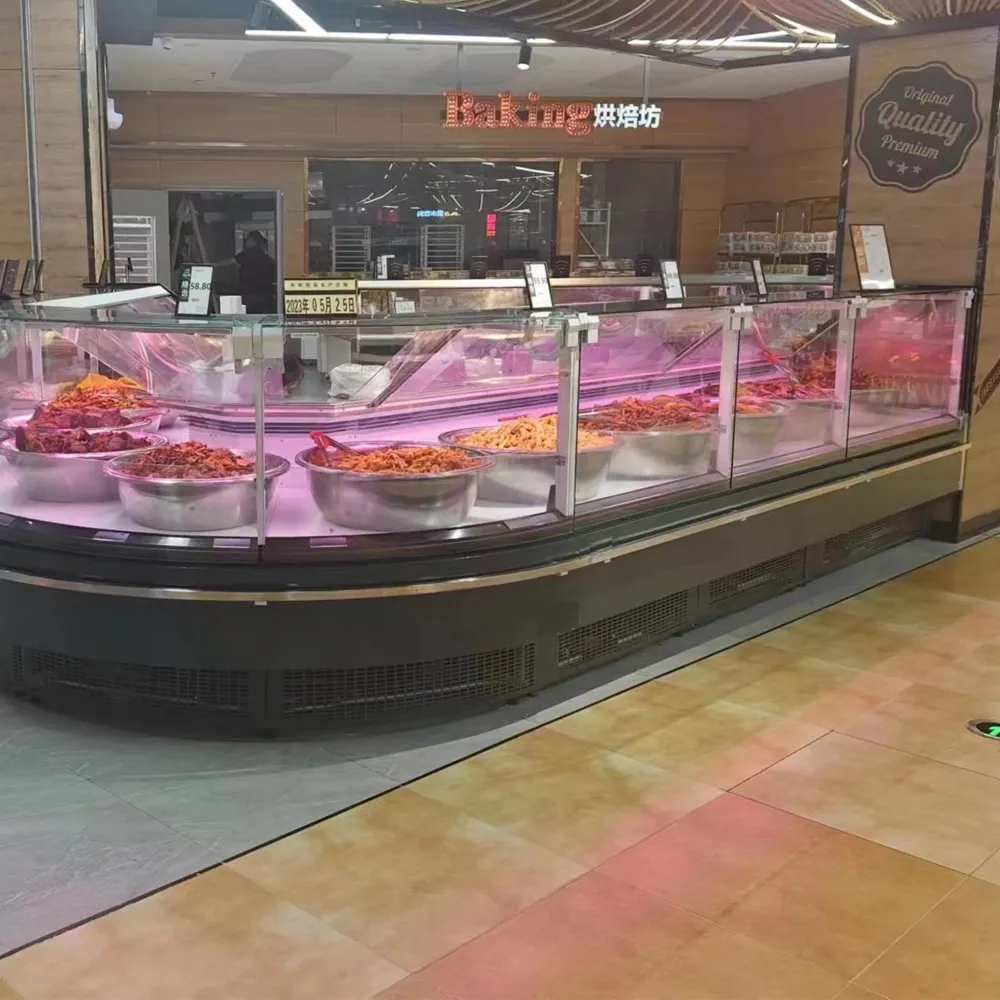

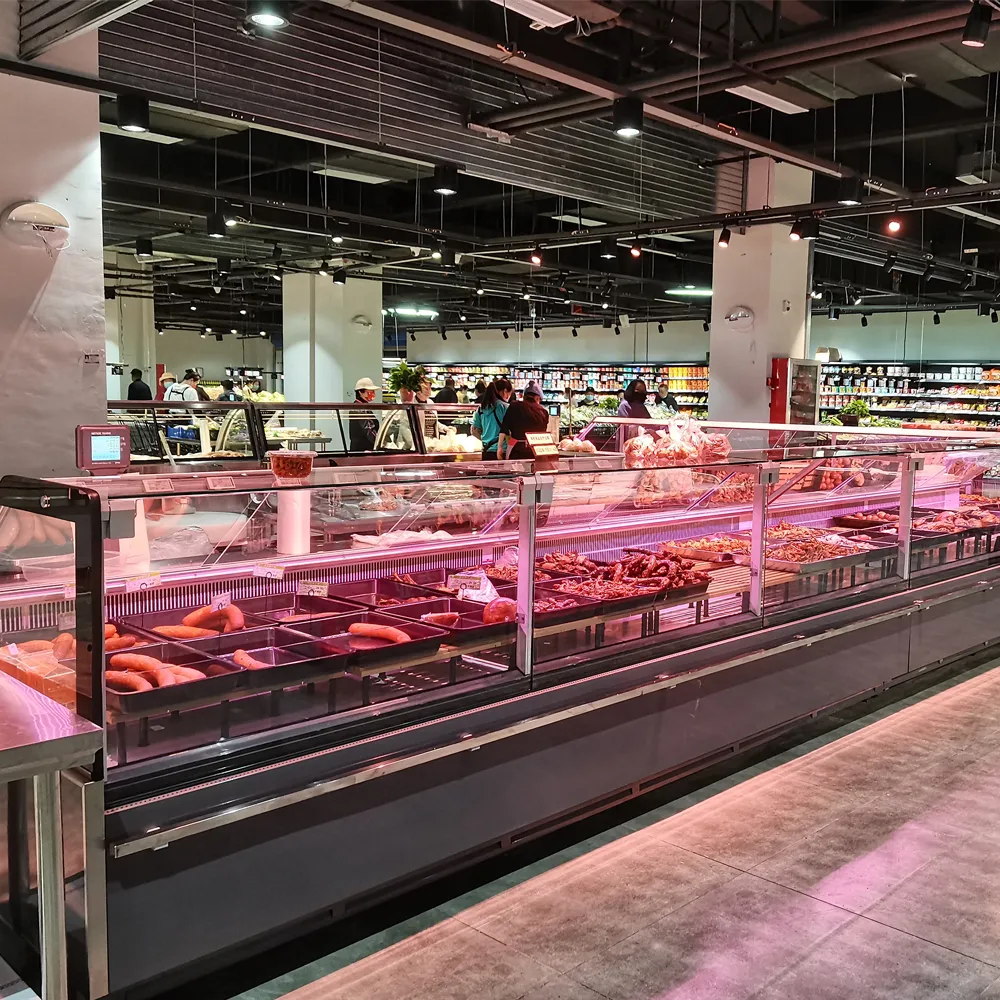

More Pictures Of Remote Luxury Flat Glass Deli Showcase Counter
Packaging&Shipping
FAQ
1. What are the advantages of a "Remote" system over a "Plug-in" unit?
Answer: The remote system places the compressor unit outdoors, which offers several premium benefits:
Zero Noise: Since the compressor is outside, your retail area remains quiet and professional.
No Heat Emission: Heat is dissipated outdoors, meaning your indoor air conditioning doesn’t have to work overtime to keep the shop cool.
Larger Capacity: Without an internal engine, the cabinet offers more effective volume for food display.
2. How does the "Straight Glass" design prevent fogging in humid conditions?
Answer: Our luxury series is equipped with advanced anti-condensation technology. This usually includes heated front glass or a high-velocity air curtain that prevents moisture from settling on the surface. This ensures a crystal-clear view of your deli products at all times, even in high-humidity environments.
3. Is the temperature stable enough for sensitive deli products?
Answer: Absolutely. These units utilize microcomputer digital thermostats and a forced-air cooling system. Unlike traditional static cooling, the air is circulated evenly through multiple vents, maintaining a consistent temperature range (typically -1~5℃) to keep cooked meats, salads, and delicacies fresh without drying them out.
4. How easy is it to clean and load the display?
Answer: The design prioritizes both hygiene and ergonomics:
Front Opening: Many models feature hydraulic “lift-up” front glass, allowing staff to easily wipe down the interior and rearrange displays.
Rear Sliding Doors: Back-end access allows for quick serving and restocking without obstructing the customer’s view.
Stainless Steel Interior: The food zone is made of high-grade stainless steel, which is corrosion-resistant and easy to sanitize.
5. What are the installation requirements for this model?
Answer: Since this is a remote unit, it requires professional installation similar to a split-system air conditioner:
Copper Piping: Connection lines must be run between the indoor cabinet and the outdoor condenser.
Drainage: A floor drain or a dedicated drainage pipe is required to handle the condensate water during the defrost cycle.
Power Supply: Please ensure your site meets the “Input Power” specifications listed in the technical table to prevent electrical overloads.
