Remote Japan Style Glass Door Chiller
Versatile Solutions for Various Fresh Food Categories
This chiller is suitable for display goods like: Beverages drinks, Sandwich food, Fruit, Ham sausage, Cheese, Milk, Vegetables and so on.
Glass Door Chiller Brief Introduction
- Temperature Range 2~8 ℃
- Glass Door With Heat Wire
- EBM Brand Fans
- Dixell Controller
- Bright LED Lighting
- Endless Spliced of Length
- Shelves Can be Adjusted
- Adjustable Leveling Legs
- Max Product Visibility
- Customizable Color Options
Products Details

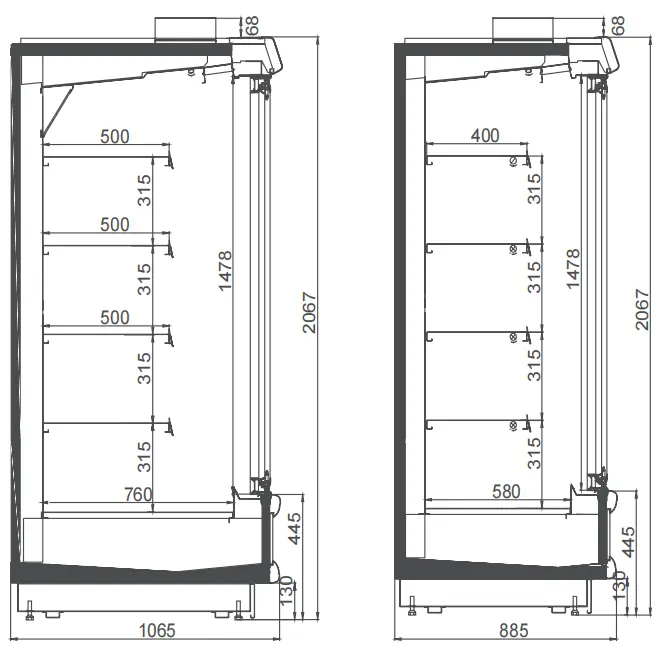

Parameter of Remote Japanese Style Glass Door Chiller
| Model | External Dimensions (mm) | Temperature Range(°C) | Effective Volume(L) | Display Area(M2) | Input power(W) | |||
|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Height Armrest | |||||
| XLC-R1311BD | 1250 | 1070 | 2070 | 445 | 2 ~ 8 | 912 | 3.37 | 360 |
| XLC-R1911BD | 1875 | 1070 | 2070 | 445 | 2 ~ 8 | 1368 | 4.22 | 520 |
| XLC-R2511BD | 2500 | 1070 | 2070 | 445 | 2 ~ 8 | 1824 | 5.07 | 690 |
| XLC-R3811BD | 3750 | 1070 | 2070 | 445 | 2 ~ 8 | 2736 | 6.77 | 1000 |
| XLC-R1309BD | 1250 | 885 | 2070 | 445 | 2 ~ 8 | 719 | 2.97 | 360 |
| XLC-R1909BD | 1875 | 885 | 2070 | 445 | 2 ~ 8 | 1078 | 3.82 | 520 |
| XLC-R2509BD | 2500 | 885 | 2070 | 445 | 2 ~ 8 | 1438 | 4.67 | 690 |
| XLC-R3809BD | 3750 | 885 | 2070 | 445 | 2 ~ 8 | 2157 | 6.37 | 1000 |
| End panel (side) | Thickness:40mm/side | |||||||
Key Features of Remote Japan Style Glass Door Chiller
Benefits
1.Operating environment class:25℃/60%R.H.
2.Working temperature from 1~7℃.
3.Increased product visibility with lower front.
4.Adopt high efficiency evaporation fan reduce energy.
5.Natural defrosting reduces energy consumption.
6.Energy saving glass door.
Standard Features
1.Black&White exterior and interior color.
2.Shelves:400/500mm in depth.
3.Canopy and shelf LED lighting.
4.Transparent Air curtain.
5.CFC-free insulation. 6.Pvc bumber.
Optional Features
1.Addtional shelving.
2.Stainless steel exterior&interior or choice of exterior&interior colors.
3.Optional solid end walls with inside mirror.
4.Optional heater for evaporator coil for high humidity environment.
5.Bottom atmosphere lamp
Color Can Be Customized
Customizable exterior and interior colors available to perfectly match your brand’s aesthetic
Accessories
Squeeze Air Curtain
Effectively block the hot air outside
EBM Fan
Famous brand in the world, great quality
Dixell Temperature Controller
Automatic temperature adjustment
More Layers Shelves
Can display more products
Night Curtain
Keep the cooling and save energy
LED Lights
Save Energy
Danfoss Solenoid Valve
Control and regulation of fluids and gases
Danfoss Expansion Valve
Control the flow of refrigerant
Thickened Copper Tube
Conveying cooling to Chiller
Mirror Side Panel
Looks longer
Glass Side Panel
Transparent, looks brighter
Shelves Can be Adjusted
Suitable for all your needs
More Pictures Of Remote Japan Style Glass Door Chiller
Packaging&Shipping
FAQ
Q1: What are the main benefits of a "Remote" unit compared to a "Plug-in" unit?
Quiet & Cool Environment: Since the compressor is installed outdoors, the noise and heat are kept outside your shop. This keeps your store quiet and reduces the load on your indoor air conditioning.
Maximized Space: Without an onboard compressor, these cabinets often provide more internal storage and display volume for your products.
Q2: Will the glass doors fog up in humid weather?
Crystal Clear Vision: No. These cabinets are equipped with heated glass technology. A micro-heating element in the double-glazed doors prevents condensation (fogging), ensuring your products remain perfectly visible even in high-humidity conditions.
Q3: How much energy does the glass door version save compared to open-front cabinets?
High Efficiency: Glass doors act as a thermal barrier that locks in over 90% of the cold air. Compared to open-front “air curtain” models, these cabinets can reduce energy consumption by 40% to 50%, significantly lowering your monthly electricity bills.
Q4: What are the specific requirements for installation?
Outdoor Space: You need a ventilated area outside to place the condensing unit.
Piping & Professional Setup: Refrigerant lines and drainage pipes must be pre-installed. Because the system requires vacuuming and refrigerant charging on-site, it must be set up by a certified HVAC technician.
Q5: What is the most important maintenance tip for this system?
Clean the Outdoor Condenser: The most critical task is cleaning the dust and debris from the outdoor unit every 1–2 months. A clean condenser ensures optimal heat exchange, protects the compressor from overheating, and maintains consistent cooling temperatures.
