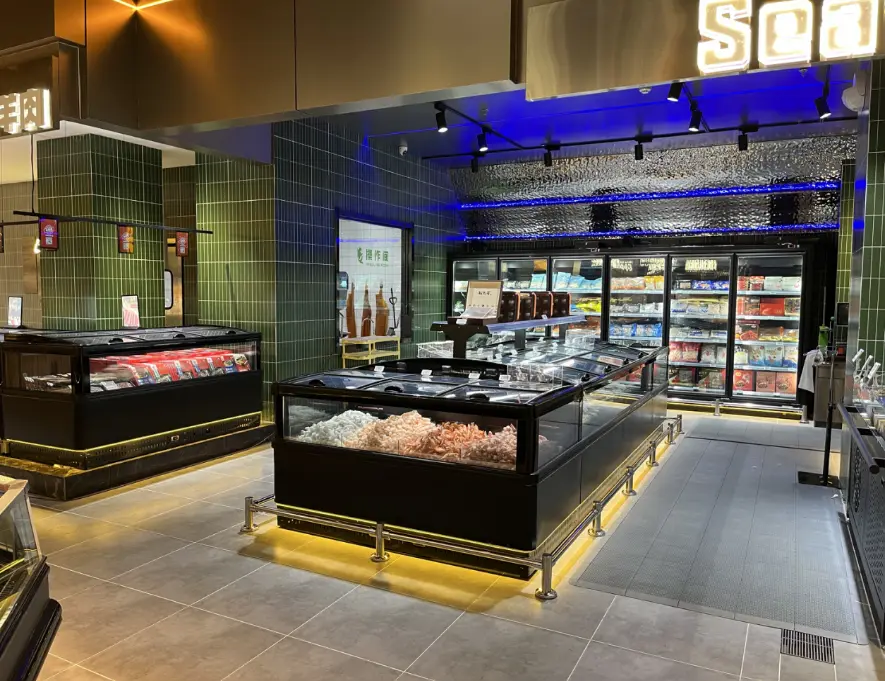

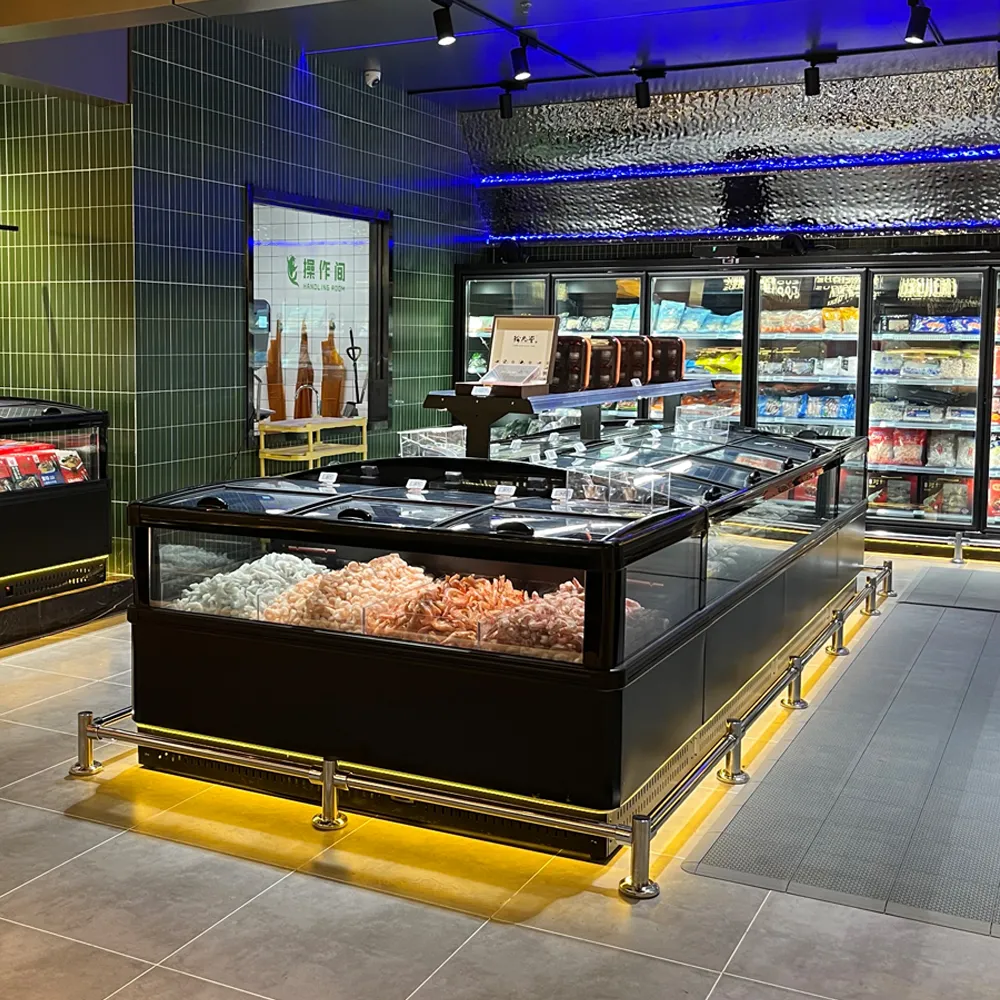

Remote Double-sided Air Outlet Island Freezer
Versatile Solutions for Various Fresh Food Categories
This chiller is suitable for display goods like: steak, chicken, lobster, ice cream, frozen fish, dumplings, shrimp and so on.
Island Freezer Brief Introduction
- Temperature range：-18~-22℃
- Compressor Outside of Freezers
- Digital Temperature Controller
- Dixell Controller
- Bright LED Lighting
- Endless Spliced of Length
- Hold More Products
- Adjustable Leveling Legs
- Max Product Visibility
- Customizable Color Options
Products Details

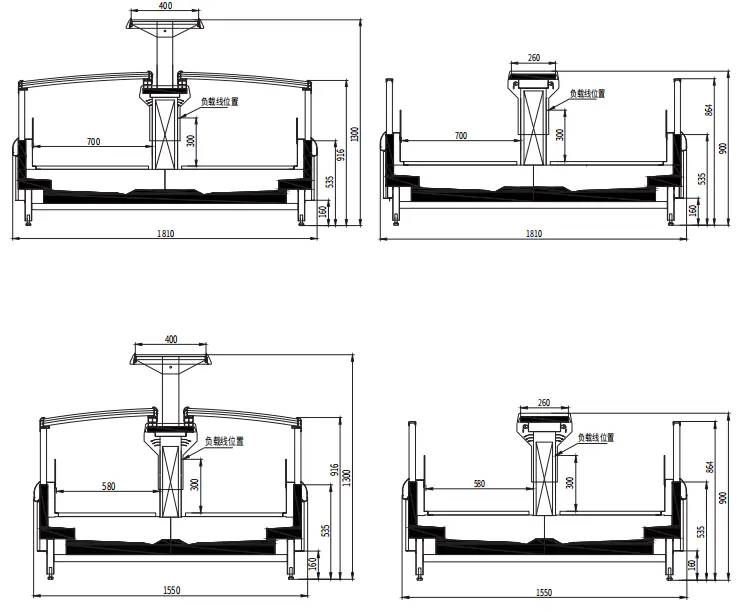

Parameter of Remote Double-sided Air Outlet Island Freezer
| Model | External Dimensions (mm) | Temperature Range(°C) | Effective Volume(L) | Display Area(M2) | Input power(W) | |||
|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Height Armrest | |||||
| XIF-R1916 | 1875 | 1550 | 900 | 855 | ≤-18 | 700 | 2.26 | 500 |
| XIF-R2516 | 2500 | 1550 | 900 | 855 | ≤-18 | 940 | 2.96 | 850 |
| XIF-R3816 | 3750 | 1550 | 900 | 855 | ≤-18 | 1410 | 4.37 | 1050 |
| XIF-R1016MT | 960 | 1550 | 900 | 855 | ≤-18 | 310 | 1.40 | 300 |
| XIF-R1918 | 1875 | 1810 | 900 | 855 | ≤-18 | 840 | 2.72 | 650 |
| XIF-R2518 | 2500 | 1810 | 900 | 855 | ≤-18 | 1120 | 3.59 | 950 |
| XIF-R3818 | 3750 | 1810 | 900 | 855 | ≤-18 | 1680 | 5.32 | 1200 |
| XIF-R1018MT | 960 | 1810 | 900 | 855 | ≤-18 | 730 | 1.59 | 400 |
| End panel (side) | Thickness:60mm/side | |||||||
Key Features of Plug-in Double Temperature Island Freezer
Benefits
1.Working temperature from 0℃~-25℃ .
2.0perating environment class:25℃/60%R.H.
3.Electronic temperature controller.
4.Two different size to meet middle-large size store.
5.Idea for Frozen food,Ice Cream,and medium temp applications.
Standard Features
1.Double island [One evaporator per module].
2.Electrical defrosting.
3.Three layer temperaed glass with lower energy heater that can be used in all climate conditions.
4.CFC-free insulation.
5.Leg levelers.
Optional Features
1.Optional for the sliding glass to save energy.
2.Optional for the non-refrigeration shelves.
3.Bumper optionally.
4.End walls optionally.
5.Optional Bottom atmosphere lamp.
6.Optional for the LED lighting.
Color Can Be Customized
Customizable exterior and interior colors available to perfectly match your brand’s aesthetic
Accessories
LED Lights
Save energy
Dixell Temperature Controller
Automatic temperature adjustment
Basket
Can easily to divide the products into different part
Thickened Copper Tube
Conveying cooling to Chiller
Danfoss Solenoid Valve
Control and regulation of fluids and gases
Danfoss Expansion Valve
Control the flow of refrigerant

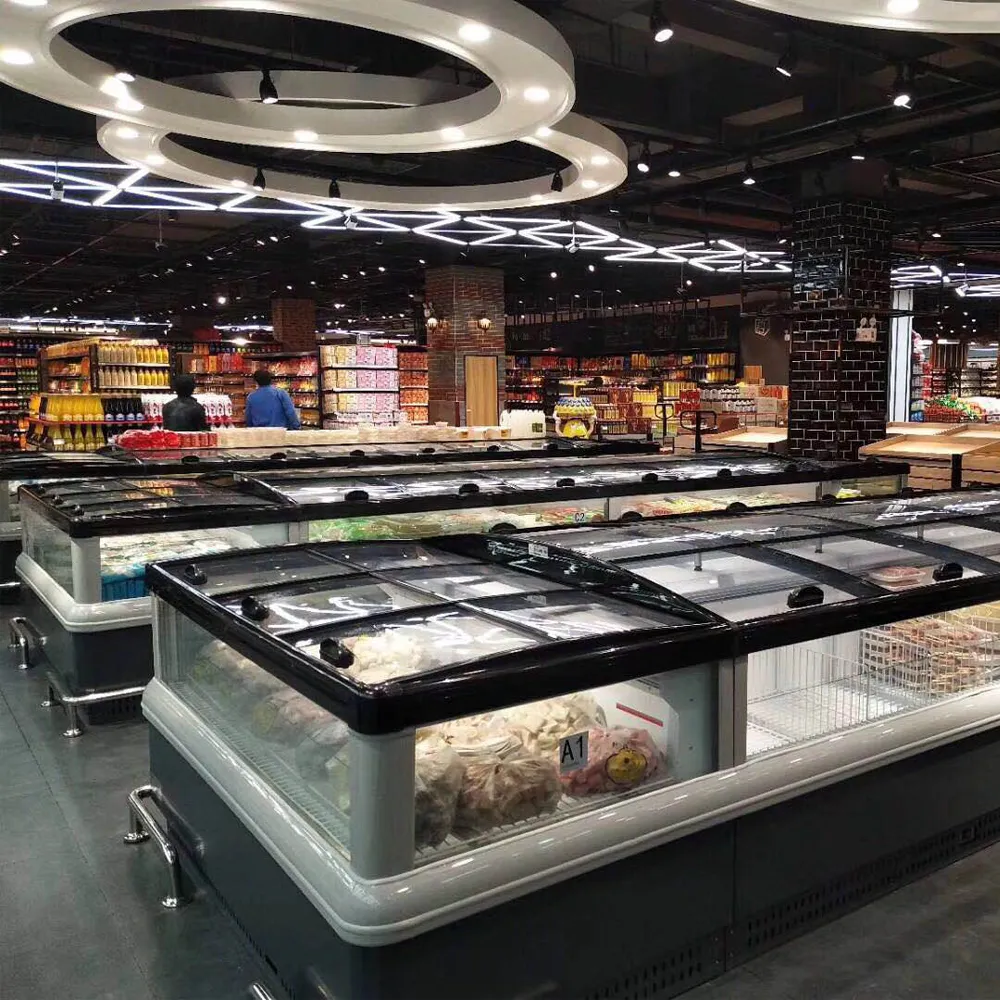

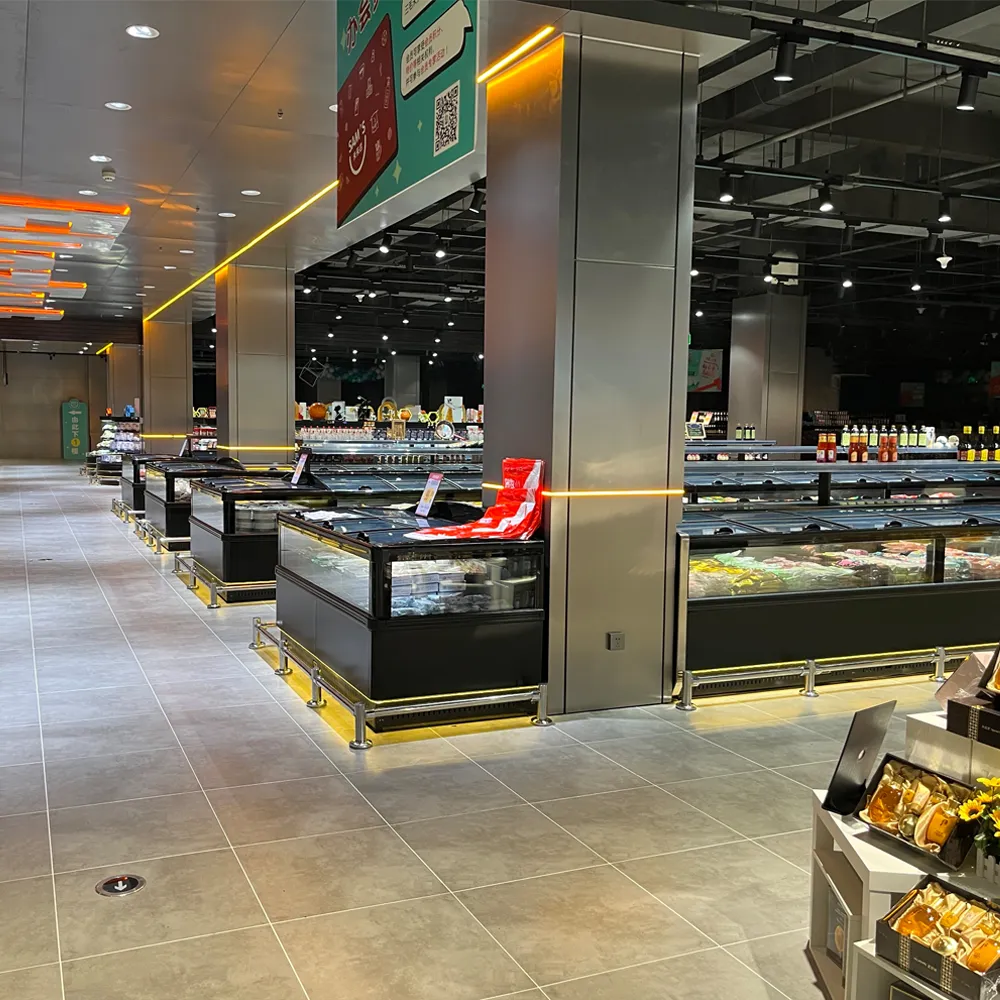

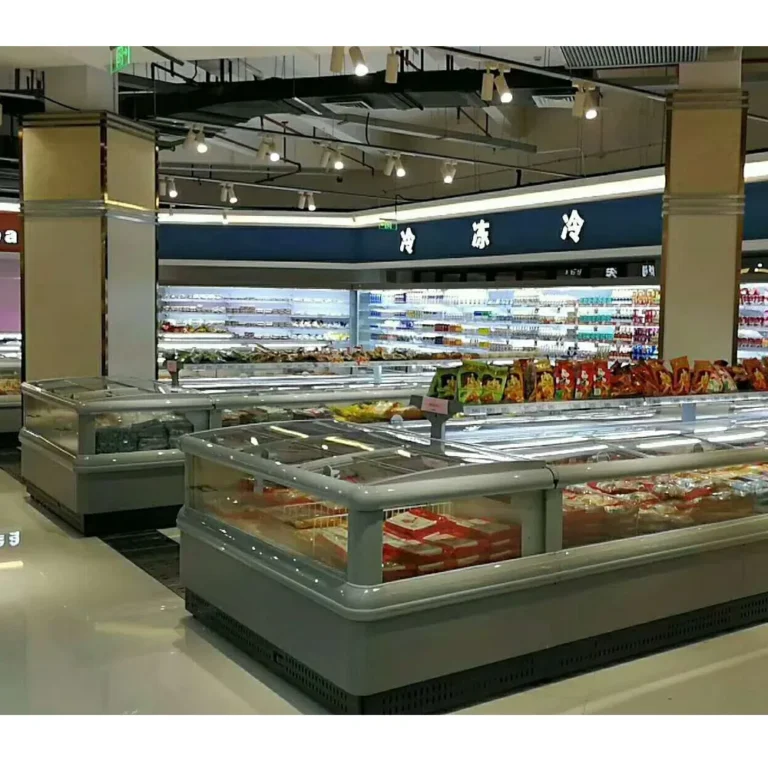

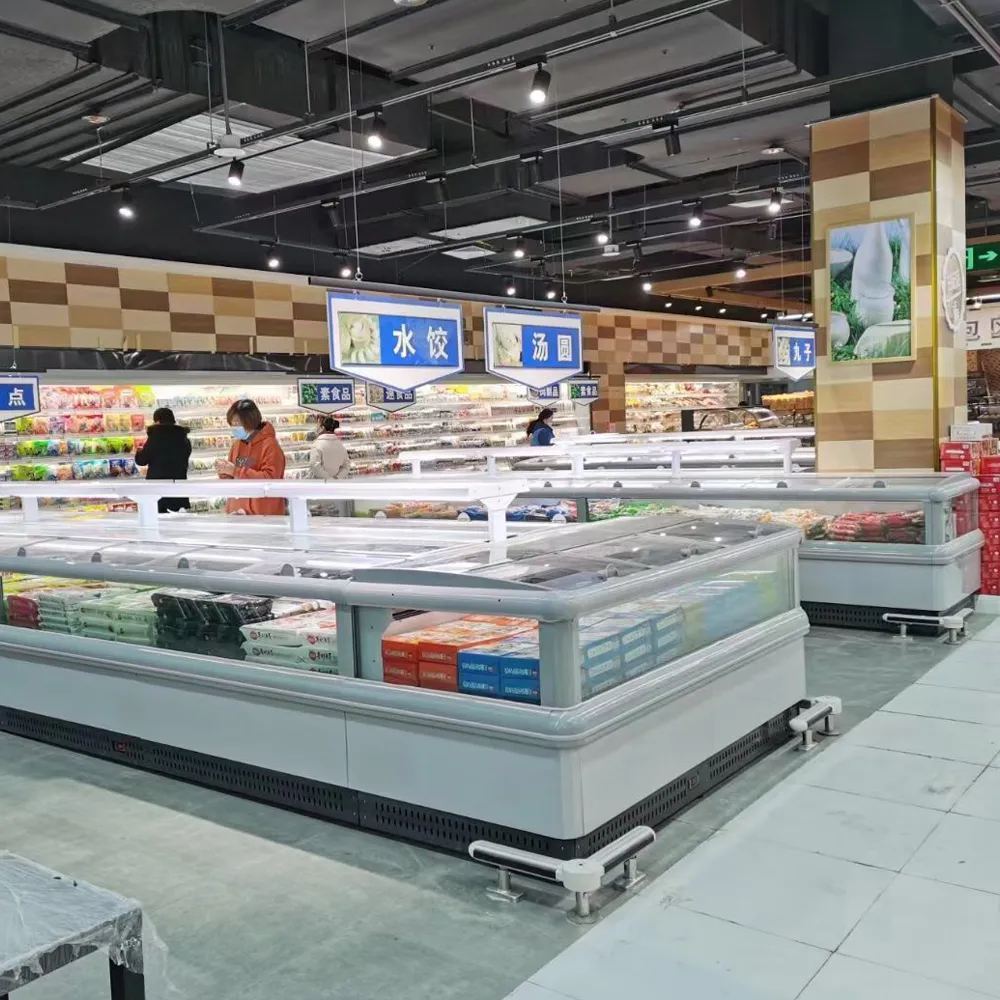

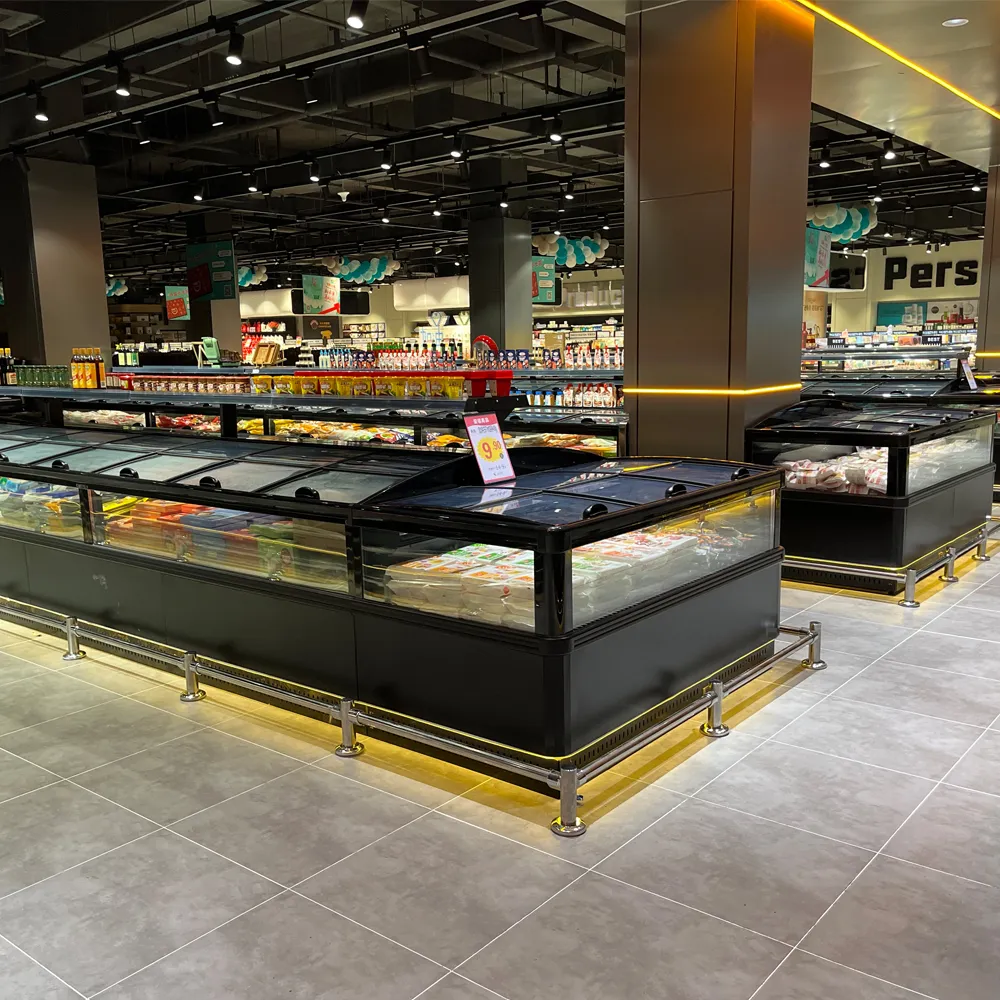

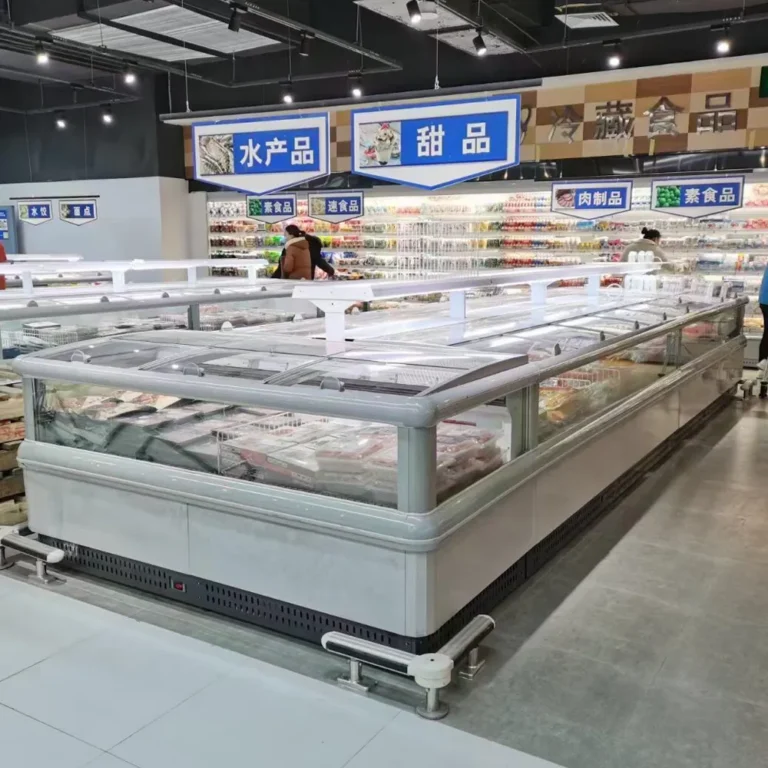

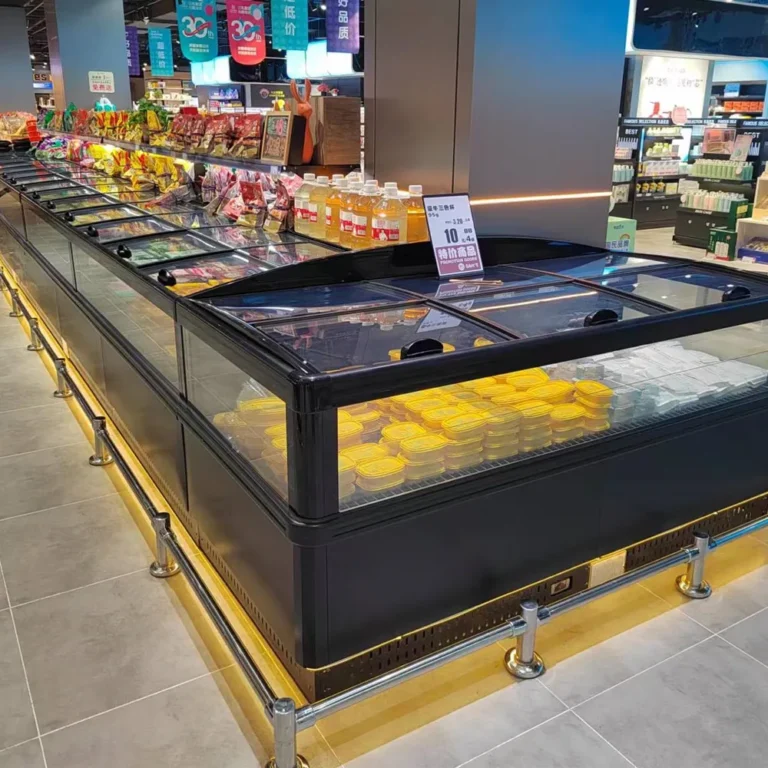

More Pictures Of Remote Double-sided Air Outlet Island Freezer
Packaging&Shipping
FAQ
1. Why is the temperature range for all models set at -18°C?
This series is specifically engineered for frozen food preservation. The -18°C standard ensures that products like quick-frozen meats, seafood, and ice cream remain at a stable, deep-freeze temperature to prevent bacterial growth and maintain texture/flavor according to international food safety standards.
2. What are the benefits of the "Remote" (split-type) system compared to plug-in units?
The “Remote” design means the condensing unit is installed outdoors. This offers three major advantages:
Zero Noise: No compressor noise inside the shopping area, providing a better environment for customers.
Heat Management: Heat is rejected outdoors, significantly reducing the load on your store’s air conditioning system.
Maximum Volume: Without an internal compressor, the cabinet offers a much larger effective volume (up to 1680L for the XIF-R3818).
3. How should I calculate the total installation length including the end panels?
The “Length” listed in the table (e.g., 1875mm) refers to the cabinet body. You must add the End Panel thickness (60mm per side) to your layout planning.
Calculation Formula: Total Length = Cabinet Length + (60mm $\times$ 2)
Example for XIF-R1916: $1875\text{mm} + 120\text{mm} = 1995\text{mm}$ total footprint.
4. What is the specific purpose of the "MT" (960mm) models?
The XIF-R1016MT and XIF-R1018MT are designated as Crown Cabinets (or Head Cabinets). Their short length and specific width are designed to fit at the ends of a back-to-back freezer line, creating a complete “island” look. This maximizes 360-degree product visibility and optimizes supermarket foot traffic.
5. How do I choose between the 1550mm and 1810mm width series?
The choice depends on your floor space and inventory needs:
1550mm Width: Ideal for standard supermarket aisles, balancing high capacity with comfortable walking space for shoppers.
1810mm Width: Designed for “Hypermarkets” or high-volume warehouse stores. It provides a massive Display Area (up to 5.32m²) to showcase more SKU varieties in a single footprint.
