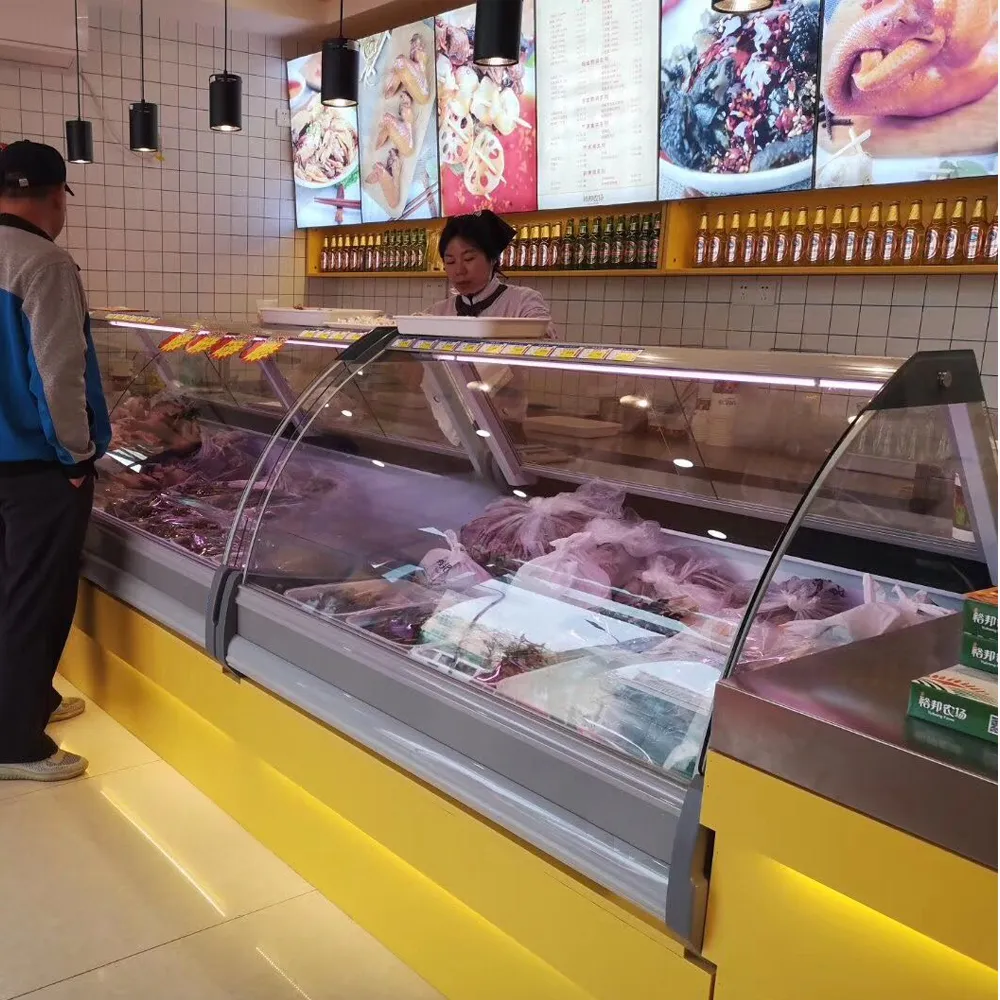

Remote Curved Glass Deli Showcase Counter
Versatile Solutions for Various Fresh Food Categories
This chiller is suitable for display goods like: bento, chicken, steak, sandwich, sushi, delicatessen, fruits, vegetables and so on.
Deli Showcase Counter Brief Introduction
- Temperature Range：-1~5℃
- Compressor Outside of Counter
- Digital Temperature Controller
- Dixell Controller
- Bright LED Lighting
- Endless Spliced of Length
- Brand Condensing Units
- Adjustable Leveling Legs
- Max Product Visibility
- Customizable Color Options
Products Details

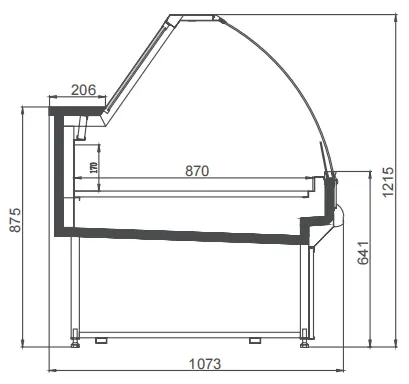

Parameter of Remote Curved Glass Deli Showcase Counter
| Model | External Dimensions (mm) | Temperature Range(℃) | Effective Volume(L) | Display Area(M2) | Input power(W) | |||
|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Height Armrest | |||||
| XSC-R1311A | 1250 | 1075 | 1215 | 640 | -1~5 | 210 | 0.8 | 230 |
| XSC-R1911A | 1875 | 1075 | 1215 | 640 | -1~5 | 320 | 1.12 | 410 |
| XSC-R2511A | 2500 | 1075 | 1215 | 640 | -1~5 | 425 | 1.45 | 540 |
| XSC-R3811A | 3750 | 1075 | 1215 | 640 | -1~5 | 635 | 2.02 | 800 |
| XSC-R1311AS | 1250 | 1075 | 1215 | 640 | -1~5 | 210 | 0.8 | 230 |
| XSC-R1911AS | 1875 | 1075 | 1215 | 640 | -1~5 | 320 | 1.12 | 410 |
| XSC-R2511AS | 2500 | 1075 | 1215 | 640 | -1~5 | 425 | 1.45 | 540 |
| XSC-R3811AS | 3750 | 1075 | 1215 | 640 | -1~5 | 635 | 2.02 | 800 |
| XSC-R1313ASWJ 90° | 1230 | 1230 | 1215 | 640 | 4~10 | 170 | 0.85 | 70 |
| End panel (side) | Thickness:40mm/side | |||||||
Key Features of Remote Curved Glass Deli Showcase Counter
Benefits
1.Working temperature from -1℃~5℃ .
2.Operating environment class:25℃/60%R.H.
3.Front glass fixed.
4.Electronic temperature controller.
5.LED light mounted on top.
Standard Features
1.Worktop in stainless steel.
2.Exterior and interior steel sheet preparinted.
3.Exposure and protection evaporator in expoxy sinish plate.
4.CFC-free insulation.
5.Leg levelers.
6.Polystyrene injected end walls,40mm thickness
Optional Features
1.Stainless steel exterior&interior or choice of exterior&interior colors.
2.High duty wheels with brake.
3.Joinable to make a line or different angle.
Color Can Be Customized
Customizable exterior and interior colors available to perfectly match your brand’s aesthetic
Accessories
LED Lights
Make food more attractive
Dixell Temperature Controller
Automatic temperature adjustment
Tray optional
Tray for holding different foods
Thickened Copper Tube
Conveying cooling to Chiller
Danfoss Solenoid Valve
Control and regulation of fluids and gases
Danfoss Expansion Valve
Control the flow of refrigerant

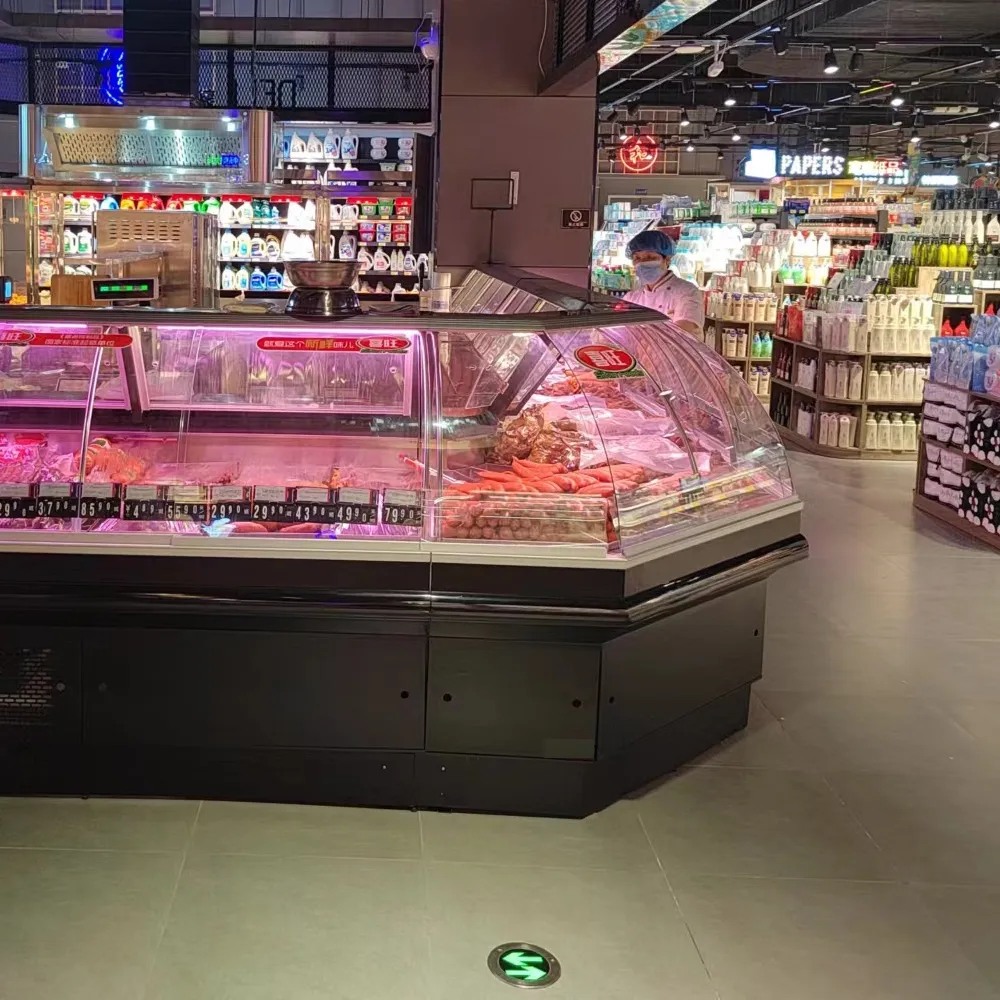

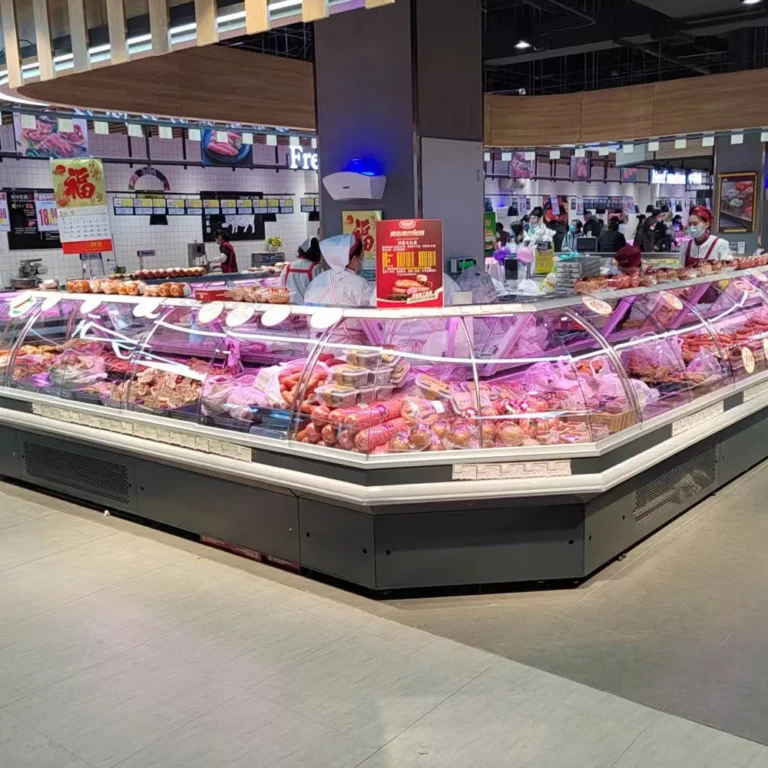

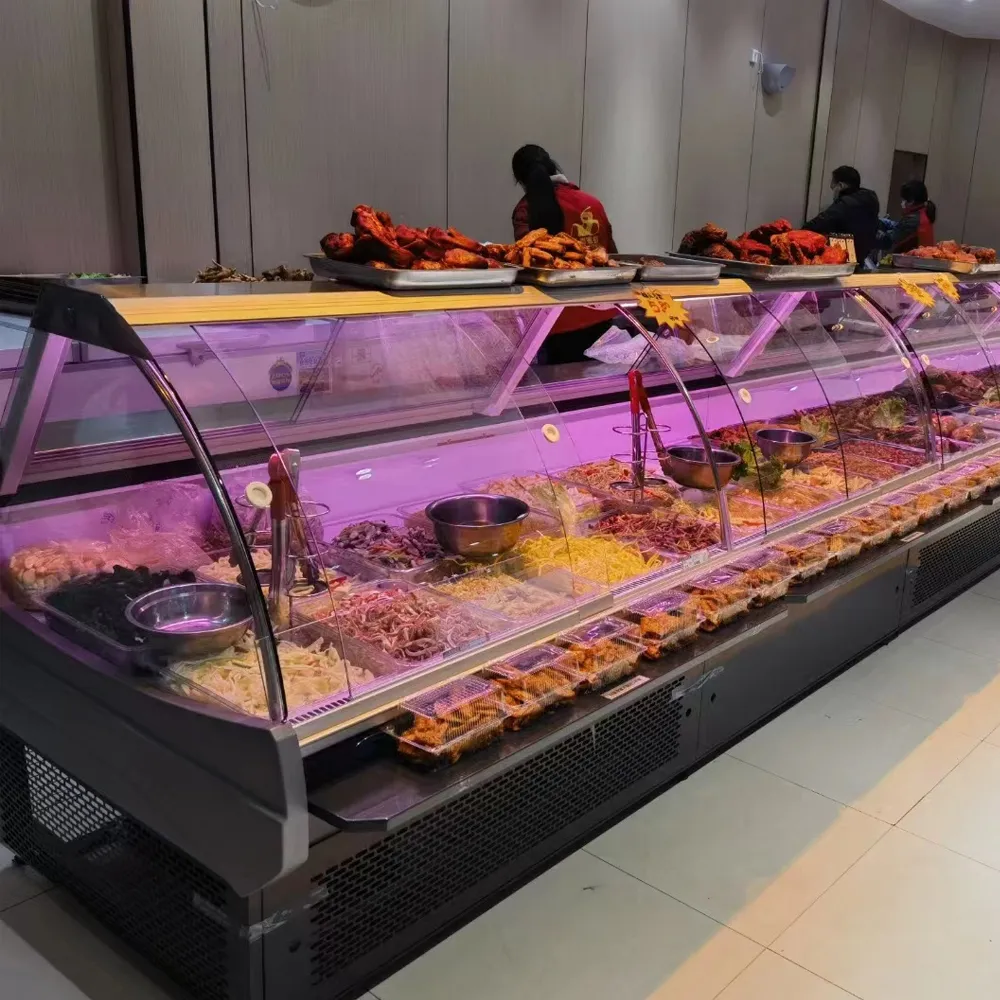

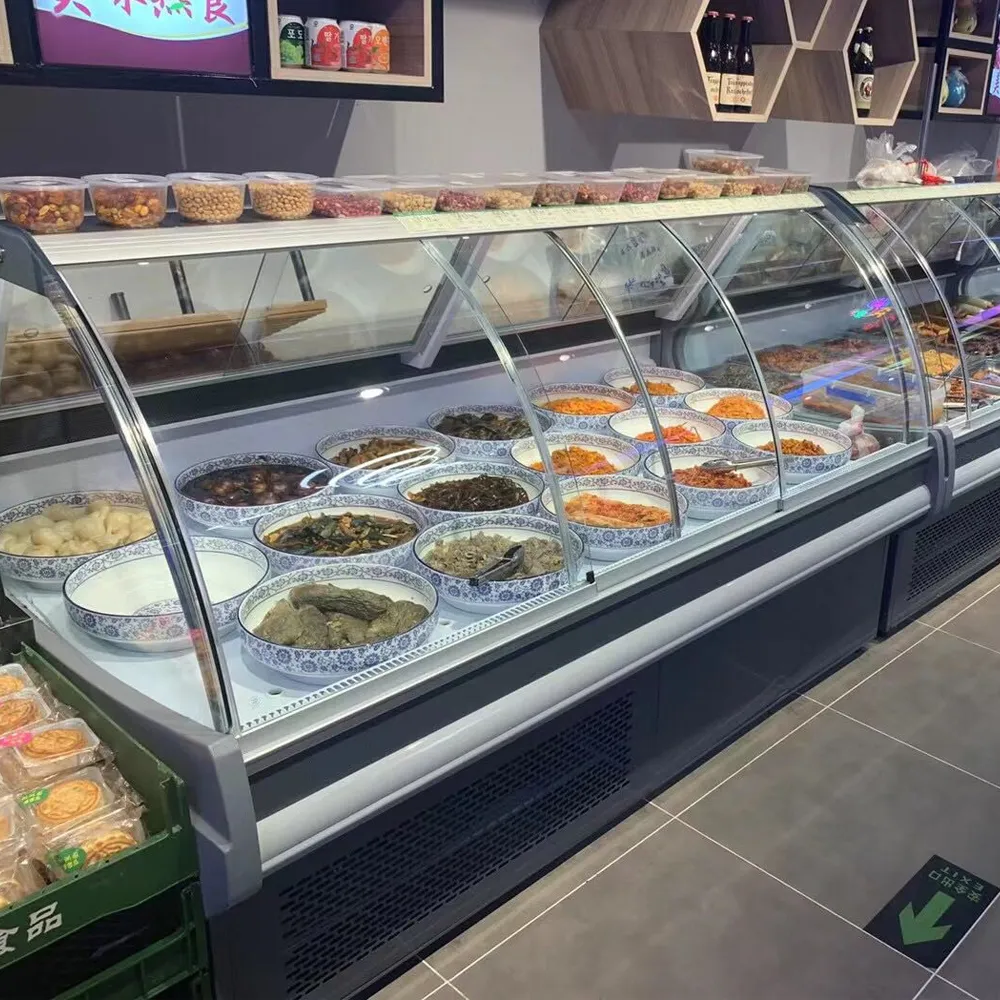

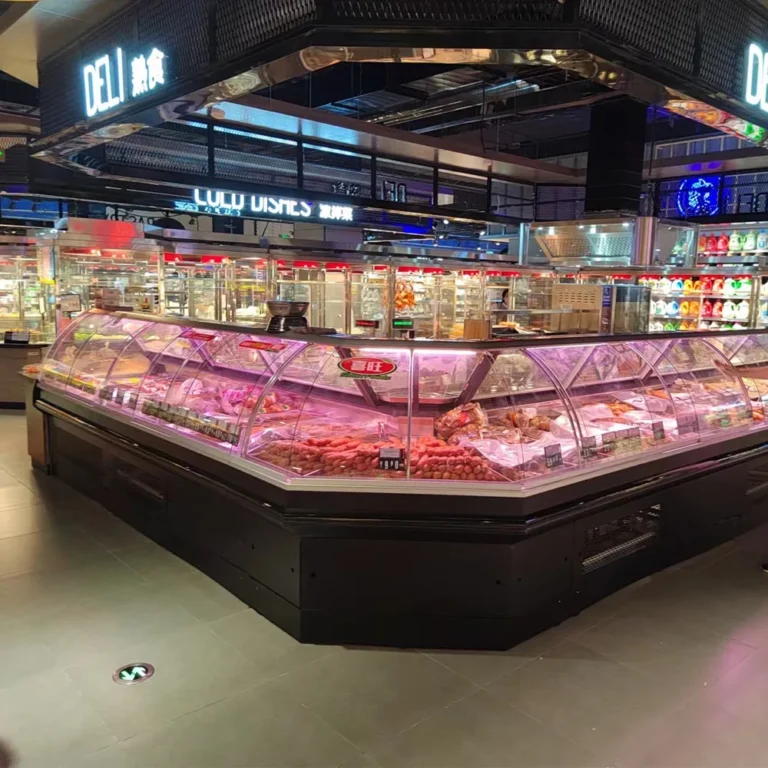

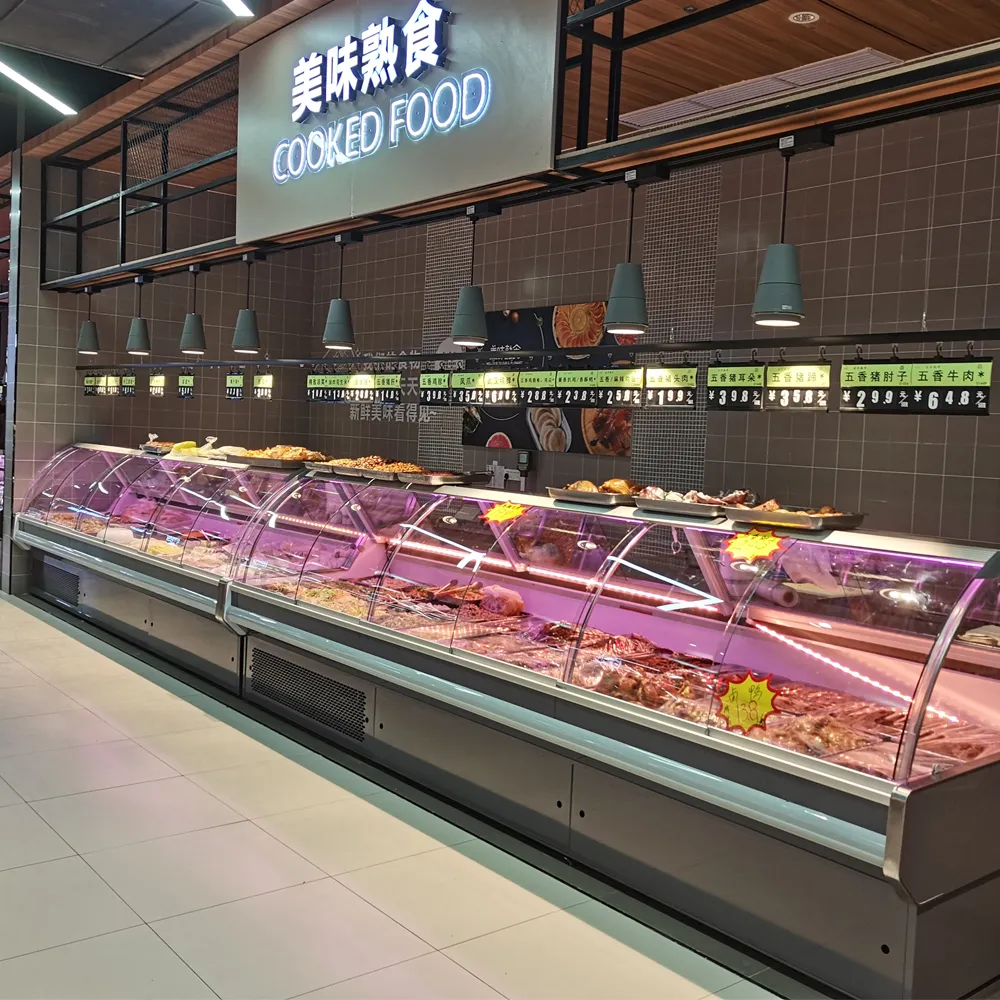

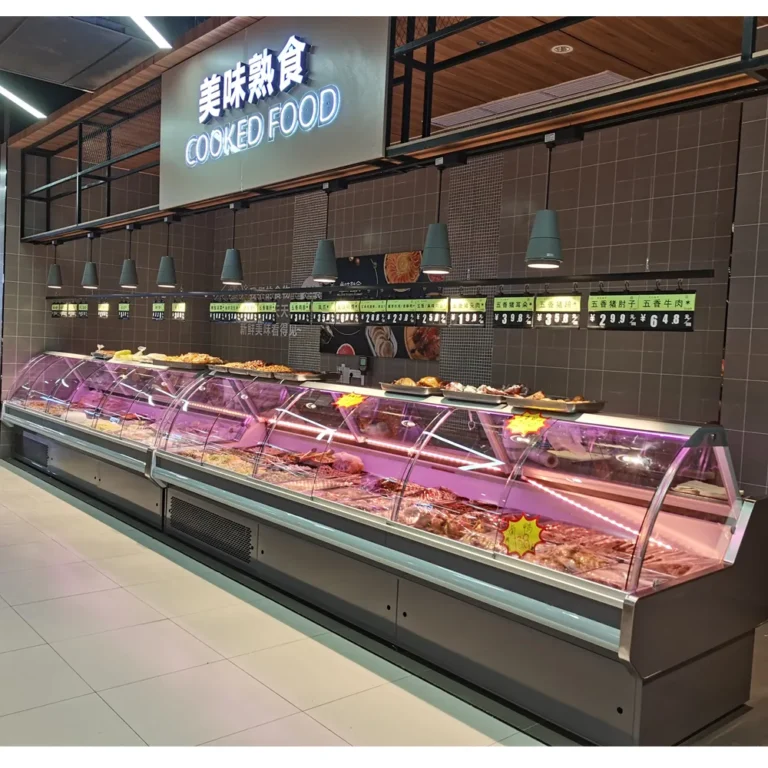

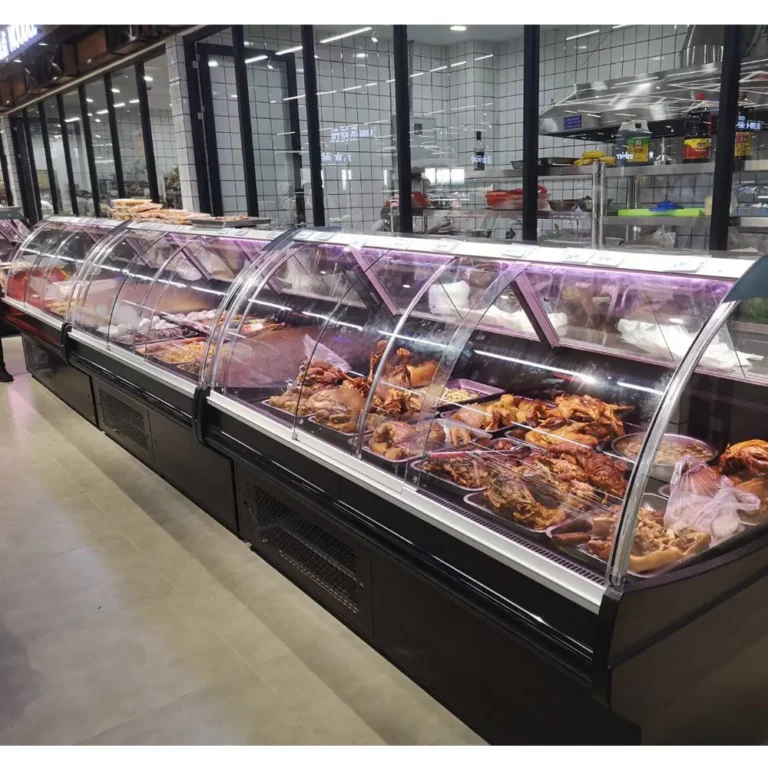

More Pictures Of Remote Curved Glass Deli Showcase Counter
Packaging&Shipping
FAQ
1. What are the advantages of a "Remote Type" system compared to a "Plug-in" unit?
The remote system places the compressor condensing unit outside your building. This offers three main benefits: zero noise inside the service area, no heat discharge into your shop (reducing air conditioning costs), and increased storage capacity within the cabinet itself since the motor isn’t taking up space.
2. Does the curved glass feature an anti-fog or heating function?
Yes. To ensure maximum product visibility, our curved glass panels are designed with ventilation cooling technology or optional heating wires. This prevents condensation from forming on the exterior of the glass during high-humidity days, keeping your deli items crystal clear for customers.
3. How do I maintain the correct temperature for different types of cooked food?
The unit features a digital temperature controller (typically set between -1°C to 5°C for meat or 4°C to 10°C for general deli items). It uses a forced-air cooling system to ensure even temperature distribution. We recommend not blocking the air suction vents with food trays to maintain optimal airflow.
4. Is the glass easy to clean for daily operations?
Absolutely. The showcase is designed with hygiene in mind. The front curved glass features a lift-up or tilt-forward mechanism (depending on the specific sub-model), allowing staff to easily clean the interior base and the inside of the glass without reaching over the counter.
5. What are the installation requirements for the drainage and piping?
Since this is a split-type unit, it requires professional installation. You will need to provide a drainage outlet near the cabinet for condensation water and a dedicated copper pipe route to the outdoor unit. It is recommended to have a certified HVAC technician handle the refrigerant charging and electrical connections.
