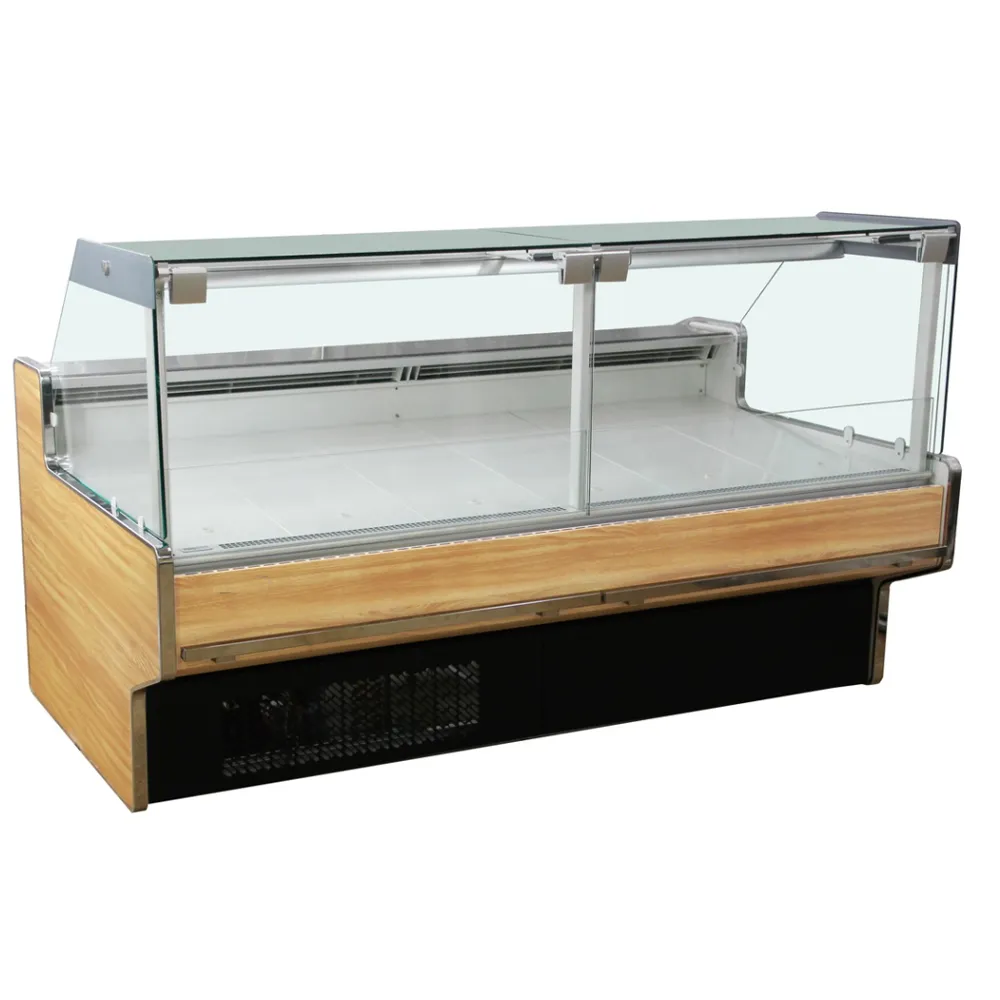

Plug-in Luxury Flat Glass Deli Showcase Counter with Storage
Versatile Solutions for Various Fresh Food Categories
This chiller is suitable for display goods like: bento, chicken, steak, sandwich, sushi, delicatessen, fruits, vegetables and so on.
Deli Showcase Counter Brief Introduction
- Temperature Range：-1~5℃
- Compressor Inside of Counter
- Digital Temperature Controller
- Dixell Controller
- Bright LED Lighting
- Endless Spliced of Length
- Refrigerant: R404A/R290
- Adjustable Leveling Legs
- Max Product Visibility
- Customizable Color Options
Products Details

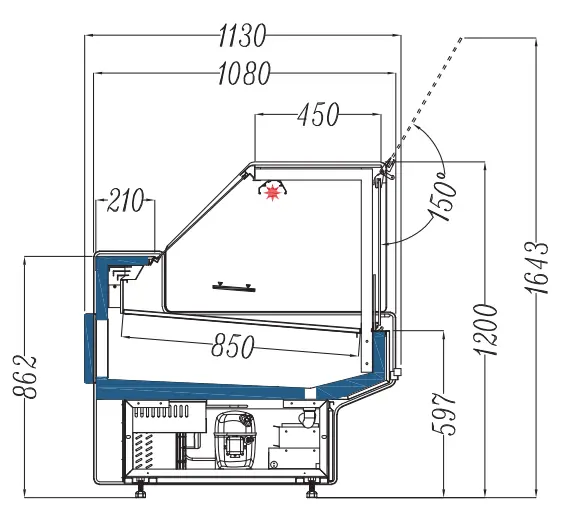

Parameter of Plug-in Luxury Flat Glass Deli Showcase Counter with Storage
| Model | External Dimensions (mm) | Temperature Range(°C) | Effective Volume(L) | Display Area(M2) | Input power(W) | Refrigerant | |||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Height Armrest | ||||||
| XSC-P1311RAN | 1330 | 1130 | 1220 | 597 | -1 ~ 5 | 139 | 1.17 | 600 | R290 |
| XSC-P1911RAN | 1960 | 1130 | 1220 | 597 | -1 ~ 5 | 167 | 1.43 | 700 | R290 |
| XSC-P2511RAN | 2580 | 1130 | 1220 | 597 | -1 ~ 5 | 222 | 1.87 | 900 | R290 |
| XSC-P3811RAN | 3830 | 1130 | 1220 | 597 | -1 ~ 5 | 334 | 2.81 | 1150 | R290 |
Key Features of Plug-in Luxury Flat Glass Deli Showcase Counter with Storage
Benefits
1.Environmentally-friendly R-290 refrigerant that has zero ozone depletion.
2.Operating environment class:25°C/60%R.H.
3.Added air duct design to make sure foods well cooled.
4.Refrigerated under storage with doors.
5.Electronic temperature controller.
6.LED light mounted on top.
7.Front glass can be opend.
8.Easy to install ,”plug and play” solution.
Standard Features
1.Intermediate glass shelf.
2.Worktop in stainless steel.
3.Exterior and interior steel sheet preparinted.
4.Copper tube aluminum fin evaporator.
5.CFC-free insulation.
6.Leg levelers.
7.Sheet metal foam side panel,40mm thickness.
Optional Features
1.Stainless steel exterior&interior or choice of exterior&interior colors.
2.High duty wheels with brake.
3.Joinable to make a line or different angle.
4.Option for Front anti-condensation fan.
Color Can Be Customized
Customizable exterior and interior colors available to perfectly match your brand’s aesthetic
Accessories
Brand Compressor
Save energy
LED Lights
Make food more attractive
Dixell Temperature Controller
Automatic temperature adjustment
Tray optional
Tray for holding different foods
Thickened Copper Tube
Conveying cooling to Chiller
Danfoss Solenoid Valve
Control and regulation of fluids and gases
Danfoss Expansion Valve
Control the flow of refrigerant

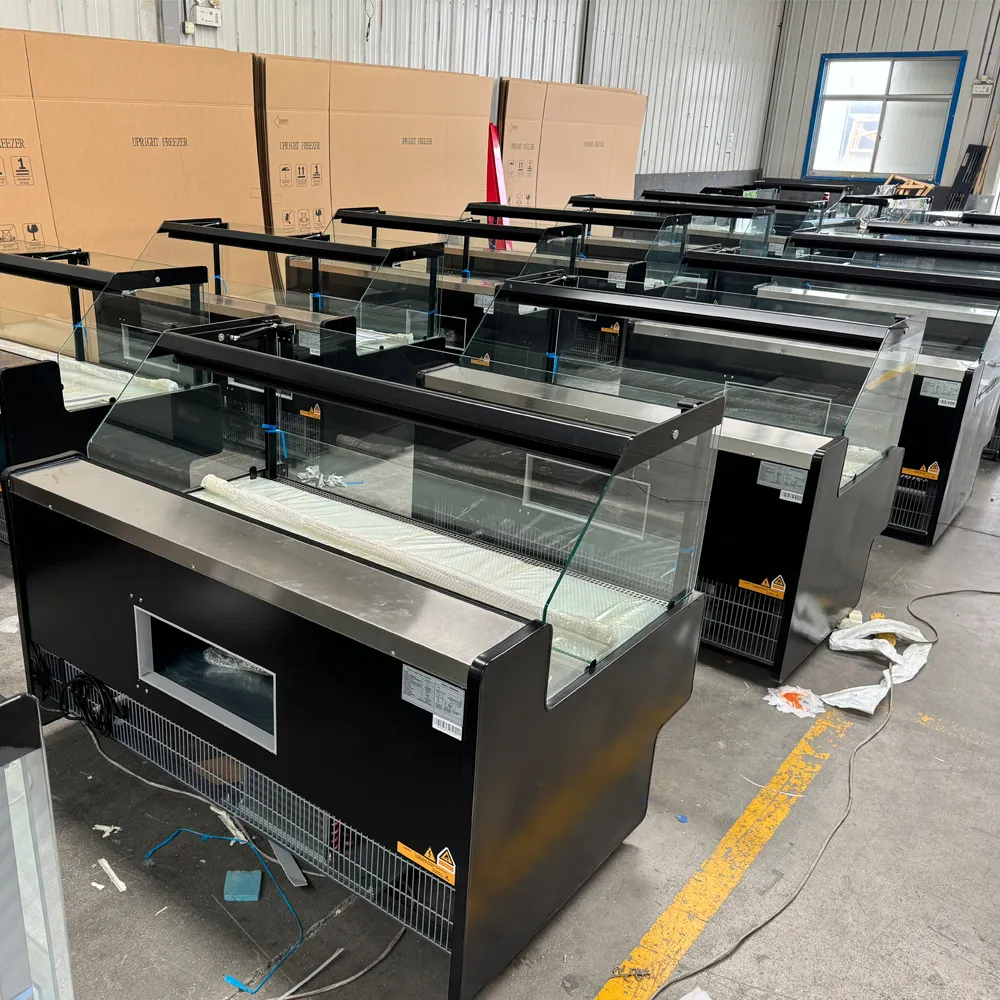

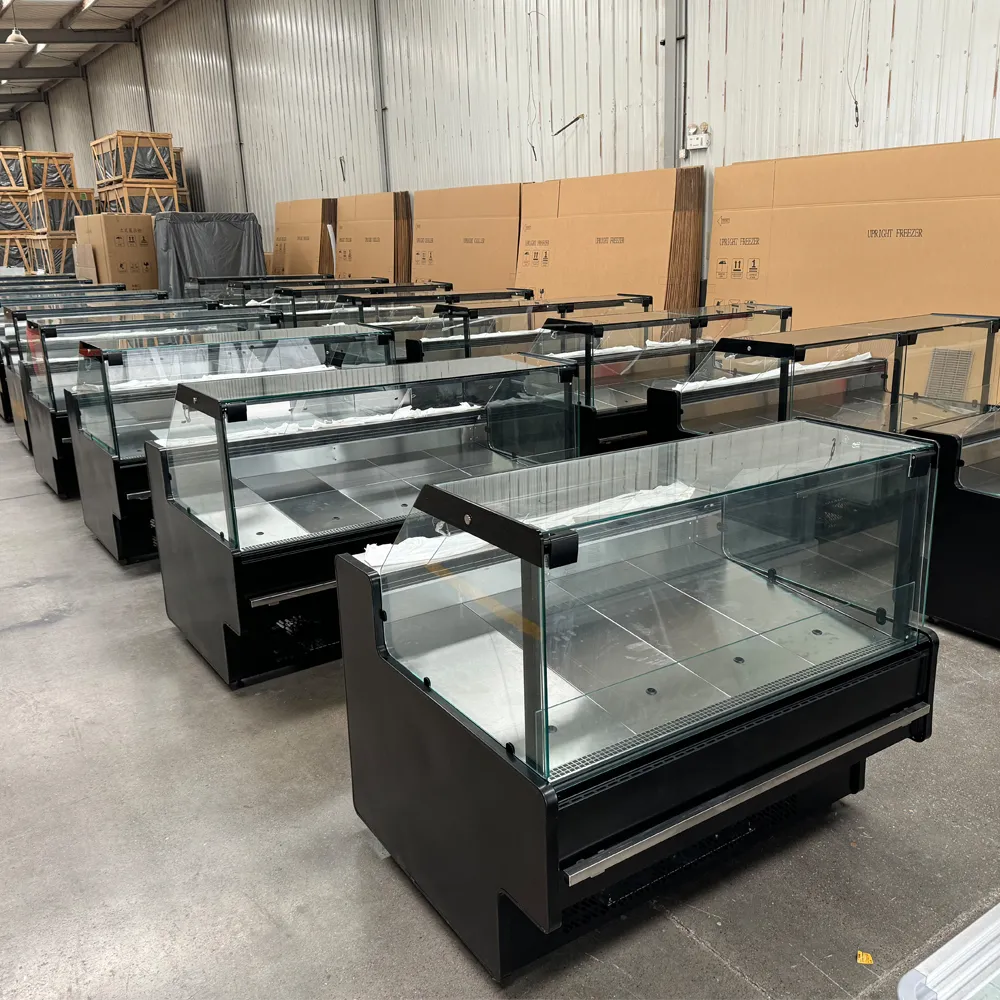

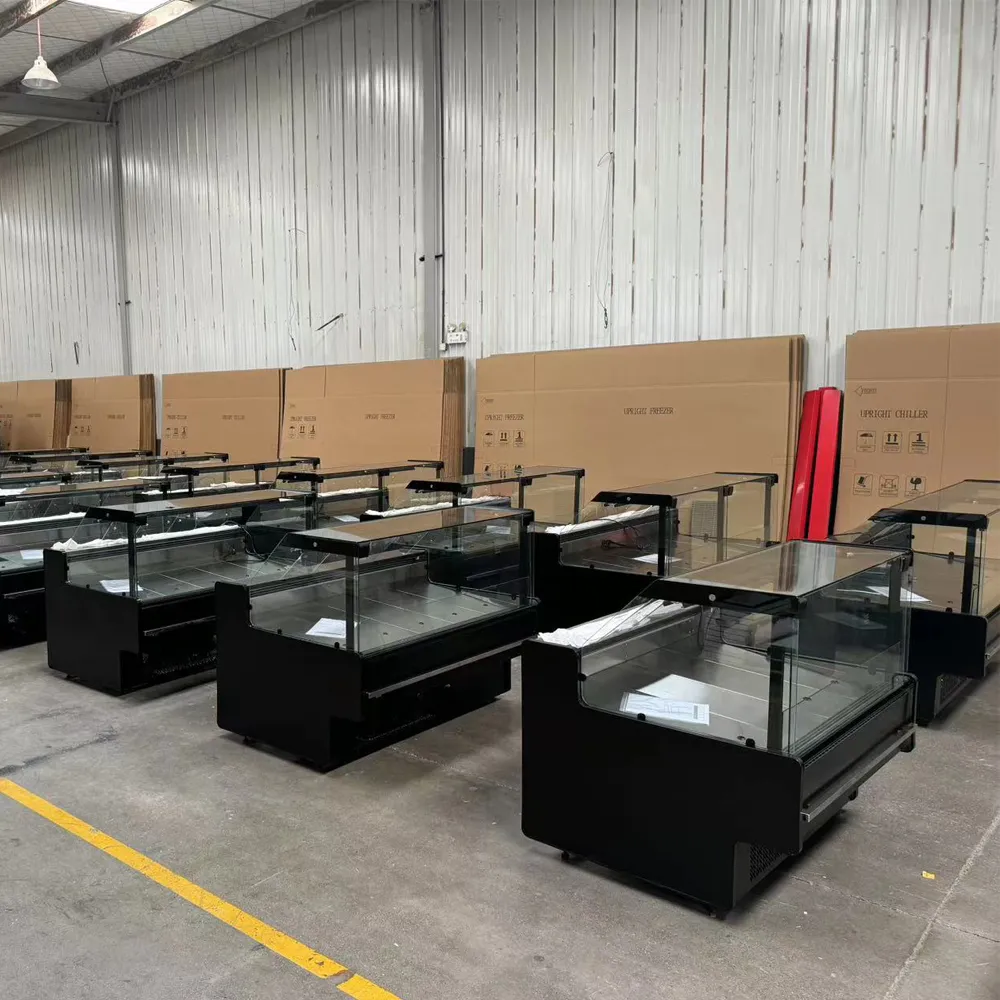

More Pictures Of Plug-in Luxury Flat Glass Deli Showcase Counter with Storage
Packaging&Shipping
FAQ
Q1: What makes this "Luxury Model" different from standard deli display cases?
A: The key advantage is the “Display Top + Storage Bottom” dual-level design. The upper section features premium high-transparency glass and specialized lighting to enhance food presentation, while the lower compartment provides a spacious refrigerated area for bulk stock. This allows for quick restocking without leaving the service counter, significantly improving operational efficiency in high-traffic environments.
Q2: Will the airflow dry out delicate deli meats or prepared foods?
A: Not at all. Our units utilize a micro-pore circular airflow system. Instead of blowing harsh, dry air directly onto the products, the system gently circulates cold air to maintain a stable environment between -1°C and 5°C. This specialized cooling technology locks in moisture and prevents surface drying, ensuring your deli items stay juicy and fresh for longer periods.
Q3: How energy-efficient is this unit, considering its large size and dual functions?
A: This model is highly efficient. It uses R290 refrigerant, an eco-friendly hydrocarbon that offers superior thermodynamic properties compared to traditional refrigerants. This results in faster pull-down times and lower energy consumption. Additionally, the high-density polyurethane insulation helps maintain temperatures with minimal compressor cycling, saving you money on monthly utility bills.
Q4: Is the bottom storage area refrigerated independently?
A: The bottom storage area is integrated into the main cooling circuit. Because cold air naturally settles, the storage compartment remains at a very consistent and chilled temperature. It is designed to hold backup trays and ingredients at the same food-safety standards as the upper display area, effectively acting as a secondary refrigerator within the same footprint.
Q5: How do you handle condensation on the glass during humid days?
A: Our luxury deli cases are equipped with anti-fog technology. Depending on the specific configuration, this includes either a specialized front-air curtain or heated glass elements. This ensures that the glass remains crystal clear even in high-humidity environments, providing your customers with an unobstructed view of your gourmet offerings at all times.
