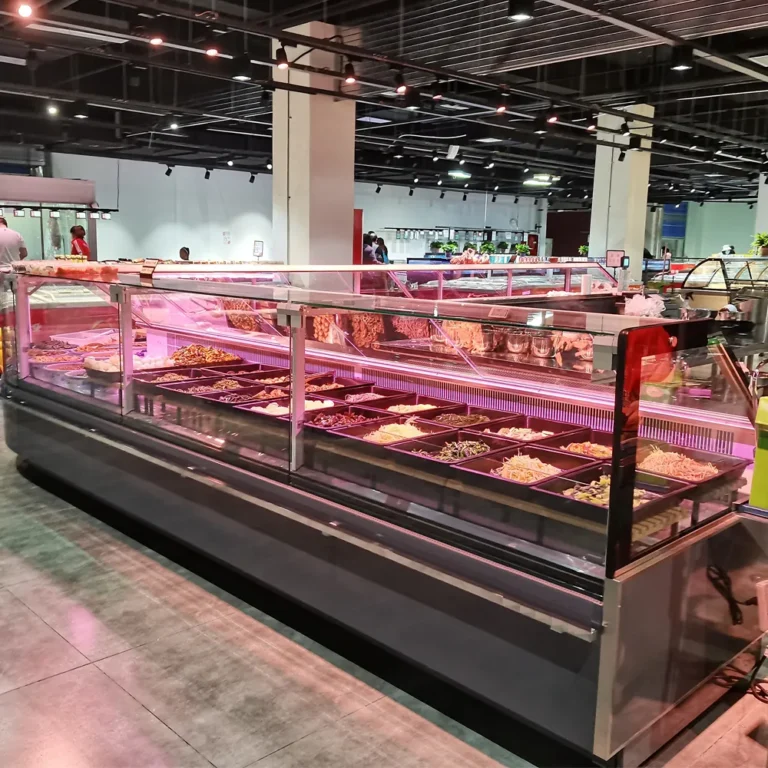

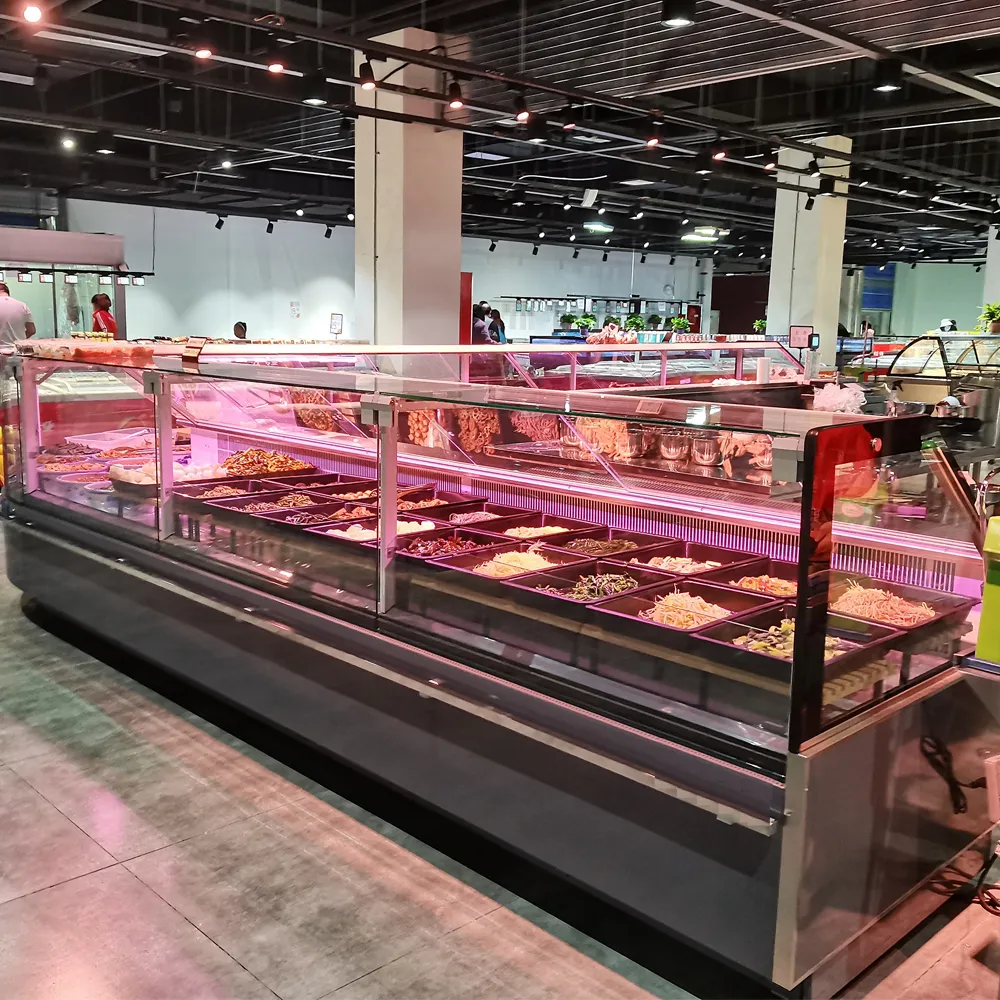

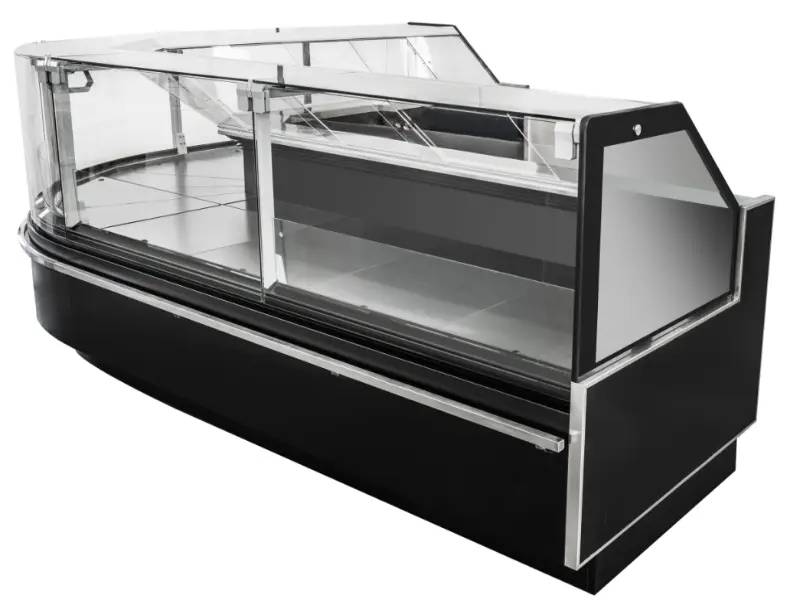

Plug-in Luxury Flat Glass Deli Showcase Counter
Versatile Solutions for Various Fresh Food Categories
This chiller is suitable for display goods like: bento, chicken, steak, sandwich, sushi, delicatessen, fruits, vegetables and so on.
Deli Showcase Counter Brief Introduction
- Temperature Range：-1~5℃
- Compressor Inside of Counter
- Digital Temperature Controller
- Dixell Controller
- Bright LED Lighting
- Endless Spliced of Length
- Refrigerant: R404A/R290
- Adjustable Leveling Legs
- Max Product Visibility
- Customizable Color Options
Products Details

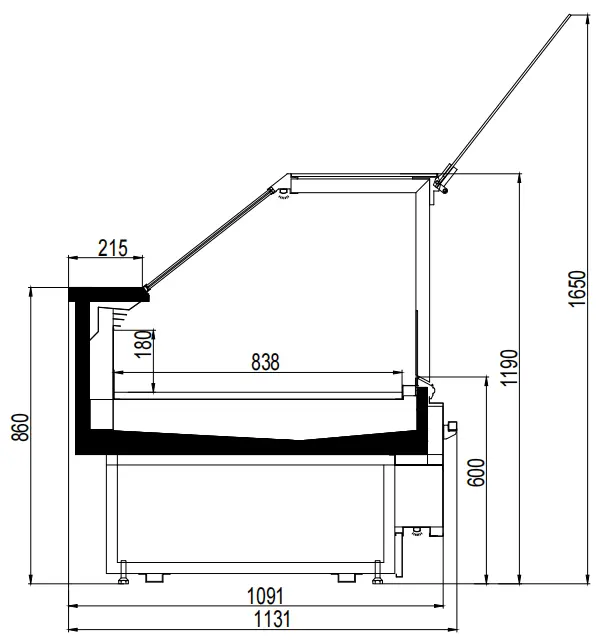

Parameter of Plug-in Luxury Flat Glass Deli Showcase Counter
| Model | External Dimensions (mm) | Temperature Range(°C) | Effective Volume(L) | Display Area(M2) | Input power(W) | Refrigerant | |||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Height Armrest | ||||||
| XSC-P1311BN | 1330 | 1135 | 1190 | 600 | -1 ~ 5 | 173 | 1.01 | 665 | R404a/R290 |
| XSC-P1911BN | 1960 | 1135 | 1190 | 600 | -1 ~ 5 | 259 | 1.43 | 710 | R404a/R290 |
| XSC-P2511BN | 2580 | 1135 | 1190 | 600 | -1 ~ 5 | 346 | 1.86 | 720 | R404a/R290 |
| XSC-P3811BN | 3830 | 1135 | 1190 | 600 | -1 ~ 5 | 519 | 2.77 | 1160 | R404a/R290 |
| XSC-P1310BN | 1330 | 960 | 1190 | 600 | -1 ~ 5 | 146 | 0.85 | 665 | R404a/R290 |
| XSC-P1910BN | 1960 | 960 | 1190 | 600 | -1 ~ 5 | 220 | 1.21 | 710 | R404a/R290 |
| XSC-P2510BN | 2580 | 960 | 1190 | 600 | -1 ~ 5 | 295 | 2.59 | 720 | R404a/R290 |
| XSC-P3810BN | 3830 | 960 | 1190 | 600 | -1 ~ 5 | 439 | 2.35 | 1160 | R404a/R290 |
Key Features of Plug-in Luxury Flat Glass Deli Showcase Counter
Benefits
1.Environmentally-friendly R4040a or R290 refrigerant.
2.Operating environment class:25℃/60%R.H.
3.Flate glass design.
4.Electronic temperature controller.
5.LED light mounted on top.
Standard Features
1.Worktop in stainless steel.
2.Exterior and interior steel sheet preparinted.
3.Exposure and protection evaporator in expoxy sinish plate.
4.CFC-free insulation.
5.Leg levelers.
Optional Features
1.Stainless steel exterior&interior or choice of exterior&interior colors.
2.High duty wheels with brake.
3.Joinable to make a line or different angle.
4.Option for Front anti-condensation fan.
Color Can Be Customized
Customizable exterior and interior colors available to perfectly match your brand’s aesthetic
Accessories
Brand Compressor
Save energy
LED Lights
Make food more attractive
Dixell Temperature Controller
Automatic temperature adjustment
Tray optional
Tray for holding different foods
Thickened Copper Tube
Conveying cooling to Chiller
Danfoss Solenoid Valve
Control and regulation of fluids and gases
Danfoss Expansion Valve
Control the flow of refrigerant

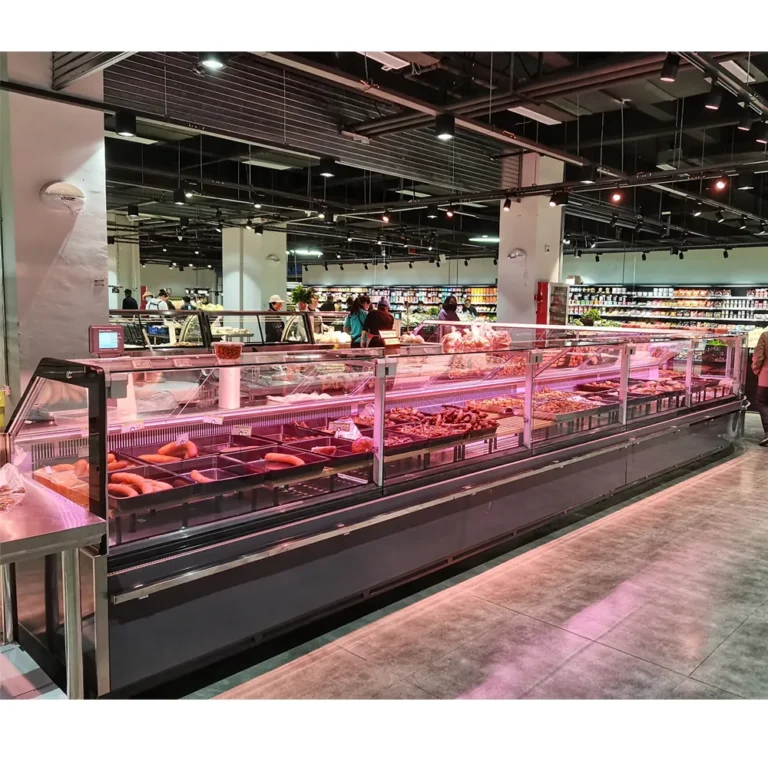

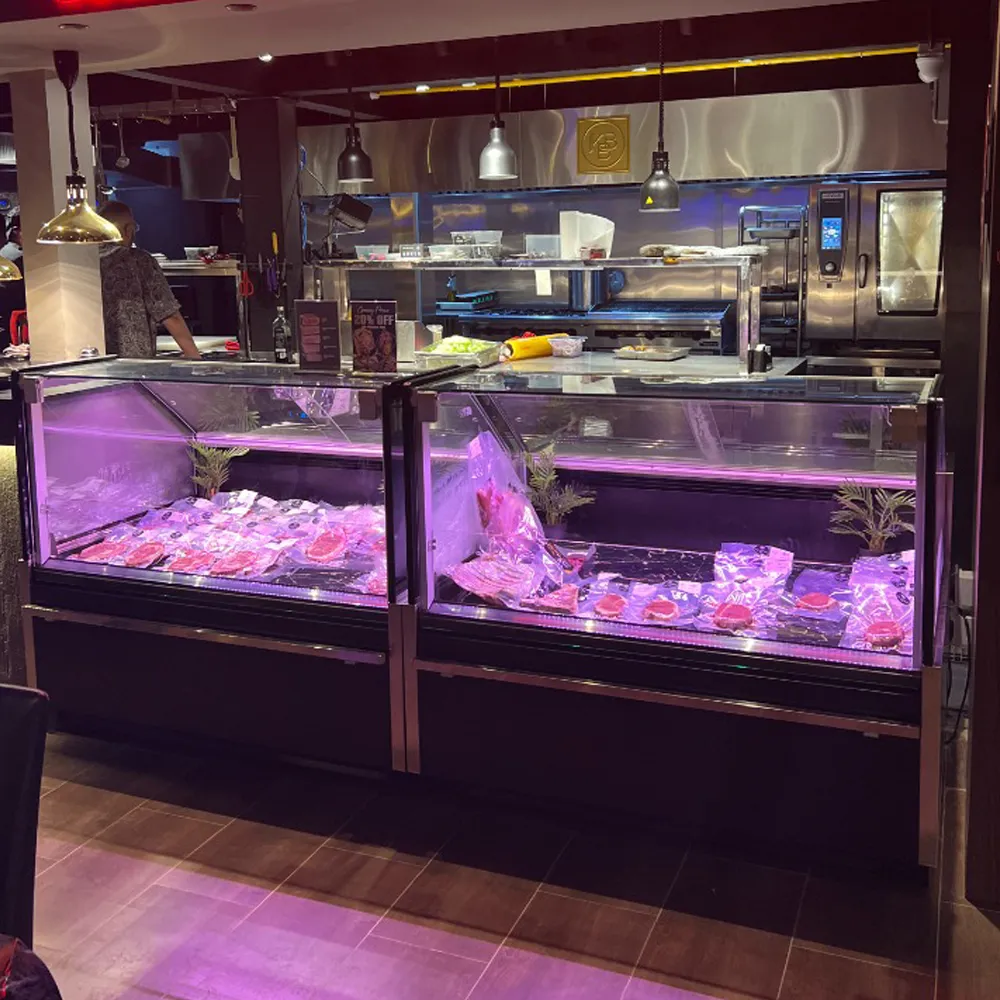

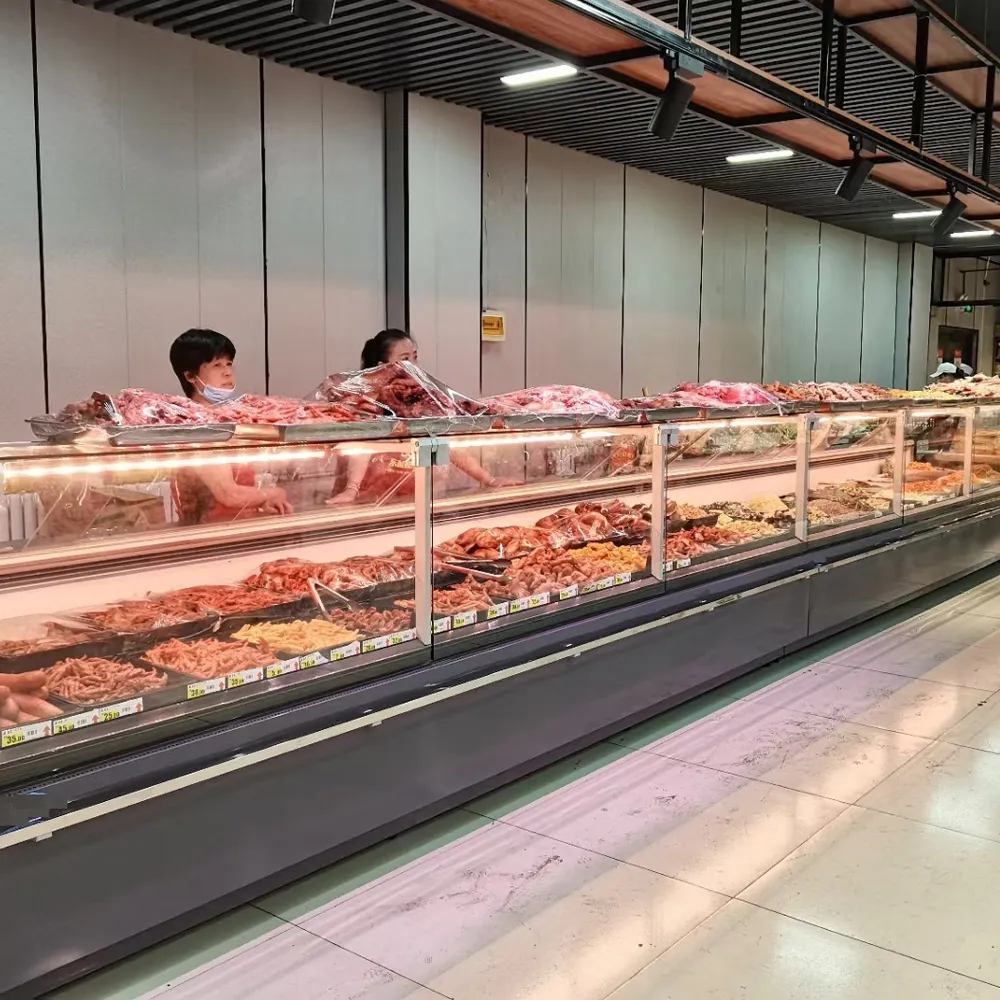

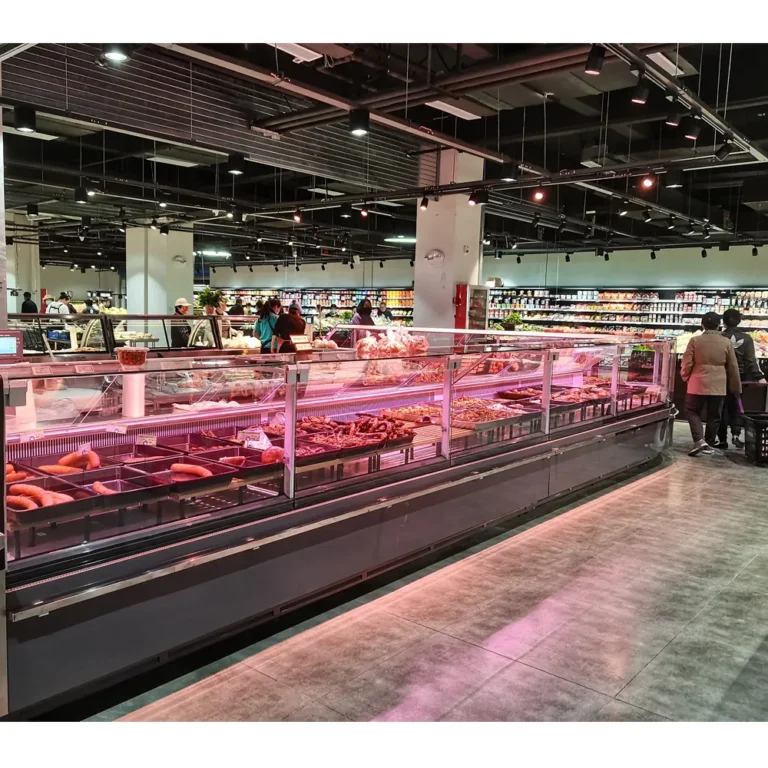

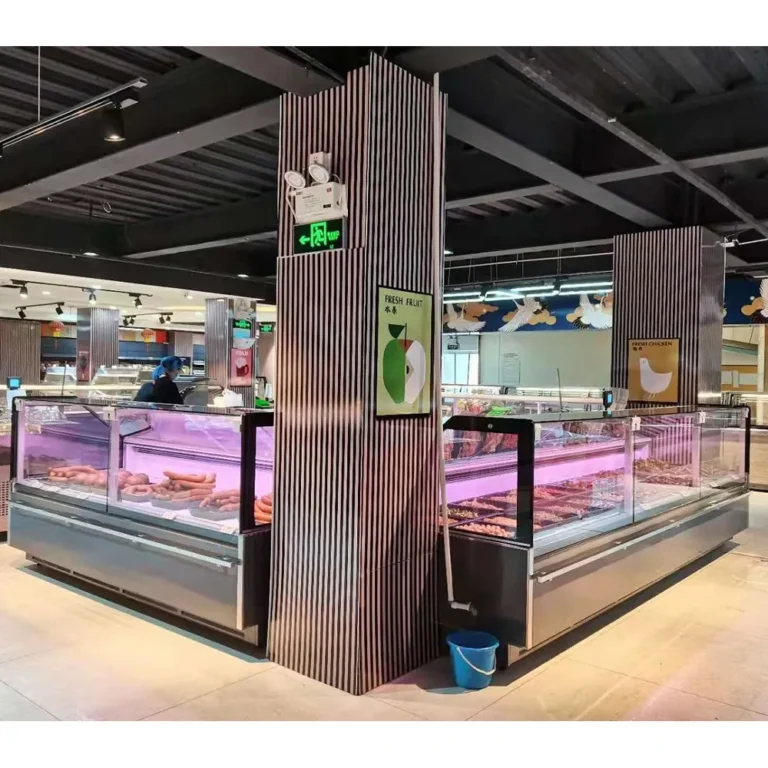

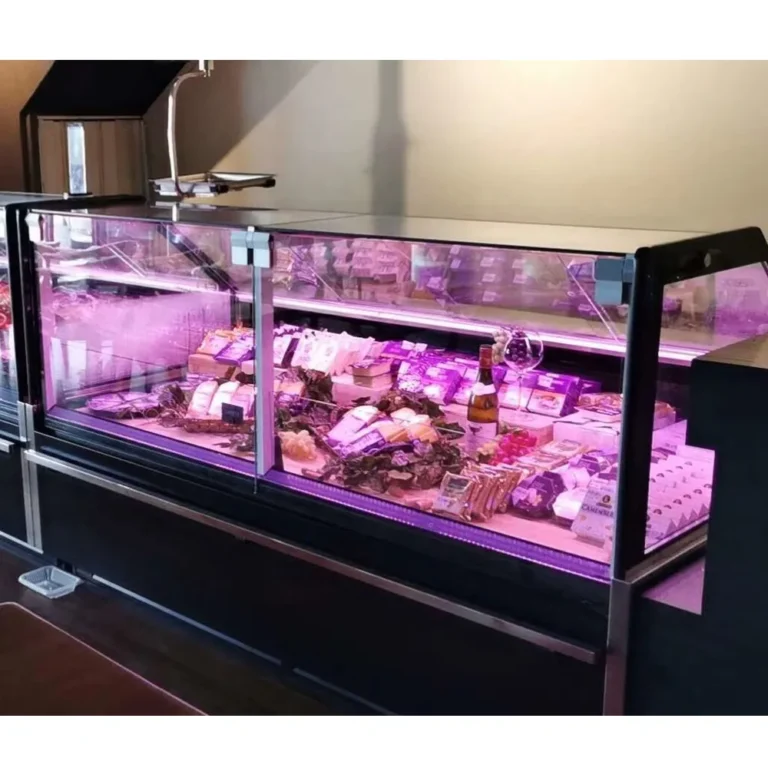

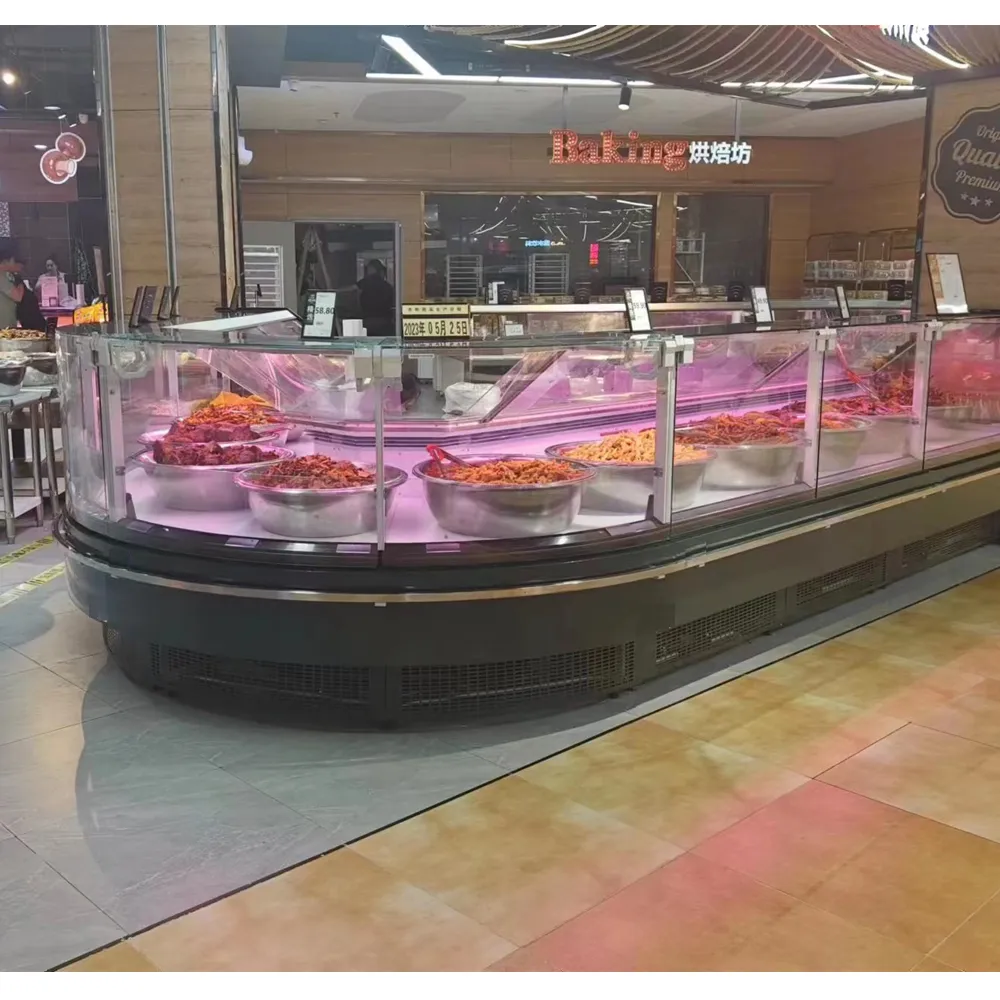

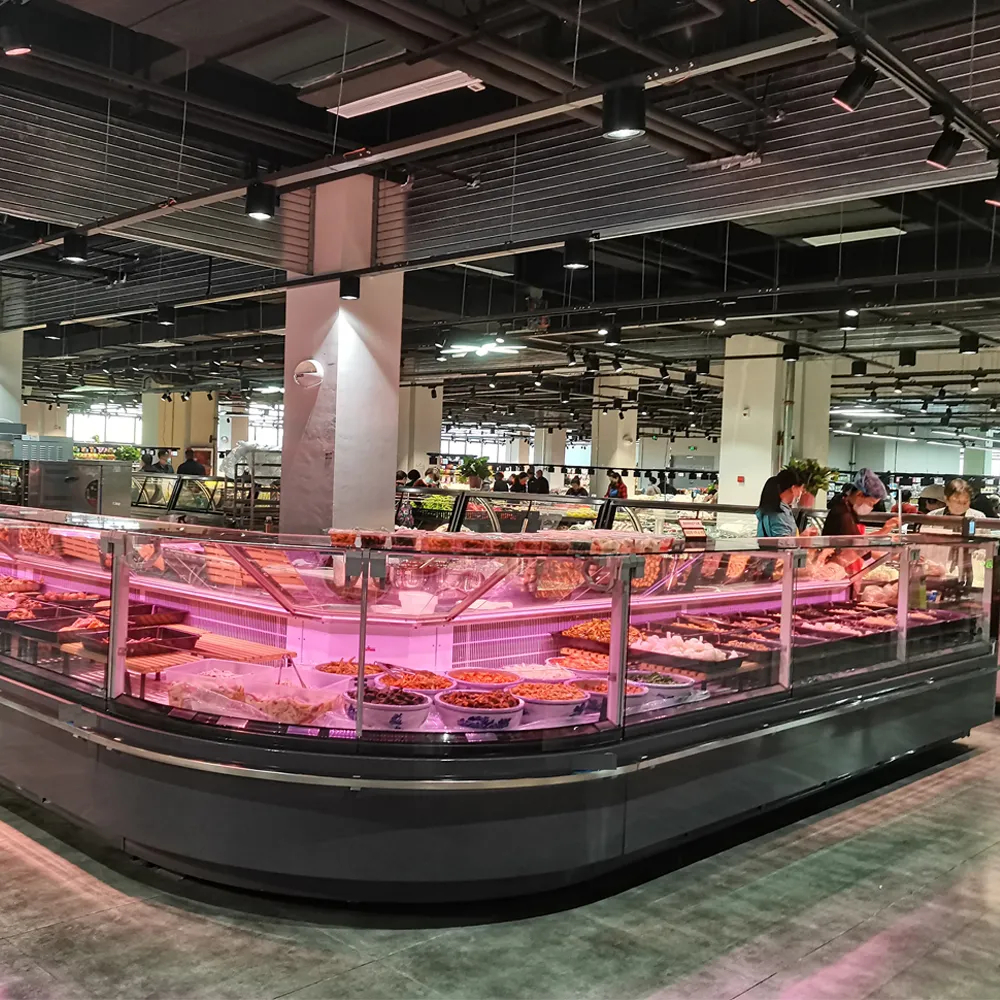

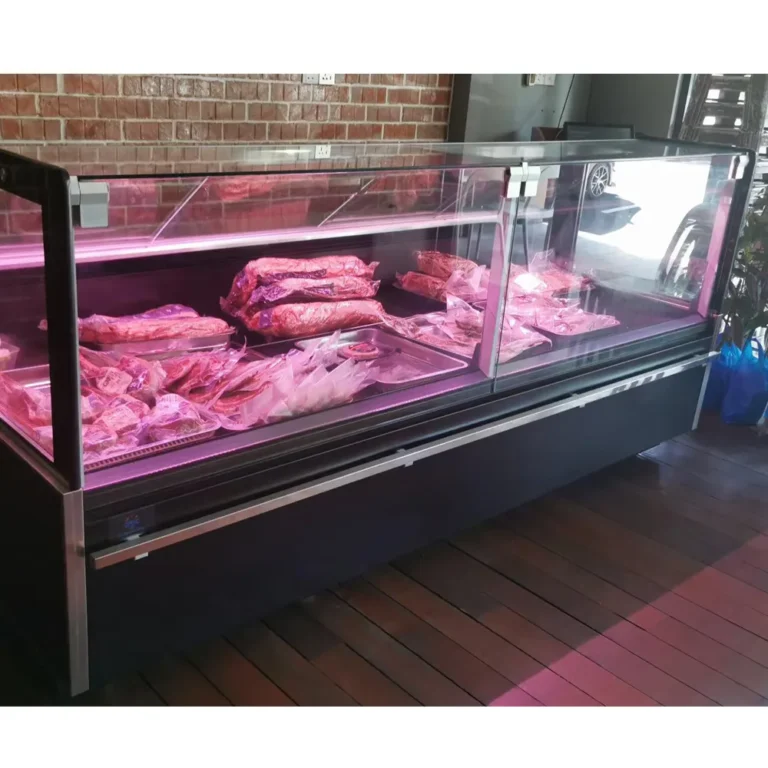

More Pictures Of Plug-in Luxury Flat Glass Deli Showcase Counter
Packaging&Shipping
FAQ
Q1: What is the operating temperature range for these deli display units, and is it adjustable?
A: All models in this series operate within a temperature range of -1°C to 5°C. This range is specifically designed to maintain the freshness and safety of cooked foods (deli meats, prepared dishes, etc.) while preventing freezing. The temperature can be adjusted via the integrated digital controller.
Q2: How do I choose between the "11BN" and "10BN" series?
A: The primary difference lies in the Width (Depth) of the unit.
The XSC-Pxxx11BN series has a wider profile (1135mm), offering a larger effective volume and display area.
The XSC-Pxxx10BN series is more compact with a width of 960mm, making it ideal for stores with limited floor space or narrower aisles.
Q3: Does the cabinet require a specific type of refrigerant?
A: These units are versatile and designed to be compatible with both R404a and R290 refrigerants. R290 is an eco-friendly hydrocarbon refrigerant with a lower Global Warming Potential (GWP), while R404a is a standard reliable choice for commercial refrigeration.
Q4: What is the "Height Armrest" specification, and why is it standard at 600mm?
A: The Height Armrest (600mm) refers to the ergonomic height from the floor to the customer-facing ledge/shelf. This height is standardized across all models to ensure a comfortable viewing and reaching experience for customers while maintaining the structural integrity of the straight glass canopy.
Q5: Are these units energy-efficient for large-scale displays?
A: Yes. Even the largest model (XSC-P3811BN), which offers a massive 519L capacity and a 3.8-meter length, has a controlled input power of only 1160W. The balance between display area (2.77m²) and power consumption makes these units highly efficient for high-volume retail environments.
