Plug-in Lower Vision Windows Combined Island Freezer
Versatile Solutions for Various Fresh Food Categories
This chiller is suitable for display goods like: steak, chicken, lobster, ice cream, frozen fish, dumplings, shrimp and so on.
Combined Island Freezer Brief Introduction
- Temperature range：-18~-22℃
- Compressor Inside of Freezers
- Digital Temperature Controller
- Dixell Controller
- Bright LED Lighting
- Endless Spliced of Length
- Refrigerant: R404A / R290
- Adjustable Leveling Legs
- Max Product Visibility
- Customizable Color Options
Products Details

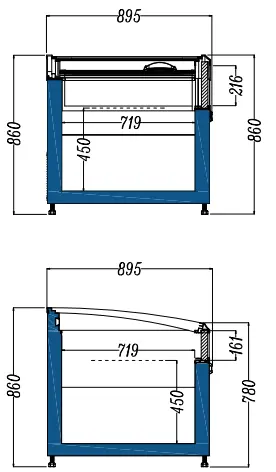

Parameter of Plug-in Lower Vision Windows Combined Island Freezer
| Model | External Dimensions (mm) | Temperature Range(℃) | Effective Volume(L) | Display Area(M2) | Input power(W) | Refrigerant | |||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Height Armrest | ||||||
| XIF-P1309BE | 1320 | 895 | 860 | / | ≤-18 | 255 | 1.03 | 330 | R290 |
| XIF-P1509BE | 1450 | 292 | 1.14 | 353 | R290 | ||||
| XIF-P1809BE | 1865 | 415 | 1.48 | 360 | R290 | ||||
| XIF-P2109BE | 2105 | 485 | 1.66 | 480 | R290 | ||||
| XIF-P2509BE | 2505 | 605 | 1.98 | 510 | R290 | ||||
| XIF-P1909BEMT | 1886 | 415 | 1.47 | 470 | R290 | ||||
Key Features of Plug-in Lower Vision Windows Combined Island Freezer
Benefits
1.Environmentally-friendly R290 refrigerant that has zero depletion.
2.Operating environment class:25℃160%R.H.
3.Electronic temperature controller.
4.Automatic high efficiency hot gas defrost.
Standard Features
1.Exterior painted steel and interior aluminum.
2.Copper fine pipe evaporator by gravity cooling.
3.CFC-free insulation.
4.Leg levelers.
5.All models with front glass.
Optional Features
1.Exterior color option.
2.High duty wheels with brake.
3.Non-refrigeration shelves.
4.Joinable to make a line.
Color Can Be Customized
Customizable exterior and interior colors available to perfectly match your brand’s aesthetic
Accessories
Brand Compressor
High energy efficient
LED Lights
Save energy
Dixell Temperature Controller
Automatic temperature adjustment
Basket
Can easily to divide the products into different part
Thickened Copper Tube
Conveying cooling to Chiller
Danfoss Solenoid Valve
Control and regulation of fluids and gases
Danfoss Expansion Valve
Control the flow of refrigerant

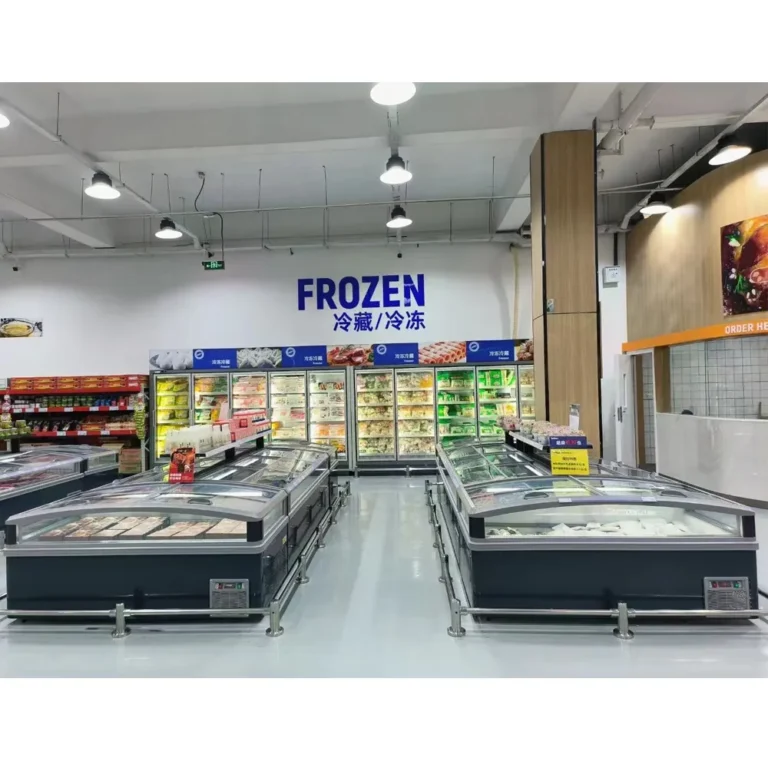

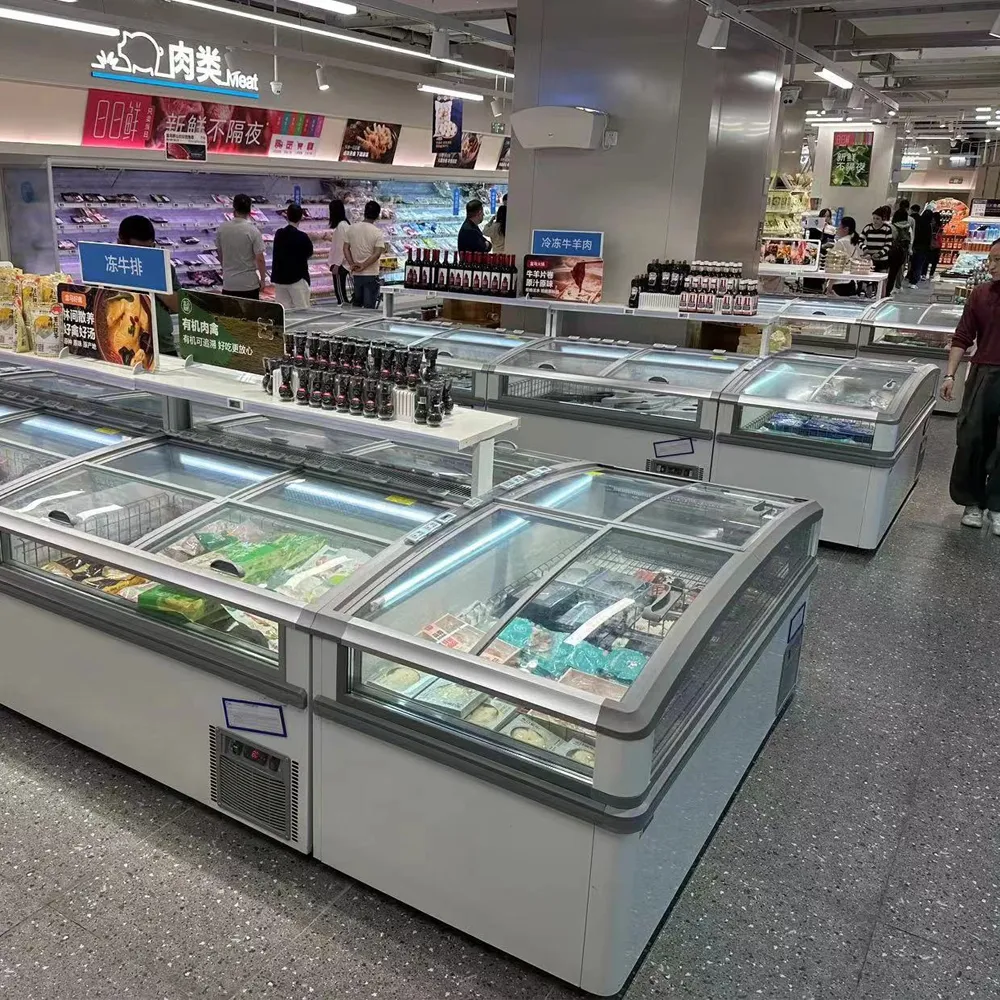

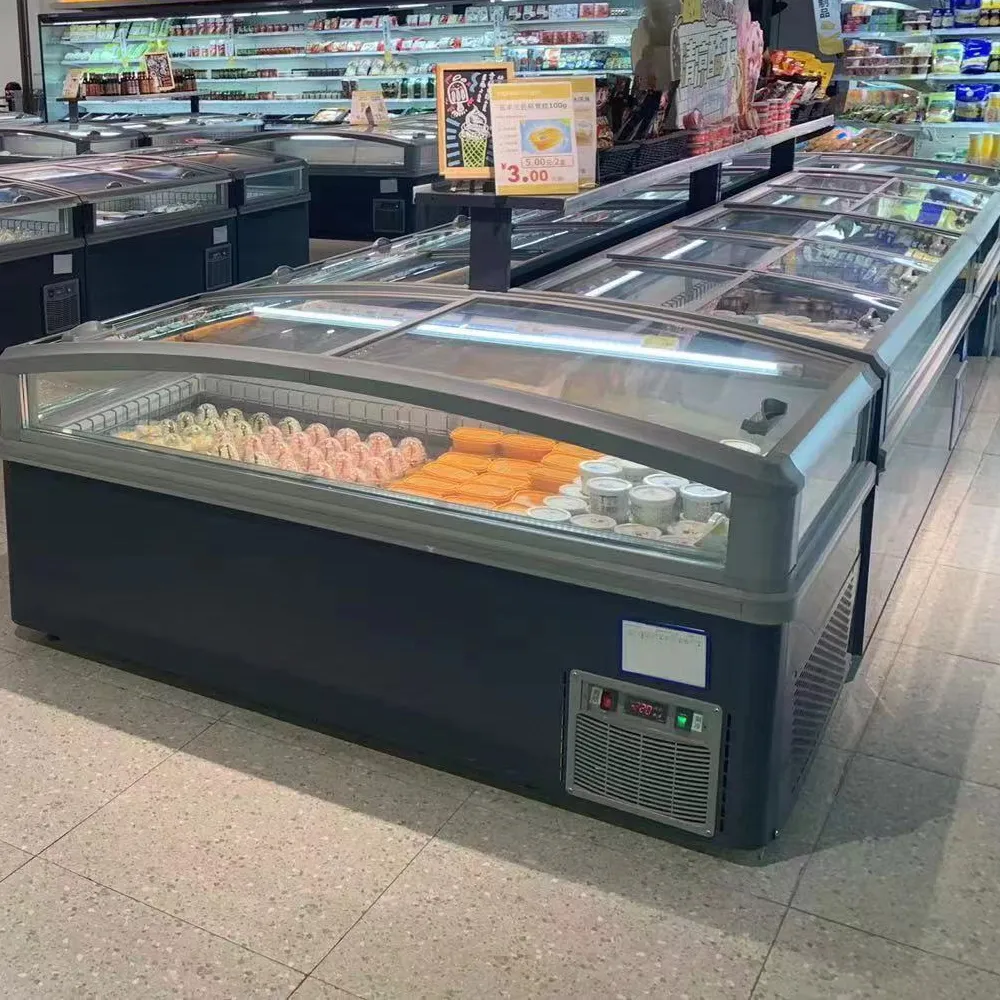

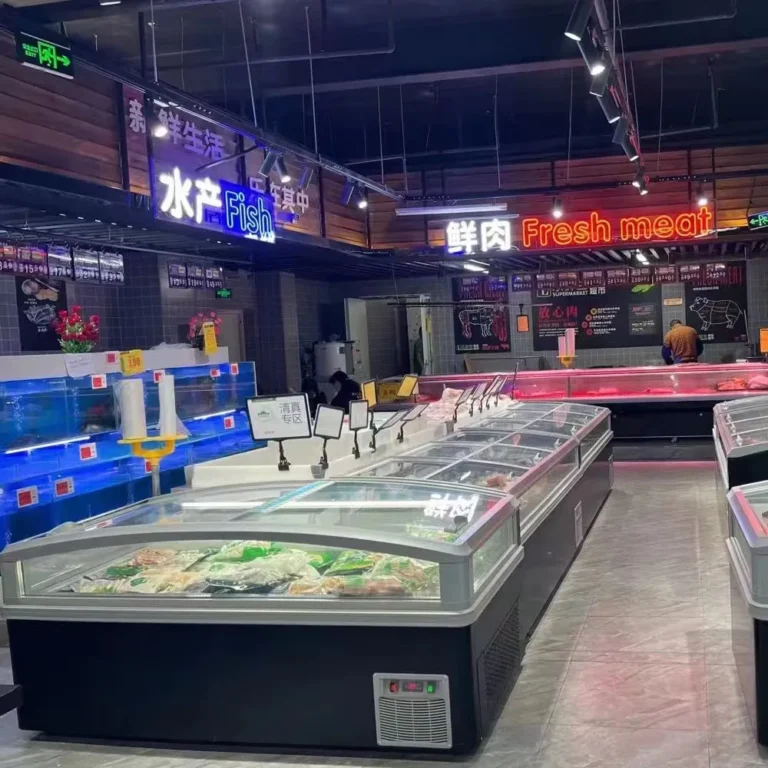

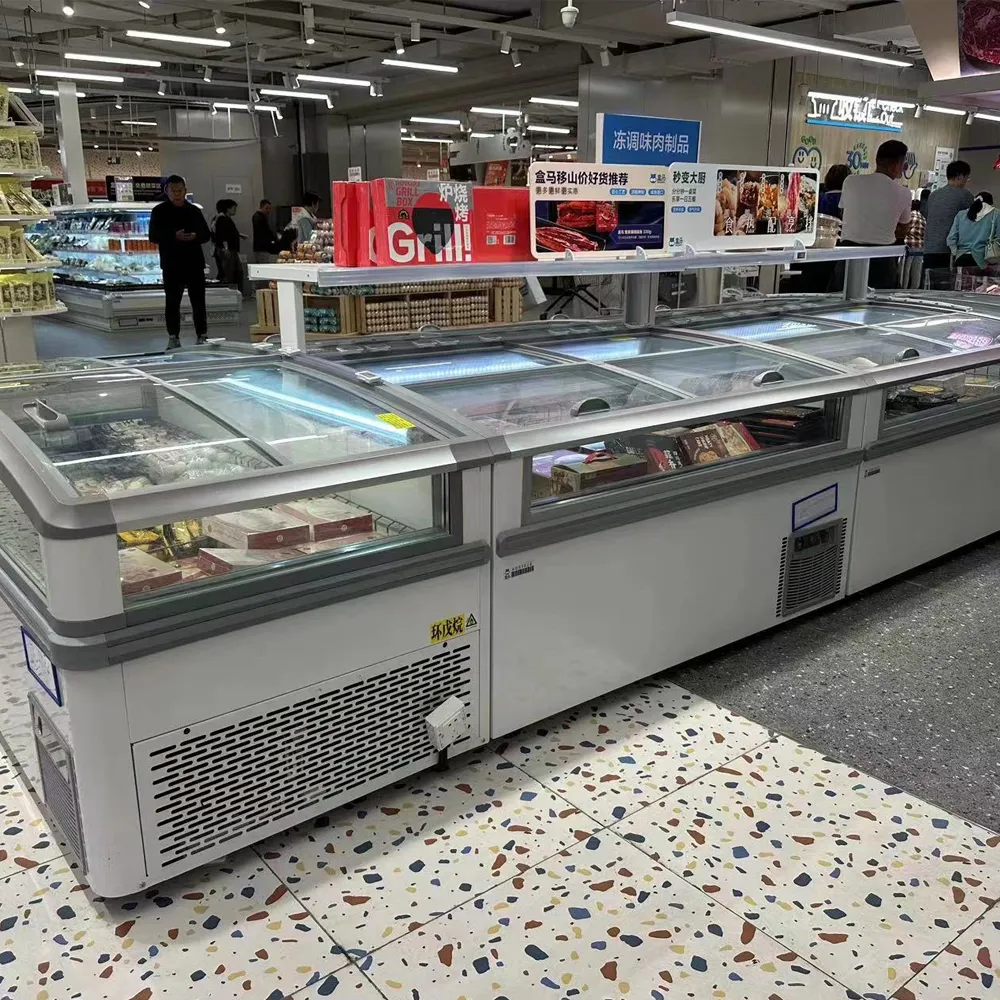

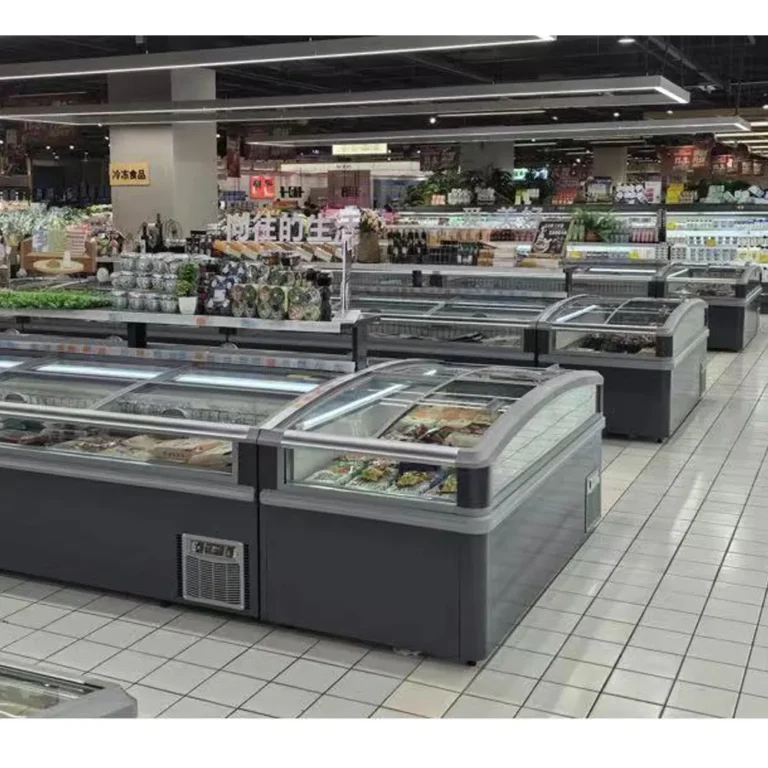

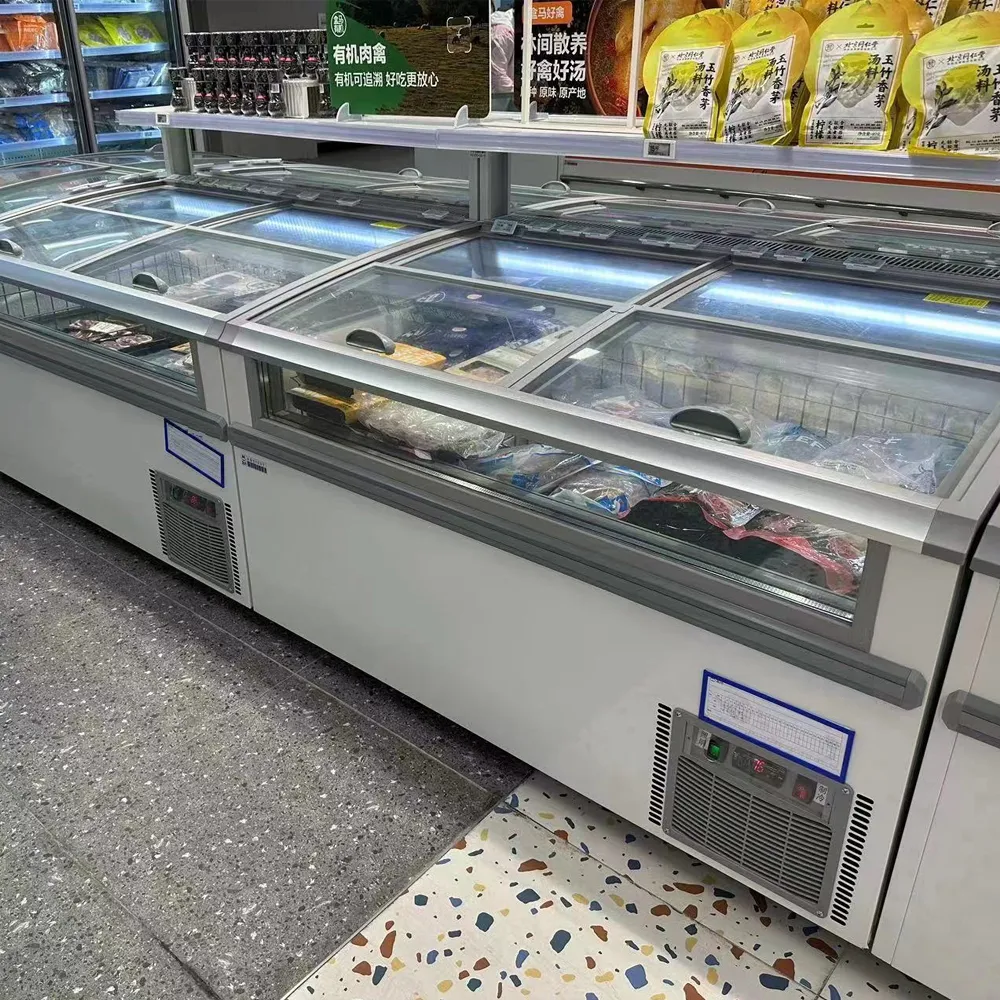

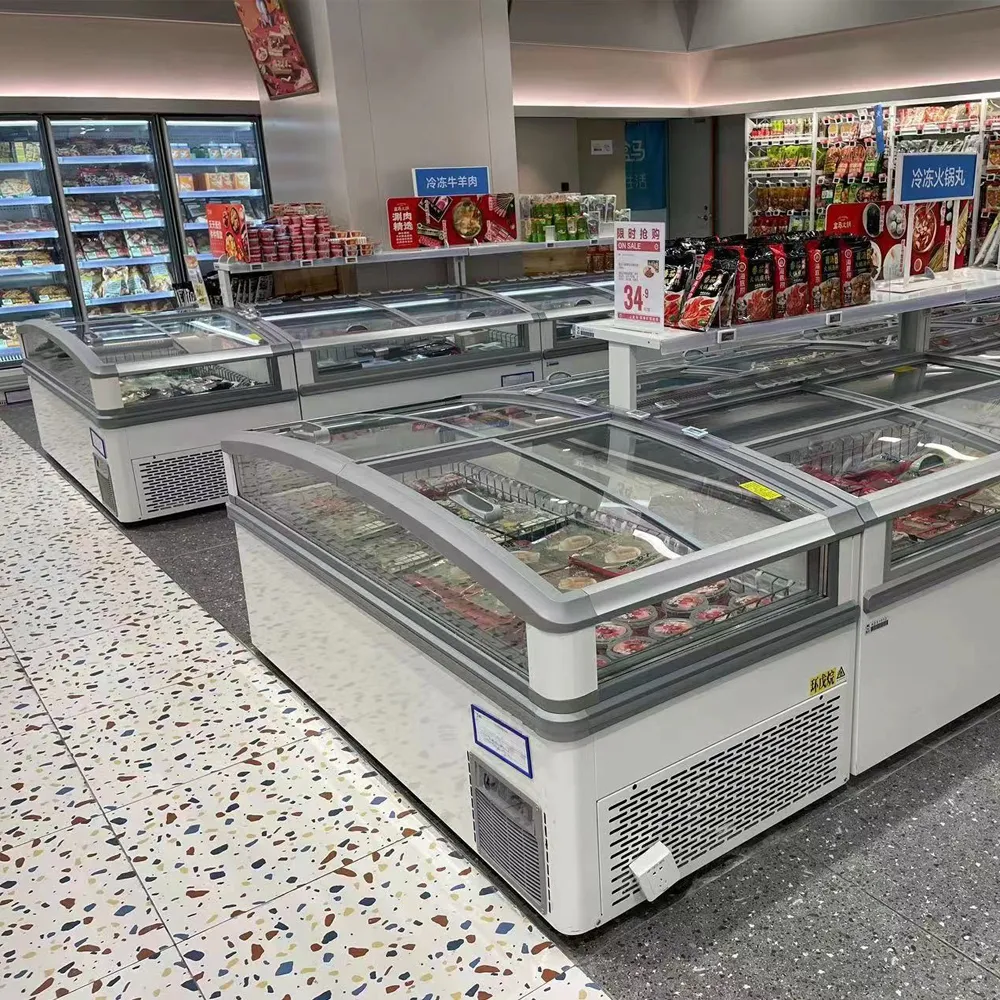

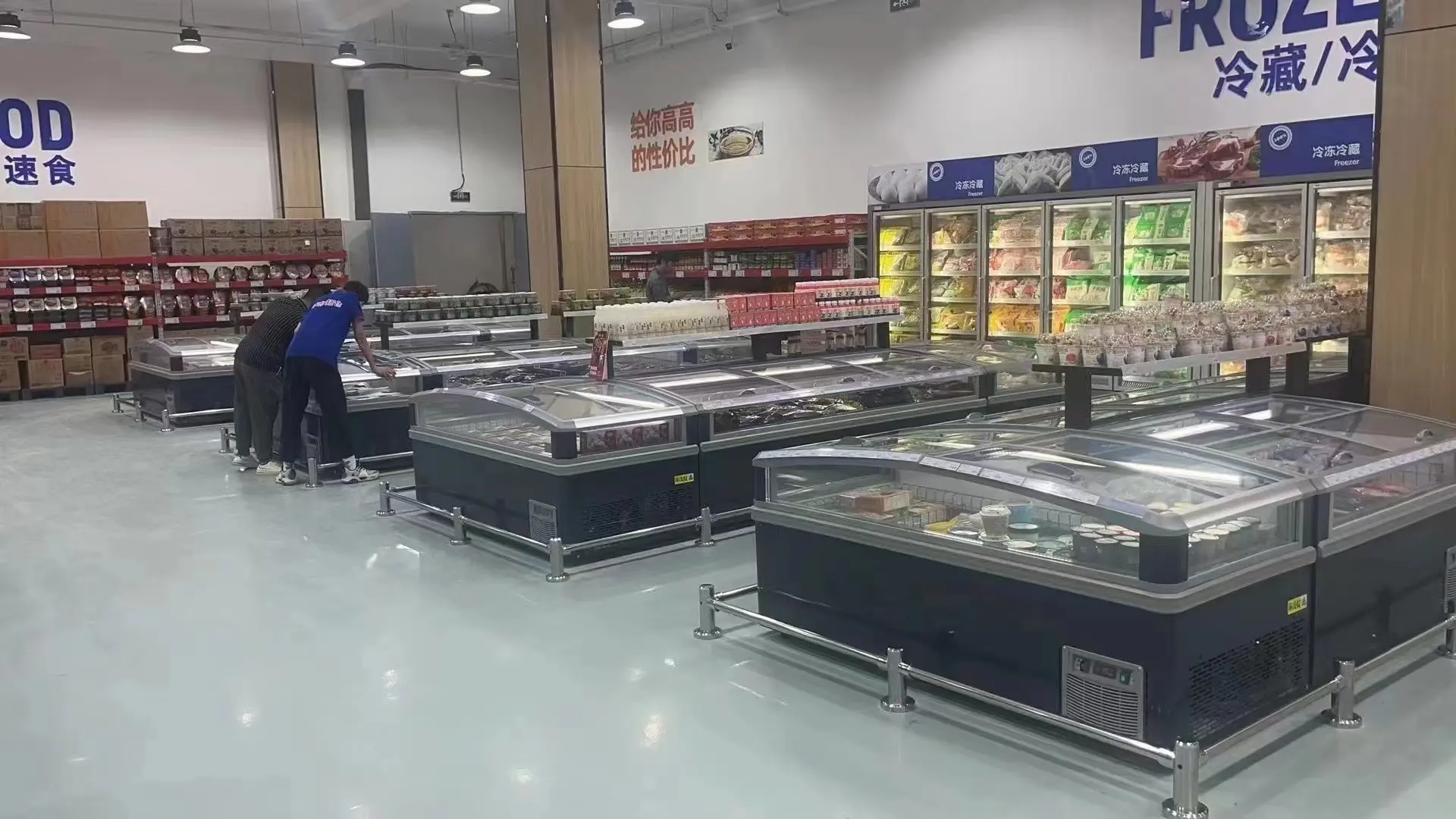

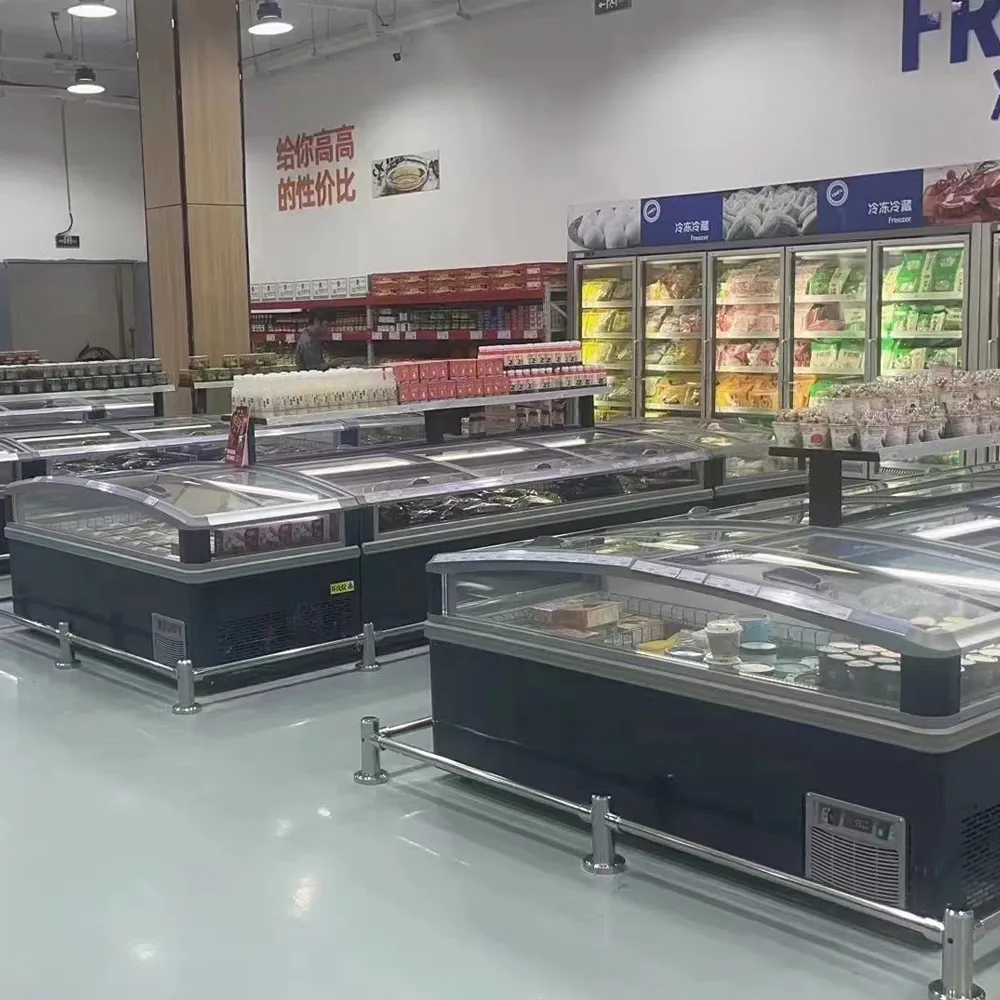

More Pictures Of Plug-in Lower Vision Windows Combined Island Freezer
Packaging&Shipping
FAQ
Q1: What are the specific benefits of the "Small-Window" design for this island freezer?
A: The small-window design is engineered to balance product visibility with thermal efficiency. By reducing the total glass surface area compared to full-glass models, it minimizes heat infiltration and cold air loss. This ensures a more stable internal temperature ($\le$-18°C) and significantly reduces energy consumption, leading to lower operational costs.
Q2: All models share the same width and height. How should I choose the right one for my store?
A: These units feature a standardized width (895mm) and height (860mm) to allow for seamless side-by-side “island” configurations. Your choice should be based on your floor plan:
For compact spaces: The XIF-P1309BE (1320mm length) is ideal.
For maximum volume: The XIF-P2509BE (2505mm length) offers a massive 605L capacity. The consistent dimensions allow you to mix and match different lengths while maintaining a clean, uniform look in your frozen food aisle.
Q3: What are the advantages of using R290 refrigerant in these units?
A: R290 (Propane) is a high-performance, eco-friendly natural refrigerant:
Environmental Impact: It has a Zero Ozone Depletion Potential (ODP) and an extremely low Global Warming Potential (GWP).
Energy Efficiency: R290 has superior thermodynamic properties, allowing the freezer to reach target temperatures faster with lower electricity usage compared to traditional HFC refrigerants.
Q4: Why does model XIF-P1909BEMT have a higher input power (470W) than the XIF-P1809BE (360W)?
A: While both models offer a 415L volume, the P1909BEMT is a “high-performance” variant. The increased wattage (470W) typically indicates a more powerful compressor or enhanced components designed for rapid temperature recovery. This model is recommended for high-traffic stores where the lids are opened frequently or for environments with higher ambient temperatures.
Q5: What maintenance is required to ensure the freezer maintains -18°C?
A: To ensure peak performance, we recommend:
Airflow: Ensure the external ventilation grills are not blocked by stock or dust.
Loading Line: Do not fill products above the internal “load line” to allow proper cold air circulation.
Placement: Keep the unit away from direct sunlight, HVAC vents, or heat-generating appliances to prevent the compressor from overworking.
