Plug-in High Vision Windows Combined Island Freezer Type-B
Versatile Solutions for Various Fresh Food Categories
This chiller is suitable for display goods like: steak, chicken, lobster, ice cream, frozen fish, dumplings, shrimp and so on.
Combined Island Freezer Brief Introduction
- Temperature range：-18~-22℃
- Compressor Inside of Freezers
- Digital Temperature Controller
- Dixell Controller
- Bright LED Lighting
- Endless Spliced of Length
- Refrigerant: R404A / R290
- Adjustable Leveling Legs
- Max Product Visibility
- Customizable Color Options
Products Details

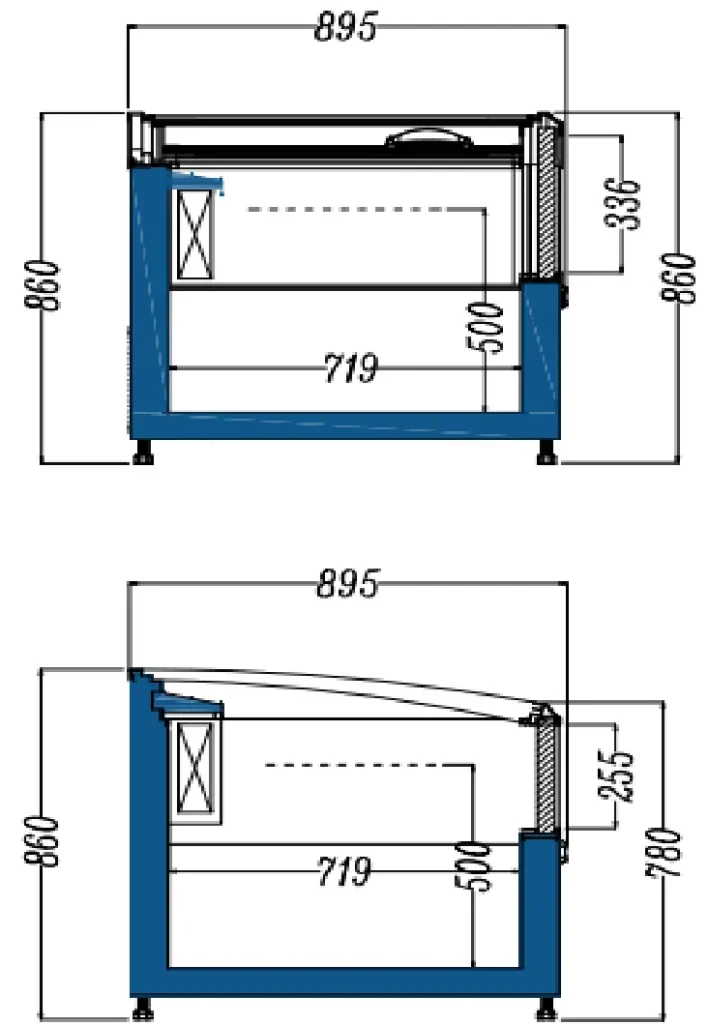

Parameter of Plug-in High Vision Windows Combined Island Freezer Type-B
| Model | External Dimensions (mm) | Temperature Range(°C) | Effective Volume(L) | Display Area(M2) | Input power(W) | Refrigerant | |||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Height Armrest | ||||||
| XIF-P1309B | 1320 | 895 | 860 | / | ≤ -18 | 460 | 1.23 | 431 | R290 |
| XIF-P1509B | 1450 | 510 | 1.36 | 431 | R290 | ||||
| XIF-P1809B | 1865 | 666 | 1.76 | 448 | R290 | ||||
| XIF-P2109B | 2105 | 750 | 1.98 | 460 | R290 | ||||
| XIF-P2509B | 2505 | 950 | 2.35 | 613 | R290 | ||||
| XIF-P1909BMT | 1886 | 650 | 1.82 | 460 | R290 | ||||
Key Features of Plug-in High Vision Windows Combined Island Freezer Type-B
Benefits
1.Environmentally-friendly R290 refrigerant that has zero depletion.
2.Operating environment class:25℃160%R.H.
3.Electronic temperature controller.
4.Automatic high efficiency hot gas defrost.
Standard Features
1.Exterior painted steel and interior aluminum.
2.Copper fine pipe evaporator by gravity cooling.
3.CFC-free insulation.
4.Leg levelers.
5.All models with front glass.
Optional Features
1.Exterior color option.
2.High duty wheels with brake.
3.Non-refrigeration shelves.
4.Joinable to make a line
Color Can Be Customized
Customizable exterior and interior colors available to perfectly match your brand’s aesthetic
Accessories
Brand Compressor
High energy efficient
LED Lights
Save energy
Dixell Temperature Controller
Automatic temperature adjustment
Basket
Can easily to divide the products into different part
Thickened Copper Tube
Conveying cooling to Chiller
Danfoss Solenoid Valve
Control and regulation of fluids and gases
Danfoss Expansion Valve
Control the flow of refrigerant

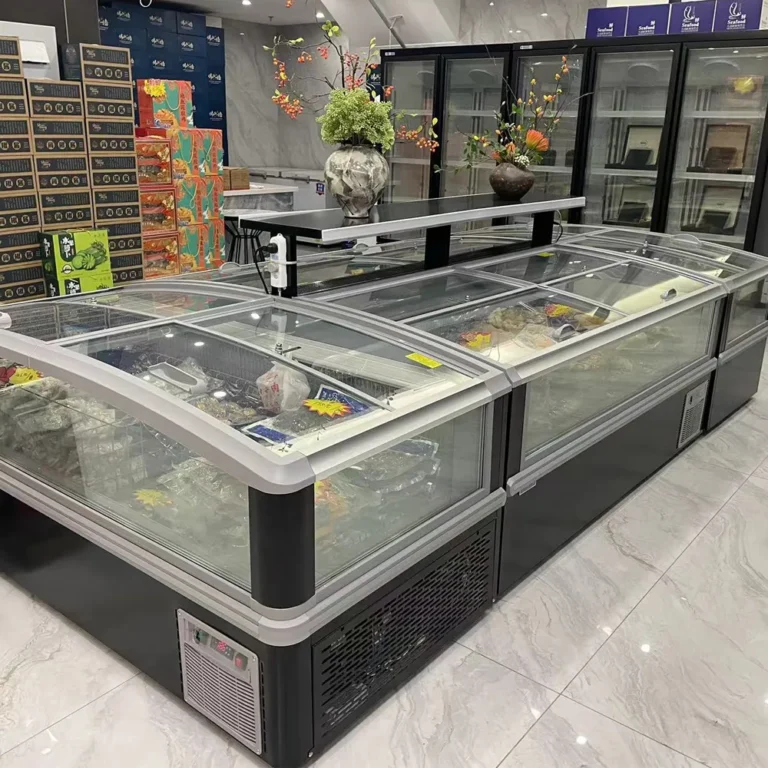

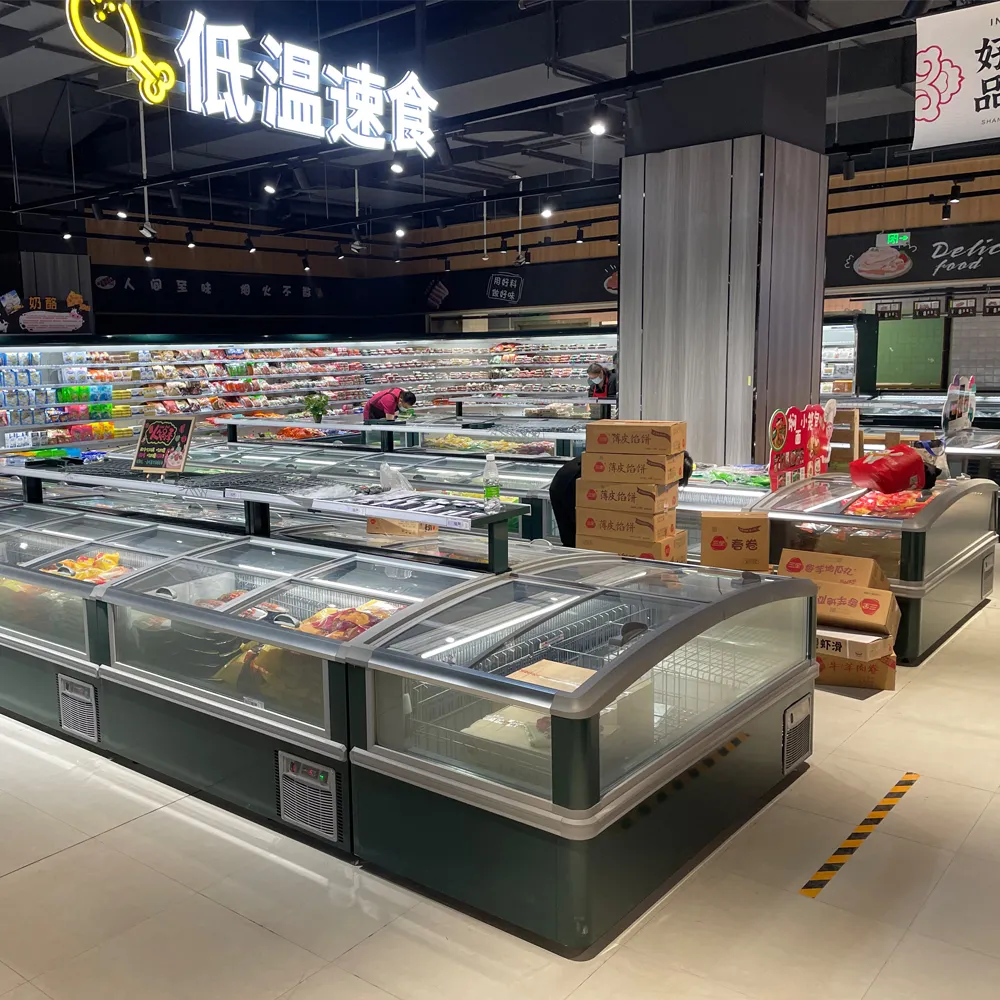

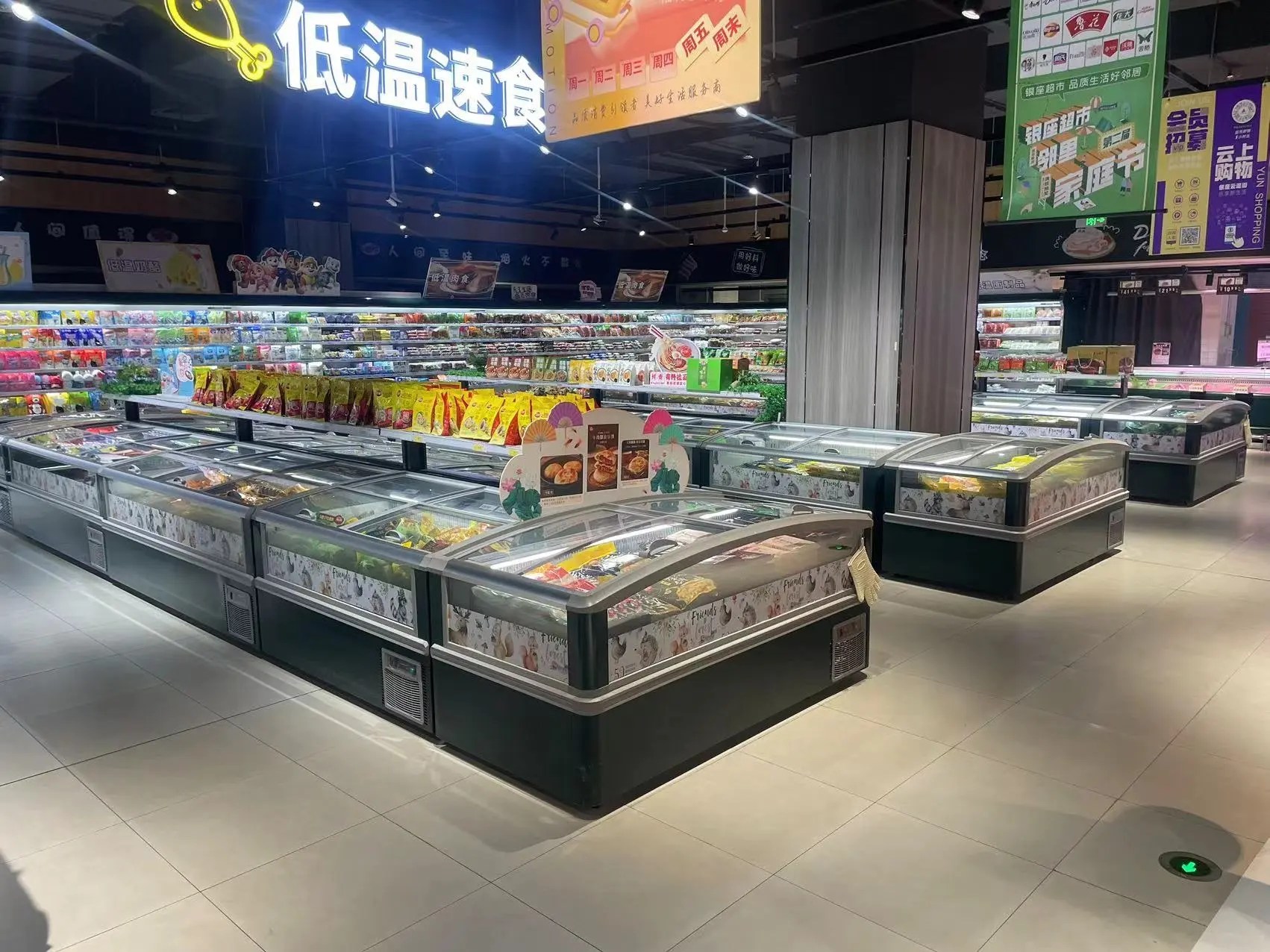

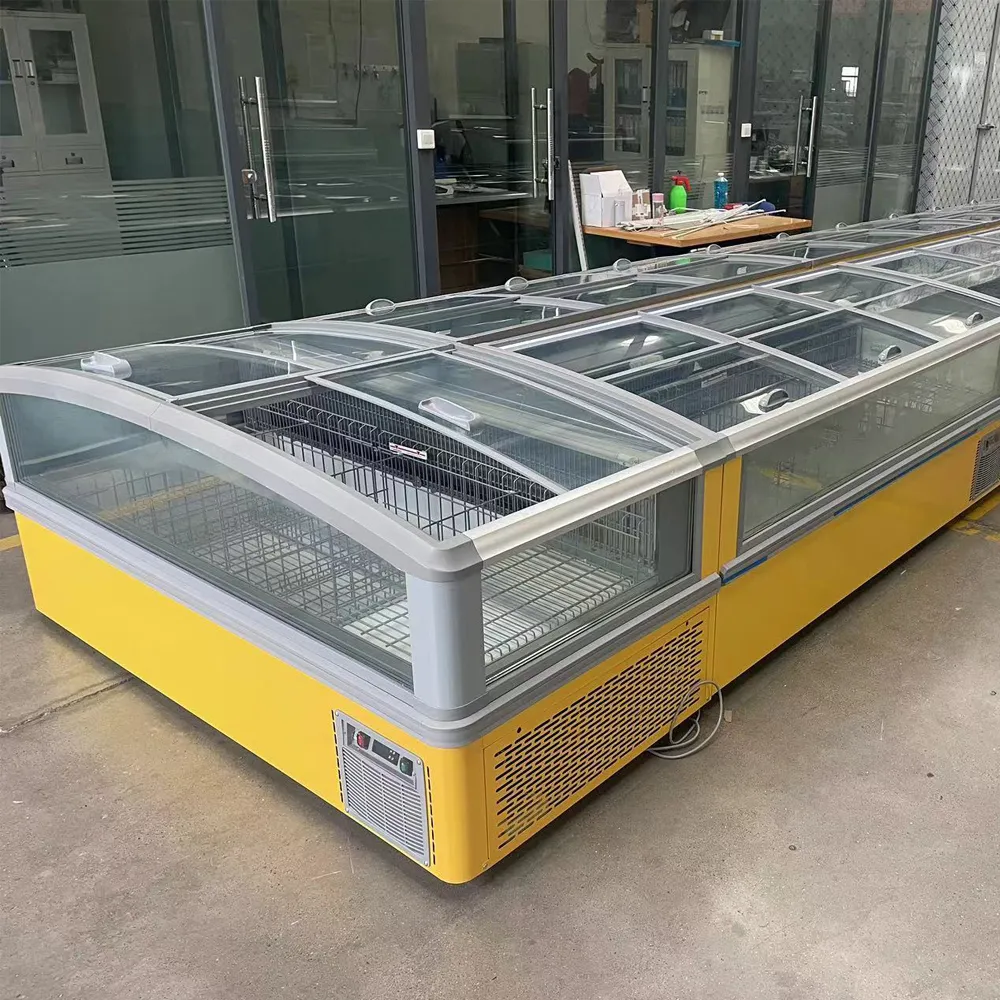

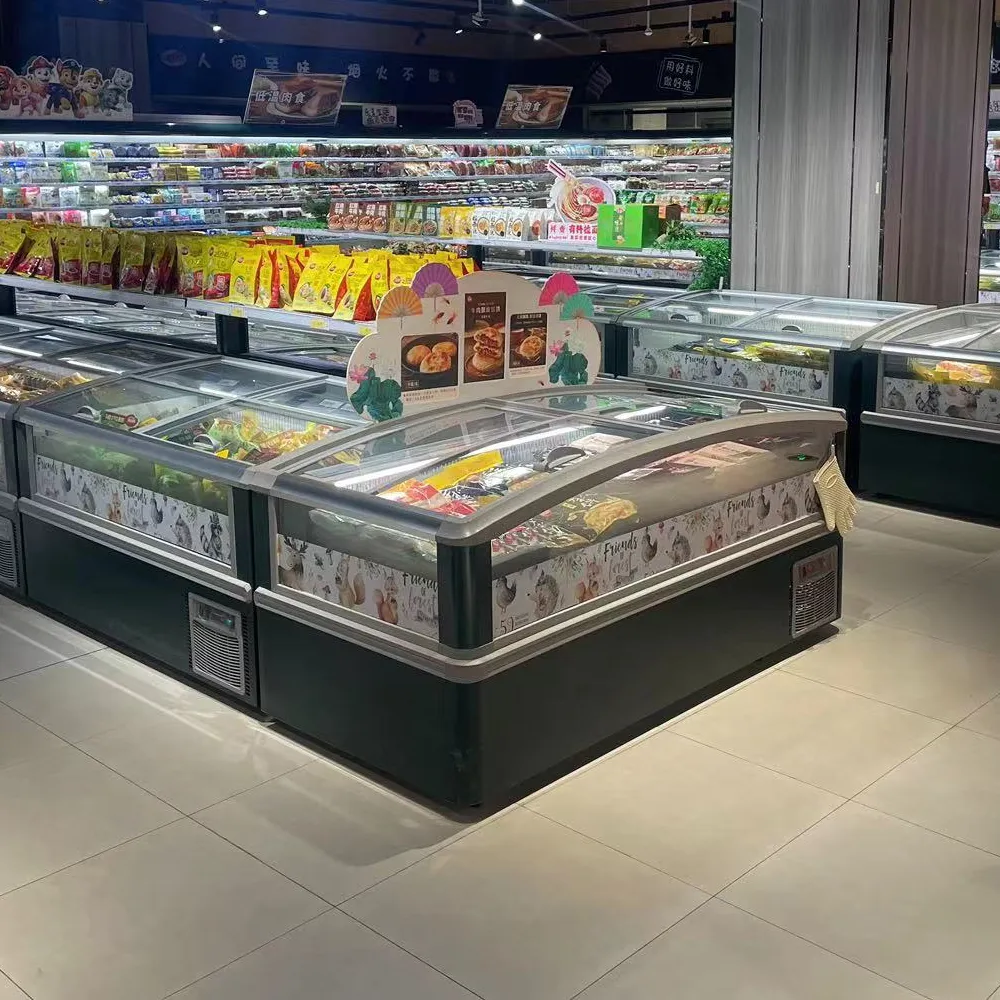

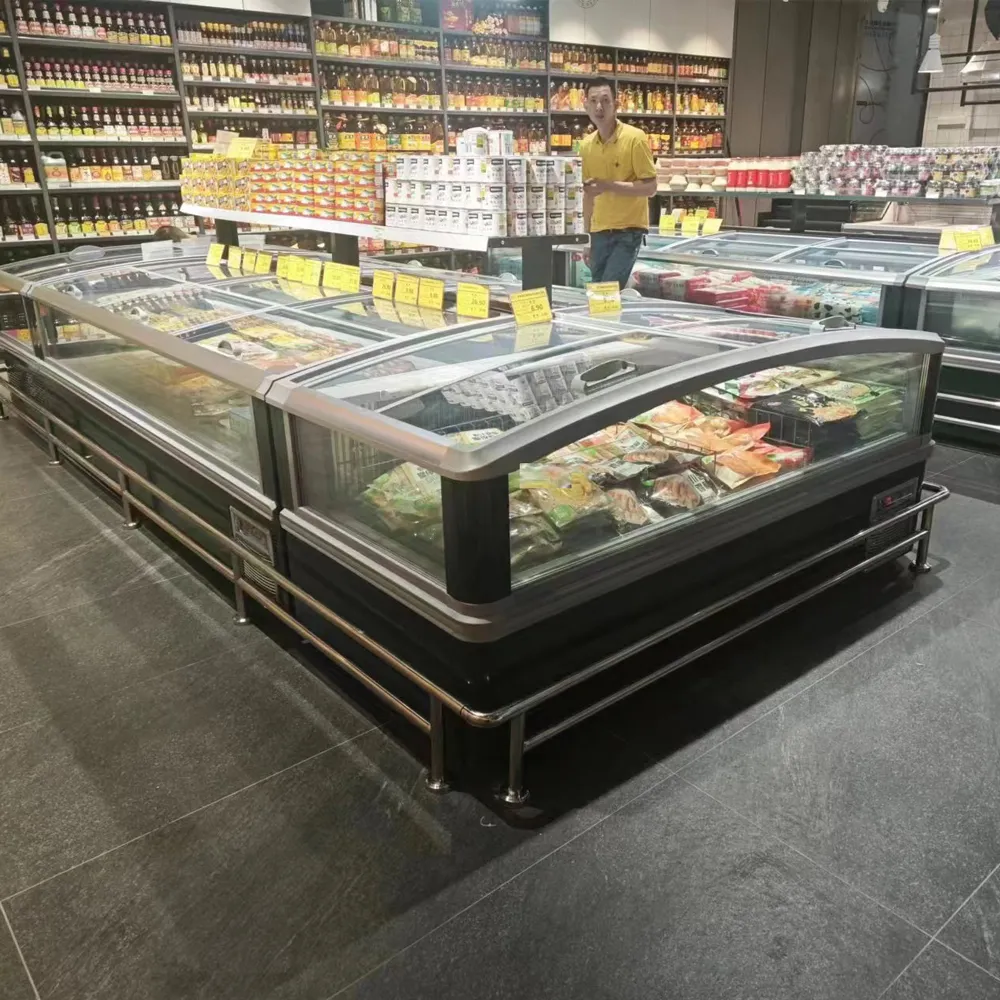

More Pictures Of Plug-in High Vision Windows Combined Island Freezer Type-B
Packaging&Shipping
FAQ
Q1: What are the advantages of the "High-Vision" design for retail display?
A: The “High-Vision” design features an expanded glass viewing area that maximizes product visibility from multiple angles. Combined with a display area of up to 2.35 m² (for the XIF-P2509B), it enhances the visual impact of frozen goods like premium ice cream or seafood, helping to drive impulse purchases in high-traffic supermarket zones.
Q2: How flexible is this series for different supermarket layouts?
A: Extremely flexible. All models share a standardized width (895mm) and height (860mm). This uniformity allows retailers to create “back-to-back” or “line-up” configurations using different lengths (from 1.3m to 2.5m). Whether you are designing a central island or a long aisle, these units can be combined seamlessly to fit your floor plan.
Q3: Why is R290 refrigerant used across the entire series?
A: R290 (Propane) is a high-performance, eco-friendly refrigerant.
Energy Efficiency: It offers superior thermodynamic properties, allowing the 2.1m model (XIF-P2109B) to operate at just 460W.
Sustainability: It has zero Ozone Depletion Potential (ODP) and extremely low Global Warming Potential (GWP), ensuring your business complies with international environmental regulations while reducing long-term energy costs.
Q4: What makes the XIF-P1909BMT model stand out in this lineup?
A: The XIF-P1909BMT is a specialized variant. With a length of 1886mm and a display area of 1.82 m², it provides a strategic balance between footprint and capacity. It is often preferred for specific “End-Cap” placements or as a high-efficiency bridge unit within a larger island combination.
Q5: Can these units maintain stable temperatures during peak store hours?
A: Yes. These freezers are engineered for deep-freeze performance, maintaining a consistent temperature of ≤ -18°C. Even with the “High-Vision” glass surface, the efficient insulation and calibrated input power (ranging from 431W to 613W) ensure that frozen food quality remains uncompromised during heavy customer traffic and frequent use.
